Rako WDA-600 600W 0-10V Dali Dsi Digital dimming unit for use with RAK8-MB
£134.40
Tax included
£112.00 Tax excl.

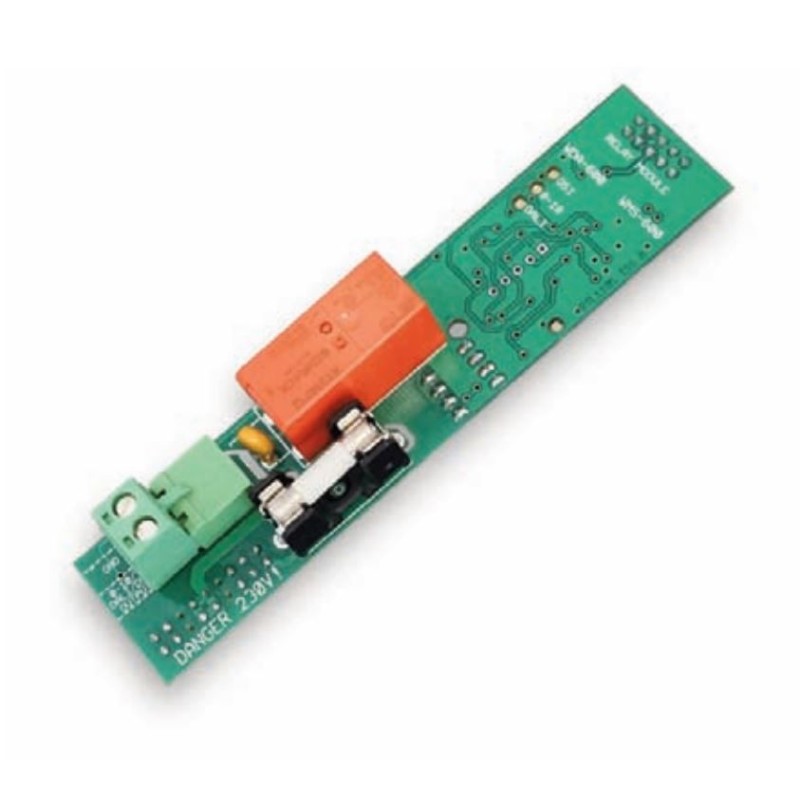

Rako WDA-600 600W Digital dimming unit for use with RAK8-MB
The WDA-600 is a pluggable universal 0-10v, DSI & DALI digital dimmer for use with RAK8-MB.
The unit is plugged directly into one of the slots on the RAK8- MB.
Features both digital control output for 0-10V, DSI and DALI and a switched mains output for up to 600VA of fittings.
Rako WDA-600 600W Digital dimming unit for use with RAK8-MB
The WDA-600 combines with the RAK8-MB to provide a centralised lighting control system that can integrate with either wireless or wired Rako products.
The control signal output type (0-10V/DSI/DALI) is selectable via the Rasoft Pro software.
The selected output is indicated by an LED on the pluggable module.
Switched mains output comes from the channel output on the RAK8-MB, digital outputs are from a pluggable terminal block on the daughterboard itself.
As with all RAK8 pluggable modules no memory is stored on the WDA600.
All programming is stored on the motherboard meaning the WDA600 can be swapped with any other module without the need to be reprogrammed.
For other fitting types please refer to the datasheet for: WMT-400 WML-400 WMS-600
WDA-600
Specific References
- EAN13
- 3423122014156
