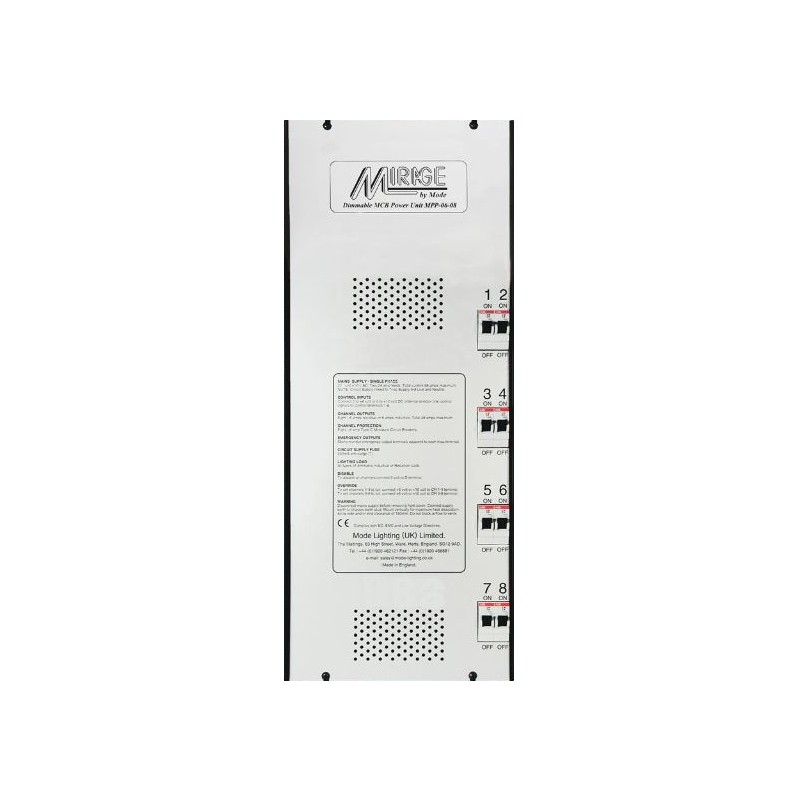

Mode SPP-06-08 Mirage Scenario Plus Unit (Scenario Processor & MP-06-08 Package)

Reference: SPP-06-08

Condition: New product

SPP-06-08 Mirage Scenario Plus Unit (Scenario Processor & MP-06-08 Package)

Share on Facebook!
Send to a friend

Send to a friend

Mode SPP-06-08 Mirage Scenario Plus Unit (Scenario Processor & MP-06-08 Package)

SPP-06-08 Mirage Scenario Plus Unit (Scenario Processor & MP-06-08 Package)

- EIGHT DIMMABLE CHANNELS of 6 Amps resistive or inductive loads, four being configurable as switched to suit non dimmable or 1-10 Volt HF fluorescent loads.
- CIRCUIT PROTECTION individual 8 Amp Type C MCB for each channel.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Product Category Feature	Lighting Control Systems
Condition	new
Availability	available for order
Brand	Mode
Manufacturer	Mode
Number of Dimmer Pack Channels	8 Channels
Dimmer Type	Leading Edge and 0-10V Optional
Current Per Channel	6 Amps Per Channel
Dimmer Control Type	Wired Control
RCBO - Individual Circuit Protection	No

SPP-06-08 Mirage Scenario Plus Unit (Scenario Processor & MP-06-08 Package)

- EIGHT DIMMABLE CHANNELS of 6 Amps resistive or inductive loads, four being configurable as switched to suit non dimmable or 1-10 Volt HF fluorescent loads.
- CIRCUIT PROTECTION individual 8 Amp Type C MCB for each channel.
- EMERGENCY OUTPUTS fixed live MCB protected outputs for maintained emergency supplies.
- BUILT IN SCENARIO PROCESSOR.
- PROGRAMMABLE SCENE levels and fade rates.
- CONTROL INPUT Scenario bus, DMX 512 and RS232.
- SUPPLY INPUT 230/240 Volt. 50-60Hz. 2 x 24 Amp maximum (100 - 125 Volt option available).
- INTERNAL TEST SWITCH (2) to enable all eight channels to be locally tested to full on.
- TRIAC with screw fixings can be removed for servicing.
- CONDUIT CABLE ENTRIES (eight) 25mm diameter suitable for use with conduits and trunking.
- COMPLIES with EC EMC and Low Voltage Directives (CE).
- BLACK ALUMINIUM case with silver anodised front panel.
- MODE products are guaranteed for two years.
