Mode TP-06-09 Tiger Dimmer Pack Dimmable Power Unit Leading Edge Dimming (9 Channels of 6 Amps, Inductive 6 Amps)

£2,613.60
Tax included
£2,178.00 Tax excl.

TP-06-09 Tiger Dimmer Pack Dimmable Power Unit Leading Edge Dimming (9 Channels of 6 Amps, Inductive 6 Amps)

- 9 x 6A Dimmable Power Unit.
- THREE PHASE or Single Phase Power Supply.
- DIN RAIL Mounted Wiring Terminals.
- MINIATURE Circuit Breaker Protection

Quantity

TP-06-09 Tiger Dimmer Pack Dimmable Power Unit (9 Channels of 6 Amps, Inductive 6 Amps)

Tiger Power Units offer simple scene setting lighting control in a standard, compact, quick to install, contractor friendly package which can be configured and programmed onsite by the installer or end user without the need for specialist programming tools or training. Available in four different circuit and power configurations, units can be linked together creating flexible lighting controls for restaurants, bars, spas, boardrooms, theatres and offices.

- 9 x 6A Dimmable Power Unit.
- THREE PHASE or Single Phase Power Supply.
- DIN RAIL Mounted Wiring Terminals.
- MINIATURE Circuit Breaker Protection.
- LEADING edge dimming control.
- SWITCHING and 1-10V Dimming.
- SCENE Setting Control.
- DMX512 and RS232 Digital Control
- COOL OPERATION Under Full Load.
- ALARM or Emergency Override.
- ANALOGUE Control Inputs.
- COMPLIES with EC EMC and Low Voltage
- Directives (CE).
- MODE products are guaranteed for two years.

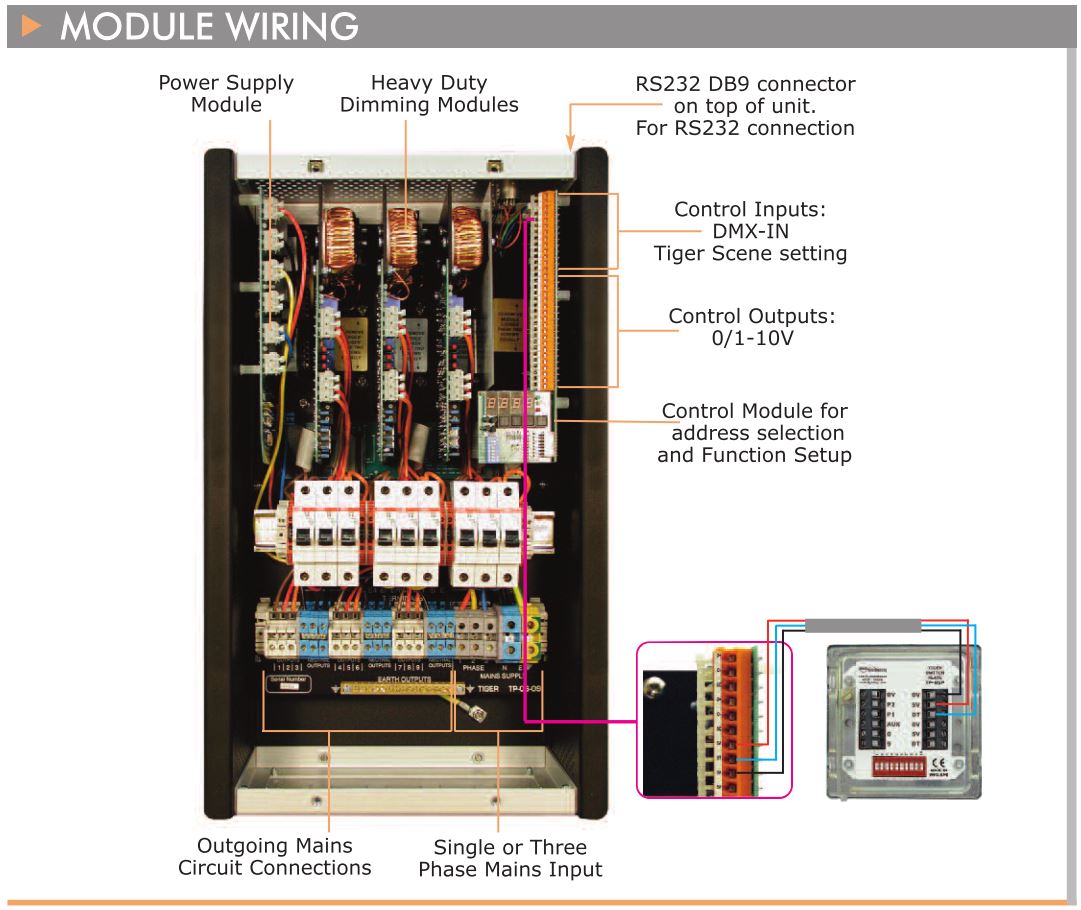

Mode-Lighting-Dimmer-Pack-TP-06-09-Wirin


Input Voltage 200-250 Volt 50-60 Hz. Single or Three phase options
Input Current Up to 60A SPN or 20A TPN
Control Fuse 20mm x 5mm 500mA HRC Ceramic Fuse (3)
Circuit Outputs 9 x 6 amp resistive (6 amp inductive)
Output Type Leading Edge Dimming, switching and 1-10V output
Circuit Protection Individual 8 amp Type C Miniature Circuit Breaker
Control Input TIGER Scene Setting, RS232, DMX, 0-10V

Conduit Entries Base entry. Five 32mm couplers or removable panel.
Dimensions H 534 mm x W 322 mm x D 160 mm.
Fixing Centres H 452 mm x W 302 mm.
Weight 11 kgs.
Packed Size H 600 mm x W 400 mm x D 240 mm.
Packed Weight 12 kgs.
Standards EMC Emissions EN55014, EMC Immunity EN61547,
Voltage fluctuation EN61000-3-3, Safety EN60439-1 and EN60950

TP-06-09

Data sheet

Product Category Feature
Lighting Control Systems
Price Unit
Each
Condition
new
Availability
in stock
Brand
Mode
Manufacturer
Mode
Number of Dimmer Pack Channels
9 Channels
Dimmer Type
Leading Edge and 0-10V Optional
Current Per Channel
6 Amps Per Channel
Dimmer Control Type
Wired Control
RCBO - Individual Circuit Protection
No
