Mode TP-03-06-TE Tiger Dimmer Pack Trailing Edge Dimmable Power Unit 6x3A - 6 Channels of 3 Amps with Inductive 3 Amps
search
  • Mode TP-03-06-TE Tiger Dimmer Pack Trailing Edge Dimmable Power Unit 6x3A - 6 Channels of 3 Amps with Inductive 3 Amps

Mode TP-03-06-TE Tiger Dimmer Pack Trailing Edge Dimmable Power Unit 6x3A - 6 Channels of 3 Amps with Inductive 3 Amps

£2,624.40
Tax included
£2,187.00 Tax excl.

Mode TP-03-06-TE Tiger Dimmer Pack Trailing Edge Dimmable Power Unit 6x3A - 6 Channels of 3 Amps with Inductive 3 Amps
- 6 x 3A Dimmable Power Unit
- Trailing Edge Dimming good for LED Minimum Loads
- Three Phase or Single Phase Input
- Din Rail Mounted Wiring Terminals
- Miniature Circuit Breaker Protection

Quantity

Mode TP-03-06-TE Tiger Dimmer Pack Trailing Edge Dimmable Power Unit 6x3A - 6 Channels of 3 Amps with Inductive 3 Amps

Tiger Power Units offer simple scene setting lighting control in a standard, compact, quick to install, contractor friendly package which can be configured and programmed onsite by the installer or end user without the need for specialist programming tools or training. Available in four different circuit and power configurations, units can be linked together creating flexible lighting controls for restaurants, bars, spas, boardrooms, theatres and offices.

- 6 x 3A Dimmable Power Unit
- Trailing Edge Dimming good for LED Minimum Loads
- Three Phase or Single Phase Input
- Din Rail Mounted Wiring Terminals
- Miniature Circuit Breaker Protection
- Operates All Dimmable Lighting Loads
- 12 x 10Aand 18 x 6AUnits also available
- Mirage Scenario Architectural Control
- DMX512 and RS232 Digital Control
- Variable Level Switched Outputs
- Cool Operation Under Full Load
- Alarm or Emergency Override
- Analogue Control Inputs
- Guaranteed for Two Years

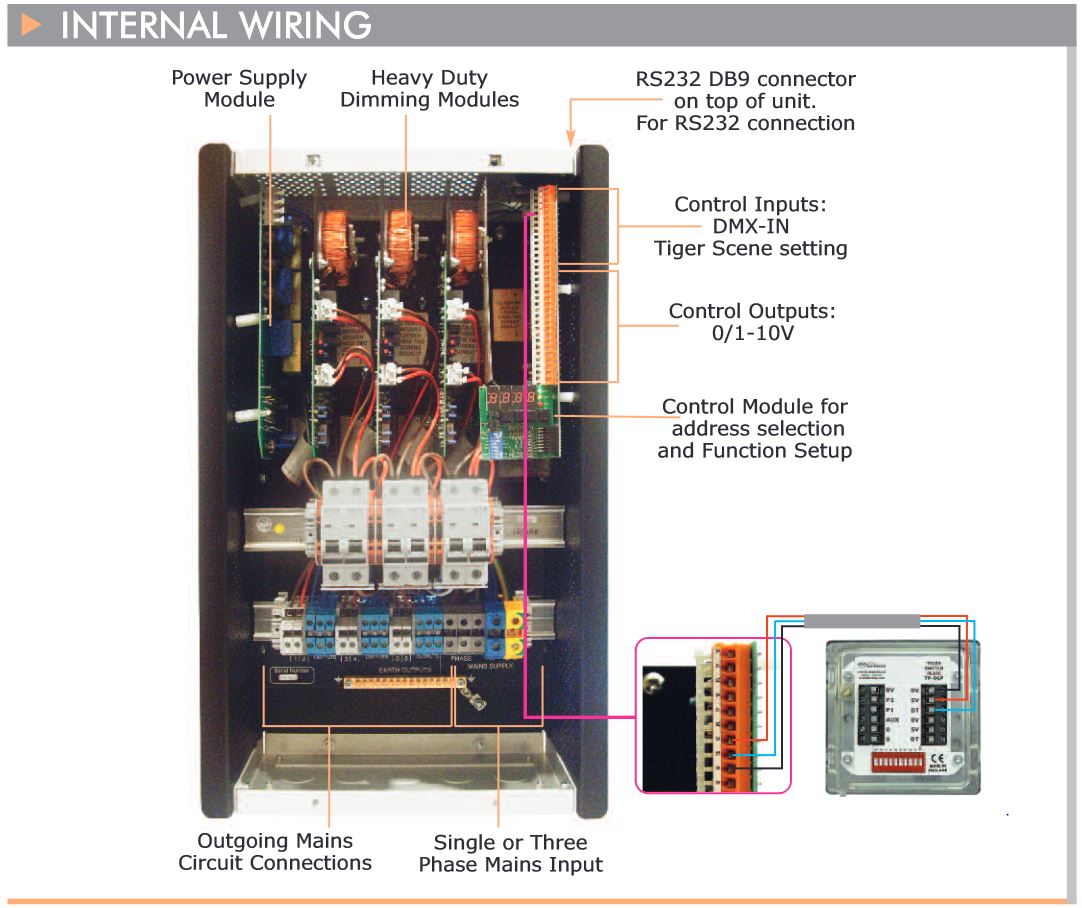

Mode-Lighting-Dimmer-Pack-TP-10-06-Wirin

TP-03-06-TE

Data sheet

Product Category Feature
Lighting Control Systems
Condition
new
Availability
available for order
Brand
Mode
Manufacturer
Mode
Number of Dimmer Pack Channels
6 Channels
Dimmer Type
Trailing Edge and 0-10V Optional
Current Per Channel
3 Amps Per Channel
Dimmer Control Type
Wired Control
RCBO - Individual Circuit Protection
No

Specific References

EAN13
3412805627837
