Mode Mirage Dimmable Power Unit MP-06-08 (8 Channels of 6 Amps, Inductive 6 Amps)

£1,267.20
Tax included
£1,056.00 Tax excl.

Mode Mirage Dimmable Power Unit MP-06-08 (8 Channels of 6 Amps, Inductive 6 Amps)

Key Features

  • EIGHT DIMMABLE CHANNELS of 6 Amps resistive or inductive loads.
  • CIRCUIT PROTECTION individual 8 Amp Type C MCB for each channel.
  • EMERGENCY OUTPUTS fixed live MCB protected outputs for maintained emergency supplies.

Quantity

Mode Mirage Dimmable Power Unit MP-06-08 (8 Channels of 6 Amps, Inductive 6 Amps)

Key Features

  • EIGHT DIMMABLE CHANNELS of 6 Amps resistive or inductive loads.
  • CIRCUIT PROTECTION individual 8 Amp Type C MCB for each channel.
  • EMERGENCY OUTPUTS fixed live MCB protected outputs for maintained emergency supplies.
  • LED CHANNEL MONITOR to indicate the operation of each output.
  • CONTROL INPUT suitable for use with 0-6 Volt or 0-10 Volt controllers.
  • SUPPLY INPUT 230/240 Volt. 50-60Hz. 2 x 24 Amp maximum (100 - 125 Volt option available).
  • INTERNAL TEST SWITCH (2) to enable all eight channels to be locally tested to full on.
  • TRIAC with screw fixings can be removed for servicing.
  • EXTERNAL SUPPLY low voltage D.C. for use with remote dimmers and ancillary equipment.
  • CONDUIT CABLE ENTRIES (eight) 25mm diameter suitable for use with conduits and trunking.
  • COMPLIES with EC EMC and Low Voltage Directives (CE).
  • BLACK ALUMINIUM case with silver anodised front panel.
  • MODE products are guaranteed for two years.

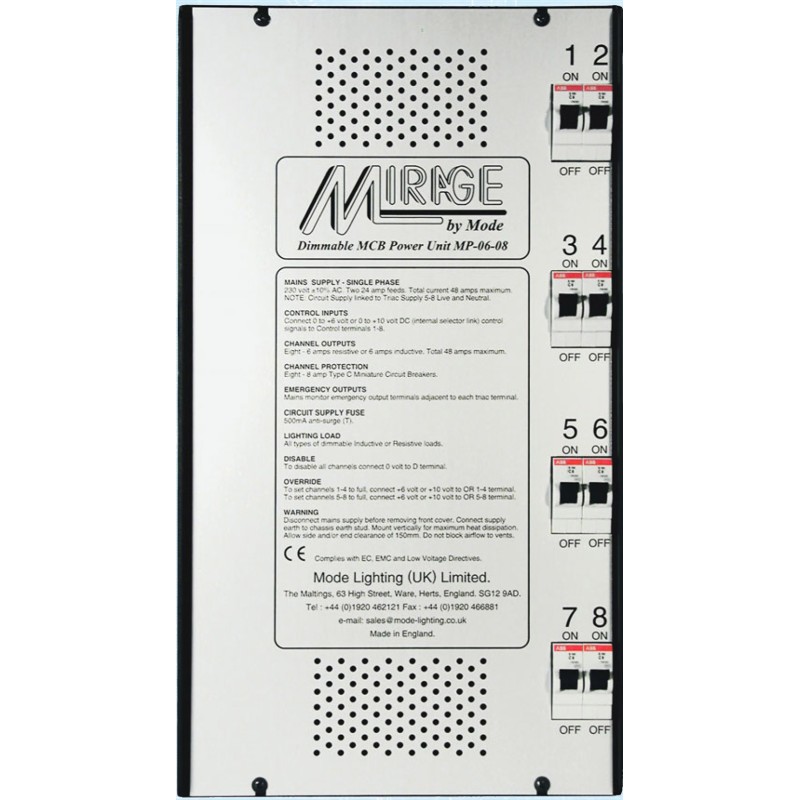

The Mirage MP-06-08 is a wall mounting, eight channel, Dimmable Power Unit designed for the reliable, leading edge, mains dimming of resistive or inductive lighting loads. Each of the eight circuits is rated at 6 Amps resistive or inductive load and is protected by a Type C Miniature Circuit Breaker (MCB). The control input can be either 0-6 Volt or 0-10 Volt signals from the Mode control systems. The outputs can also be overridden by a latching contact input. The MP-06-08 is mounted in a black aluminum case with a natural anodised silver front panel. All Mode products are guaranteed for a two year period.

MP-06-08

Data sheet

Product Category Feature
Lighting Control Systems
Price Unit
Each
Condition
new
Availability
in stock
Brand
Mode
Manufacturer
Mode
Number of Dimmer Pack Channels
8 Channels
Dimmer Type
Leading Edge and 0-10V Optional
Current Per Channel
6 Amps Per Channel
Dimmer Control Type
Wired Control

Specific References

EAN13
3412973090662
