Mode Mirage Dimmable Power Unit MP-10-04 (4 Channels of 10 Amps, Inductive 9 Amps)

£871.20
Tax included
£726.00 Tax excl.

Mode Mirage Dimmable Power Unit MP-10-04 (4 Channels of 10 Amps, Inductive 9 Amps)

Key Features

  • FOUR DIMMABLE CHANNEL of 10 Amps resistive or 9 Amps inductive load.
  • CIRCUIT PROTECTION individual 10 Amp Type C MCB for each channel.
  • EMERGENCY OUTPUTS fixed live MCB protected outputs for maintained emergency supplies.

Quantity

Mode Mirage Dimmable Power Unit MP-10-04 (4 Channels of 10 Amps, Inductive 9 Amps)

Key Features

  • FOUR DIMMABLE CHANNEL of 10 Amps resistive or 9 Amps inductive load.
  • CIRCUIT PROTECTION individual 10 Amp Type C MCB for each channel.
  • EMERGENCY OUTPUTS fixed live MCB protected outputs for maintained emergency supplies.
  • LED CHANNEL MONITOR(s) to indicate the operation of each output.
  • ANALOGUE CONTROL INPUT suitable for use with 0-6 Volt or 0-10 Volt controllers.
  • SUPPLY INPUT 230/240 volt, 50-60Hz, 40amp maximum.(100-125 Volt option available)
  • INTERNAL TEST SWITCH to enable unit to be tested to full on.
  • TRIAC with screw fixings can be removed for servicing.
  • EXTERNAL SUPPLY low voltage D.C. for use with remote dimmers and ancillary equipment.
  • CONDUIT CABLE ENTRIES (eight) 25mm diameter suitable for use with conduits and trunking.
  • OVERRIDE TEST SWITCH to enable unit to be locally tested to full on.
  • COMPLIES with EC EMC and Low Voltage Directives (CE).
  • BLACK ALUMINIUM case with silver anodised front panel.
  • MODE products are guaranteed for two years.

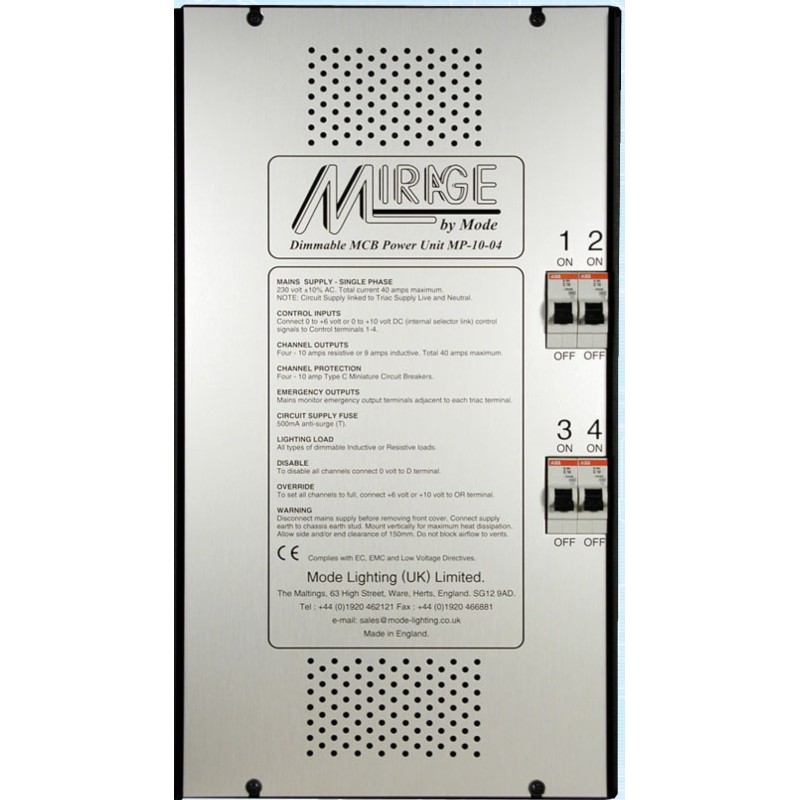

The Mirage MP-10-04 is a wall mounting, four channel, Dimmable Power Unit designed for the reliable, leading edge, mains dimming of tungsten resistive and LV inductive lighting loads. Each of the four circuits is rated at 10 amps resistive or 9 amps inductive load and is protected by a Type C Miniature Circuit Breaker (MCB). The control input can be either 0-6 Volt or 0-10 Volt signals from the Mode control systems. The outputs can also be overridden by a latching contact input. The MP-10-04 is mounted in a black aluminum case with a natural anodised silver front panel. All Mode products are guaranteed for a two year period.

MP-10-04

Data sheet

Product Category Feature
Lighting Control Systems
Price Unit
Each
Condition
new
Availability
in stock
Brand
Mode
Manufacturer
Mode
Number of Dimmer Pack Channels
4 Channels
Dimmer Type
Leading Edge and 0-10V Optional
Current Per Channel
10 Amps Per Channel
Dimmer Control Type
Wired Control

Specific References

EAN13
3412972784593
