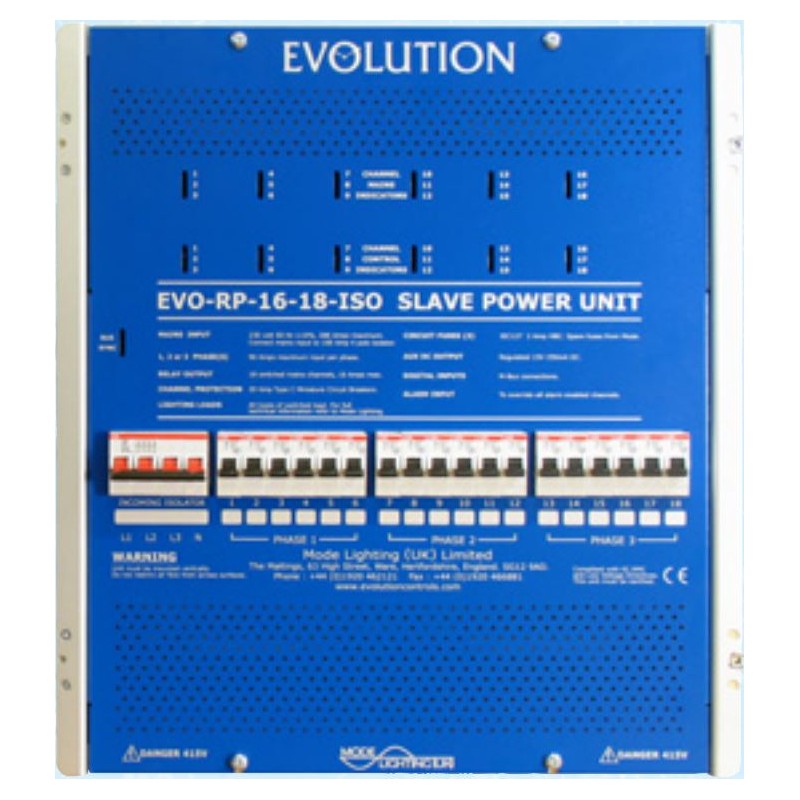

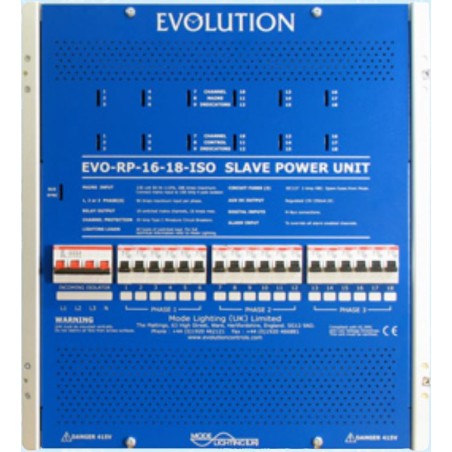

Mode EVS-RP-16-18 Evolution Slave Relay Pack (18 Channels of 16 Amps Switching Only)

Reference: EVS-RP-16-18

Condition: New product

Mode EVS-RP-16-18 Evolution Slave Relay Pack (18 Channels of 16 Amps Switching Only)

- EIGHTEEN CHANNELS of 16 Amps resistive or inductive loads, switching.

- FULLY CONFIGURABLE switching ripple.

- INTELLIGENT SELF MONITORING power supply.

- INDIVIDUAL CHANNEL OVERRIDE switches for fast installation and testing

More details

Share on Facebook!
Send to a friend

Send to a friend

Mode EVS-RP-16-18 Evolution Slave Relay Pack (18 Channels of 16 Amps Switching Only)

Mode EVS-RP-16-18 Evolution Slave Relay Pack (18 Channels of 16 Amps Switching Only)

- EIGHTEEN CHANNELS of 16 Amps resistive or inductive loads, switching.

- FULLY CONFIGURABLE switching ripple.

- INTELLIGENT SELF MONITORING power supply.

- INDIVIDUAL CHANNEL OVERRIDE switches for fast installation and testing

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Product Category Feature	Lighting Control Systems
Price Unit	Each
Condition	new
Availability	in stock
Brand	Mode
Manufacturer	Mode
Number of Dimmer Pack Channels	18 Channels
Dimmer Type	Switched Channels Only
Current Per Channel	16 Amps Per Channel
Dimmer Control Type	Wired Control

Mode EVS-RP-16-18 Evolution Slave Relay Pack (18 Channels of 16 Amps Switching Only)Mode EVS-RP-16-18 Evolution Slave Relay Pack (18 Channels of 16 Amps Switching Only)

- EIGHTEEN CHANNELS of 16 Amps resistive or inductive loads, switching. Mode-RP-18-ISO-slave-power-unit-18-chann

- FULLY CONFIGURABLE switching ripple.

- INTELLIGENT SELF MONITORING power supply.

- INDIVIDUAL CHANNEL OVERRIDE switches for fast installation and testing.

- CIRCUIT PROTECTION: individual 20 Amp Type C MCB for each channel.

- EMERGENCY OUTPUTS (1 per phase) fixed live MCB protected outputs for maintained emergency supplies.

- THREE-PHASE incoming mains and neutral Isolator.

- SUPPLY INPUT 200-250 Volt 50-60 Hz. Three phase.

- OPTIONAL Door.

- COMPLIES with EC EMC and Low Voltage Directives (CE).

- MODE products are guaranteed for two years.

The Evolution slave switching pack builds on the quality and reliability of Mode product designs and offers high specification power management in a mechanically, electrically and thermodynamically designed unit.

Evolution is a versatile and highly configurable architectural control system designed for both lighting and peripheral management. Evolution is uniquely adaptable, making it an ideal choice for use in a vast number of applications including modern smart homes, shopping centres, restaurants, hotels, cruise ships, boardrooms, hospitality suites and offices.

All Mode products are guaranteed for a two year period.
