32 inch 3D TV - 32Enable3D 32 Inch 9 Lens Lenticular Holographic 3D Display Auto-Stereoscopic Enabled Display Screen

£5,994.00

£4,995.00 Tax excl.

Quantity

Ask a Quote

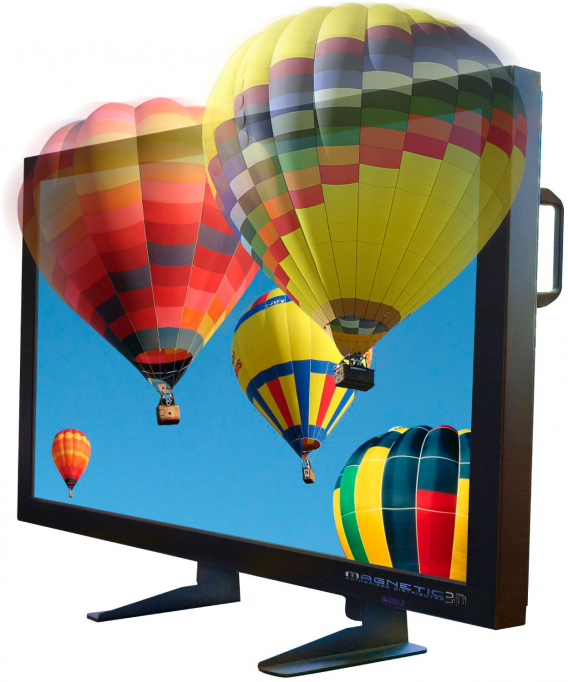

32 inch Holographic 3D TV3D_Screen.png

- 9 Lens Lenticular Autostereoscpic 3D Display



32" Auto-stereoscopic 3D LCD Screen

The new Enabl3D range represents the cutting edge of ‘glasses-free’ 3D screen technology.

Using the latest generation of auto-stereoscopic (or ‘lenticular’) LCD technology, Magnetic Enabl3D screens allow incredible resolution and outstanding 3D large format displays without the need for any special glasses, eyewear, headgear or projectors.

Providing the ultimate in eye-catching, crowd-stopping displays, media and digital signage; video images and content appear to fly out of the screen and float in mid air!

The effect truly has to be seen to be believed.

The proprietary overlay and industry-leading 3D render software combine to deliver truly stunning visual effects - all without
the need for viewers to wear 3D glasses...

Features:
• Glasses-free 3D screen technology
• Auto-stereoscopic, Full-HD 1080p LCD screens
• 9-point multi-viewing 3D zones
• 176° ultra-wide viewing angle
• 50,000 hours viewing time
• Durable and discreet design and build
• IRFM technology helps prevent ‘screen burn’
• Configurable Inputs/Outputs
• Active ambient light sensor for energy saving control

How does 3D Auto-stereoscopic screen technology work?..
Also known as ‘lenticular’, this glasses-free system is regarded as the ideal long-term 3D solution. A sheet of transparent, cylindrical lenses (known as ‘lenticules’) is fixed to a professional-grade,
high definition LCD screen. These lenticules reflect light in specific, acute angles to generate different images to each eye.

Part Numbers / Screen Sizes:
• 22Enable3D: 22” 3D Stereoscopic Enabled Display Screen
• 26Enable3D: 26” 3D Stereoscopic Enabled Display Screen
• 32Enable3D: 32” 3D Stereoscopic Enabled Display Screen
• 42Enable3D: 42” 3D Stereoscopic Enabled Display Screen
• 42Enable3DOF: 42” 3D Stereoscopic Enabled Open-frame Display Screen
• 47Enable3D: 47” 3D Stereoscopic Enabled Display Screen
• 55Enable3D: 55” 3D Stereoscopic Enabled Display Screen
• 57Enable3D: 57” 3D Stereoscopic Enabled Display Screen

Specifications:
 Description:    22Enabl3D    26Enabl3D    32Enabl3D    42Enabl3DOF    42Enabl3D    47Enabl3D    55Enabl3D    57Enbal3D
 Display Diagonal  22”  26"  32"  42"  42"  47”  55”  57”
 Optimum Viewing  Distance  1.2 - 3 metres  1.8 - 3.7 metres  1.8 - 3.7 metres  2.4 - 6 metres  3 - 6 metres  3.7 - 7.3 metres  4 - 7.8 metres  4.8 - 8.5 metres
 Perceived 3D  Depth  0.3 metres  0.45 metres  0.5 metres  0.6 metres  0.6 metres  0.7 metres  0.8 metres  0.98 metres
 Aspect Ratio:  16:9  16:9  16:9  16:9  16:9  16:9  16:9  16:9
 Display Resolution  (WXGA)  1680 x 1050  1920 x 1200  1366 x 768  1920 x 1080  1920 x 1080  1920 x 1080  1920 x 1079  1920 x 1080
 Dimensions
 (W x H x D)		  503 x 418 x  240mm  608 x 440 x  161mm  793 x 483 x  94mm  1018 x 610 x  124mm  1022 x 615 x  124mm  1136 x 686 x  126mm  1265 x 835 x  135mm  1358 x 793 x  154mm
 Weight  7.8kg  9kg  14kg  28kg  30kg  40kg  55kg  136kg

Additional Specifications:
 Description:    22Enabl3D    26Enabl3D    32Enabl3D    42Enabl3DOF    42Enabl3D    47Enabl3D    55Enabl3D    57Enbal3D
 3D Viewing Angle  (Left/Right):  50° / 50°  50° / 50°  50° / 50°  50° / 50°  50° / 50°  50° / 50°  50° / 50°  50° / 50°
 2D Viewing Angle:  170° / 160°  176° / 176°  176° / 176°  176° / 176°  176° / 176°  176° / 176°  176° / 176°  176° / 176°
 Brightness:  280 nits  350 cd/m²  450 cd/m²  660 cd/m²  661 cd/m²  400 cd/m²  TBD  450 cd/m²
 Contrast Ratio:  1000:1  1500:1  3000:1  4000:1  4000:1  4000:1  TBD  1800:1
 Response Time:  5ms  8ms  6.5ms  6.5ms  6.5ms  6.5ms  6.5ms  6.5ms
 Supported Colours:  TBD  16.7M colours  16.7M colours  16.7M colours  16.7M colours  16.7M colours  16.7M colours  16.7M colours
 Horizontal/Vertical  Frequency:  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz  35~65KHz /  56~75KHz  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz  30~80KHz /  56~75KHz
 Input/Output  Connectors:  VGA/DVI  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video  DVI / VGA /  Component / AV /  S-video
 Mount Type:  100 x 100mm  VESA  200 x 200mm  VESA  200 x 200mm  VESA  -  200 x 200mm  VESA  200 x 200mm  VESA  200 x 200mm  VESA  200 x 200mm  VESA
 Power Supply:  12v DC  230v AC  230v AC  230v AC  230v AC  230v AC  230v AC  230v AC
 Normal Operation  Power:  <50W  <168W  <168W  <230W  <230W  <250W  <250W  300W
 Source Auto  Detect:  -  Yes  Yes  Yes  Yes  Yes  Yes  Yes
 Operating  Temperature:  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C  5° ~ 40°C

Please allow for 20 working days delivery from date of purchace for goods to arrive.

3D-32-LCD

Data sheet

Resolution
1080p
Video Wall
No
Autostereoscopic 3D Display
3D Lenticular Glasses Free Display
Product Category Feature
LED Displays
Price Unit
Each
Condition
new
Availability
available for order
Brand
Akwil
Manufacturer
Akwil
Screen Size
32"

Specific References

EAN13
3412044105837
