dbx ZonePro 1260m 12x6 Digital Zone Processor
The ZonePRO 1260m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus.
The 1260m features a total of 12 inputs and six outputs. Inputs include six balanced mic/line switchable terminal block inputs, four mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for up to two digital channels. Hardware-controlled microphone gain allows adjustment of microphone gain per channel.
The 1260m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanentlyavailable on each output zone.
A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.

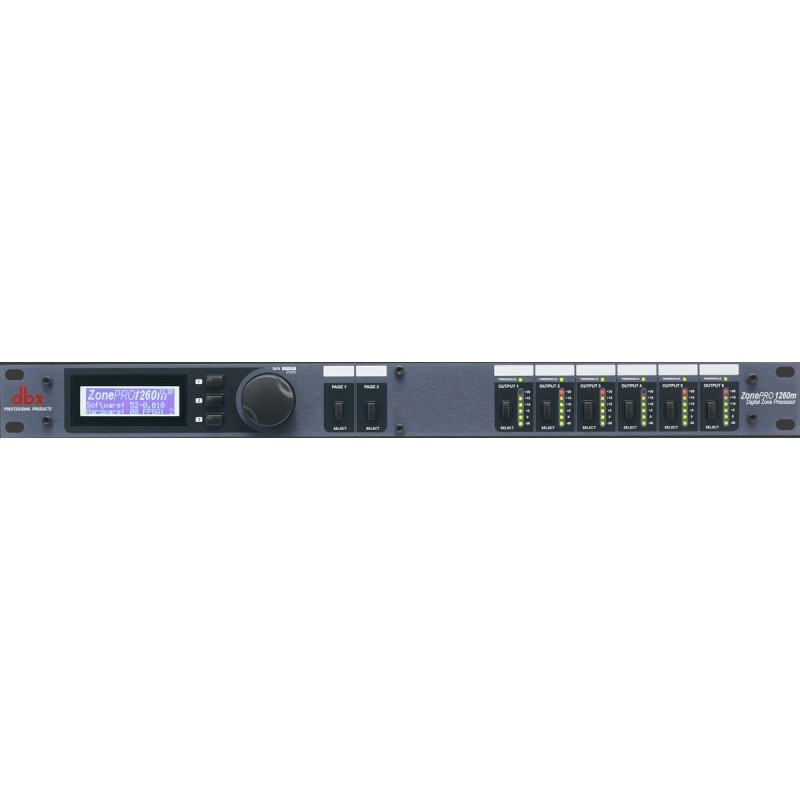

The front panel of the 1260m features comprehensive signal metering, an informative LCD display and user-specified front panel control.
Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control.
All ZonePRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable (see table for further information).
ZonePRO Designer—the configuration, control and monitoring software for the ZonePRO family of devices—offers control of the ZonePRO 1260m via Ethernet or RS-232. The Configuration Wizard within ZonePRO Designer guides users through the step-bystep configuration process of the 1260m.
- 12 Inputs / 6 Outputs
- 6 Balanced Mic/Line Inputs
- 4 Unbalanced, Mono-Summed RCA Input Pairs
- S/PDIF Input
- Microphone Gain per Channel
- Pre-Configured Architecture
- Two Configurable Input Insert Positions
- One Configurable Output Insert Position
- AutoWarmth per Output Zone
- Link Bus
- Comprehensive Signal Metering
- Front Panel LCD
- 9 User-Specified Front Panel Control
- Optional ZC Controllers
- Ethernet Control
- Serial Control
- Third Party Control
- Wizard-Driven Configuration
Input - 12 Total - (6) Balanced Mic/Line Inputs, (4) Unbalanced, Mono-Summed RCA Input Pairs, S/PDIF Input
Input Type - Euroblock (Mic/Line), RCA (Source)
Input Impedance - Euroblock: >50kΩ Balanced, >25kΩ Unbalanced, RF Filtered; RCA: >25kΩ Unbalanced, RF Filtered
Max Input - +20dBu Mic/Line, +12dBu RCA
CMRR - > 40dB, typically >55db @ 1kHz
Mic Preamp gain - 30 to 60dB
Mic Preamp Equivalent Input Noise (EIN) - < -118dBu, 22Hz-22kHz, 150Ω Source Impedance
Mic Preamp Phantom Power - 15V
Output - 6 Total
Output Type - Electronically Balanced, RF Filtered Euroblock
Output Impedance - 120Ω Balanced, 60Ω Unbalanced
Max Output - +20dBu
I/O Meter - 6 Independent Six-Segment Lightpipe Output Meters that range from -30 to +20 dBu, Threshold Meters
LCD Display - LCD Display provides information about Source Selection, Page Steering, Zone Volume and Mute
A/D Converter - dbx Type IV Conversion System
A/D Dynamic Range - (line) >113dB, A-weighted, >110dB unweighted
Type IV Dynamic Range - >119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW
Sample Rate - 48kHz
D/A Dynamic Range - 112dB A-weighted, 109dB unweighted, 22kHz BW
Dynamic Range - >110dB A-weighted, >107dB unweighted, 22kHz BW
THD+Noise - 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response - 20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk - >80dB typical
Propagation Delay - 0.8 msec
Operating Voltage - 100-240 VAC, 50/60Hz
Power Consumption - 27 W
BTU - <92.13
Unit Weight - 6.2 lbs / 2.81 kg
Shipping Weight - 8.35 lbs / 3.78 kg
Dimensions - 1.75” (1U) x 19” x 7.75” (45mm x 483mm x 197mm)
Safety Agency Certifications - UL 60065, IEC 60065, E 60065, EN 55013
