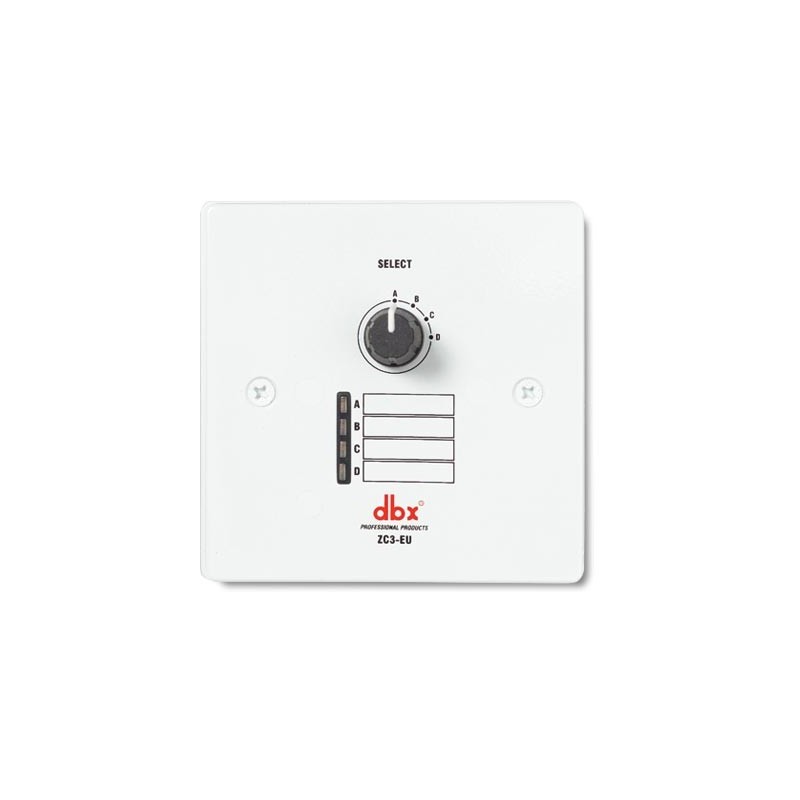

dbx ZC3 EU Wall-Mounted Zone Controller

dbx ZC3 EU Wall-Mounted Zone Controller

The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-3 can function as a program selector for the DriveRack 260 and 220i; in addition it can be used for as a source selector, page steering control, or a scene selector for the ZonePRO products.

The remote device shall provide programmable rotary switch program selection for the dbx DriveRack 220i and 260 devices. The remote device shall also provide rotary switch programmable source selection, page assignment, or scene selection for the dbx ZonePRO devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors. The device shall be a dbx ZC-3-EU remote controller.

Specifications

• Connectors - (2) RJ-45
• Series Wiring - Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
• Parallel Wiring using ZC-BOB - Up to Six Zone Controllers: 1000 ft.
• Parallel Wiring Cable - CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
• Safety Agency Certifications - UL 60065, IEC 60065, EN 55013, E60065
