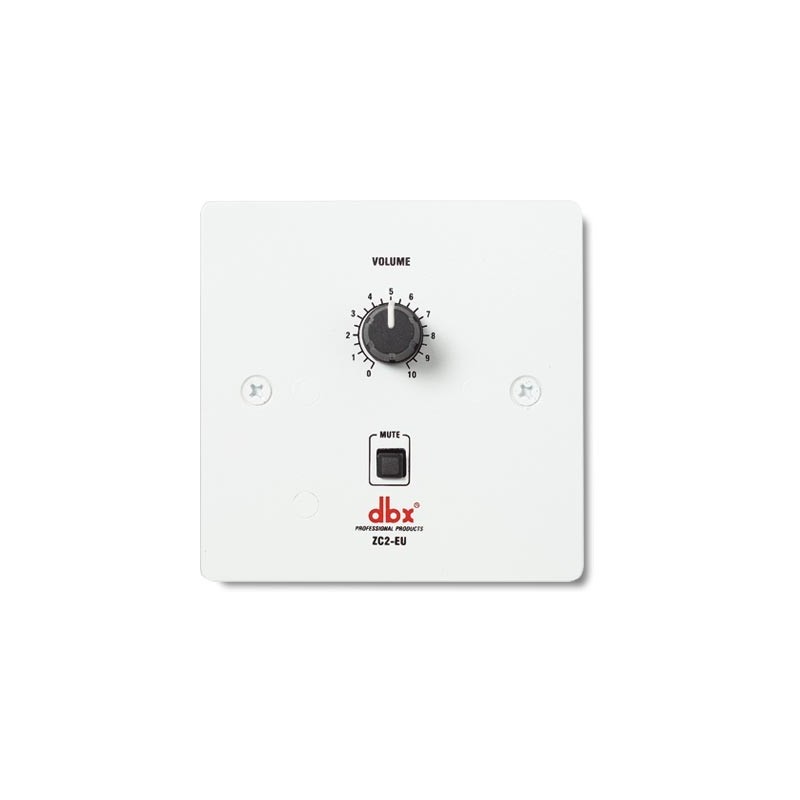

dbx ZC2 EU Wall-Mounted Zone Controller
search
  • dbx ZC2 EU Wall-Mounted Zone Controller

dbx ZC2 EU Wall-Mounted Zone Controller

£78.00
Tax included
£65.00 Tax excl.

dbx ZC2 EU Wall-Mounted Zone Controller


The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting.

Quantity

dbx ZC2 EU Wall-Mounted Zone Controller


The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-2 offers programmable volume and mute control for the DriveRack 220i, 260 and ZonePRO products.

The remote device shall provide computer programmable rotary potentiometer and push-button volume control and muting for the dbx DriveRack 260, 220i and ZonePRO devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors. The device shall be a dbx ZC-2-EU remote controller.

Specifications

Connectors - (2) RJ-45
Series Wiring - Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB - Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable - CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications - UL 60065, IEC 60065, EN 55013, E60065

DBX0016

Data sheet

Price Unit
Each
Condition
new
Availability
available for order

Specific References

EAN13
3420476455796
