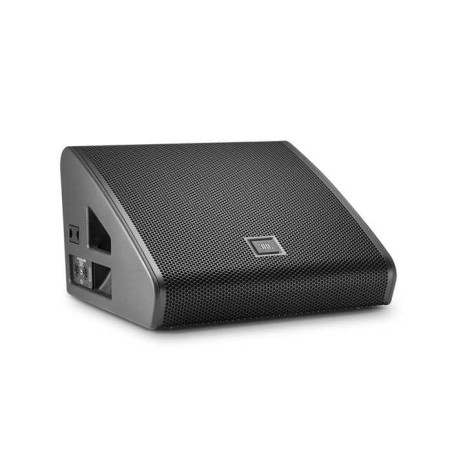

JBL VTX M20

JBL VTX M20

Dual 10" stage monitor. High performance differential drive woofers and the large-format D2 dual-diaphragm dual voice-coil high frequency driver. Passive or bi-amp operation with no compromise in output power or performance. 60x60 coverage. Elegant, low profile, compact design suitable for touring and high profile broadcast applications. Max peak output 136dB.

Features

• Elegant, low profile, compact design suitable for touring and high profile broadcast applications
• State of the art JBL transducers, including Differential Driveâ„¢ cone transducers and D2 dual diaphragm dual voice coil compression driver
• 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
• Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment

Specifications

Frequency Range (-10 dB) - 55 Hz - 19.5 kHz
Coverage Pattern (-6 dB) - Horizontal: 60; Vertical: 60
System Input Power Rating - Passive: 1250 W Continuous (IEC / 100 hour)
                                              Active: LF: 1250 W Continuous (IEC / 100 hour)
                                              HF: 100 W Continuous (IEC / 100 hour)
Maximum Peak Output - 136dB (Preset: VTX M20 FR)
System Latency - 3.33ms
System Processing - Crown Audio I-Tech HD Series
                                 Crown Audio I-Tech 4x3500HD
System Impedance - Passive: 4 ohms
                                Active: LF: 4 ohms, HF: 8 ohms
Low Frequency Transducer - 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice                                             coil, NDD, Direct Cooled
High Frequency Transducer - 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
Monitor Angle - 30 degrees
Construction - 18 mm, 11-ply Finnish birch plywood
Grille - Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth                       backing
Input Connectors - Passive: Neutrik Speakon NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ±
                              Active: Neutrik Speakon NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
Dimensions (H x W x D) - 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in)
Net Weight - 23 kg (51 lbs)
