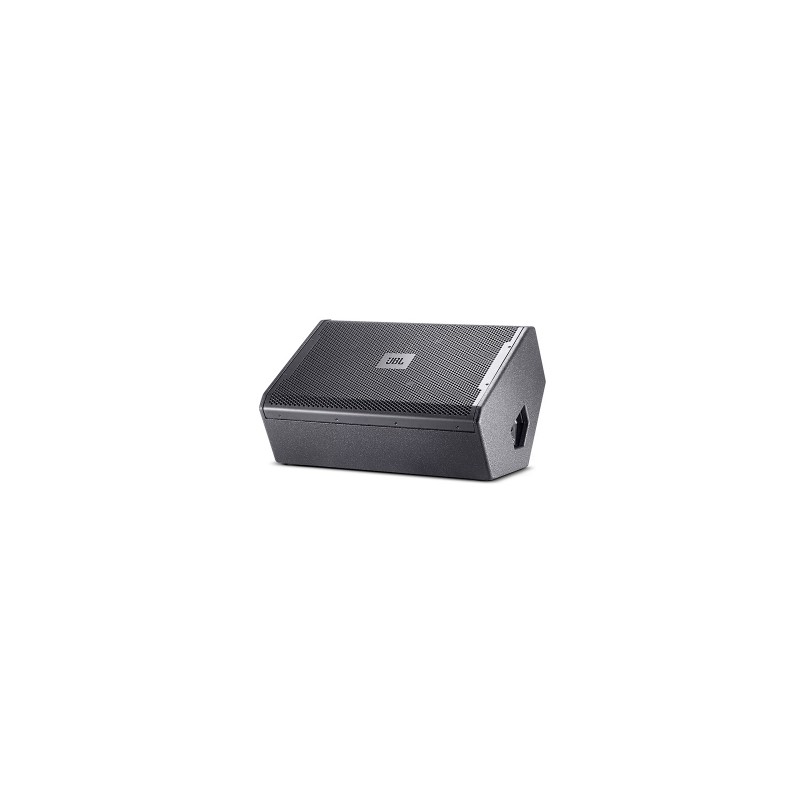

JBL VRX915M

VRX915M

15 in. Two-Way Stage Monitor
The VRX915M is a dedicated, compact and lightweight 15" two way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL’s latest neodymium-magnet transducers.

FEATURES:

• Compact and low-profile for minimal obstruction of audience sightlines
• 50° x 90° nominal coverage
• Bi-amplified or full-range passive operation
• Differential Drive woofer with neodymium magnet for high power capacity and very light weight
• 4" (voice coil) diameter compression driver with neodymium magnet

SPECIFICATIONS:

• Power Rating - 800 W / 1600 W / 3200W
• Frequency Range - 60 Hz - 20 kHz
• Dimensions (H x W x D) - 629 mm x 432 mm x 324 mm (375 mm stage height), 24.75 in x 17 in x 12.75 in (14.75" stage height)
• Frequency Response - 70 Hz - 20 kHz
• Coverage Pattern - 50° x 90° nominal
• Crossover Modes - Passive / Bi-amp
• Crossover Frequency - 1.1 kHz
• System Maximum SPL - 127 dB SPL continuous (133 dB SPL peak)
• System Sensitivity (1w @ 1m) - 98 dB SPL
• LF Driver - 1 x JBL 2265H 380 mm (15 in) Differential Drive woofer 8 Ohms
• HF Driver - 1 x JBL 2452H, 100 mm (4.0 inch) diameter voice coil, 38 mm (1.5 inch) exit, neodymium magnet compression driver 8 Ohms
• Nominal Impedance - 8 ohms
• Active Tunings - Tunings available at www.jblpro.com
• Enclosure - Symmetrical stage monitor, 15/18 mm, plywood
• Finish - Black DuraFlex finish
• Grille - Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing
• Input Connectors - Neutrik Speakon NL-4 (x2), one on each end
• Net Weight - 21 kg (46.0 lb)
