JBL Control 5 Each

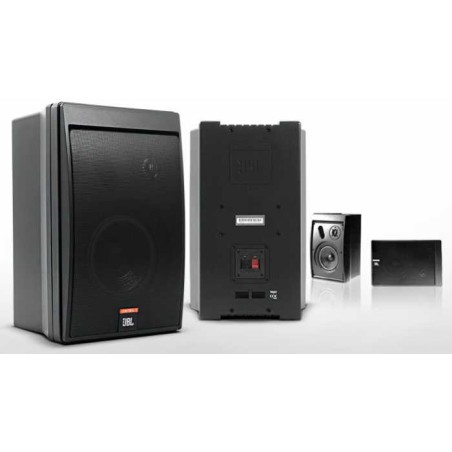

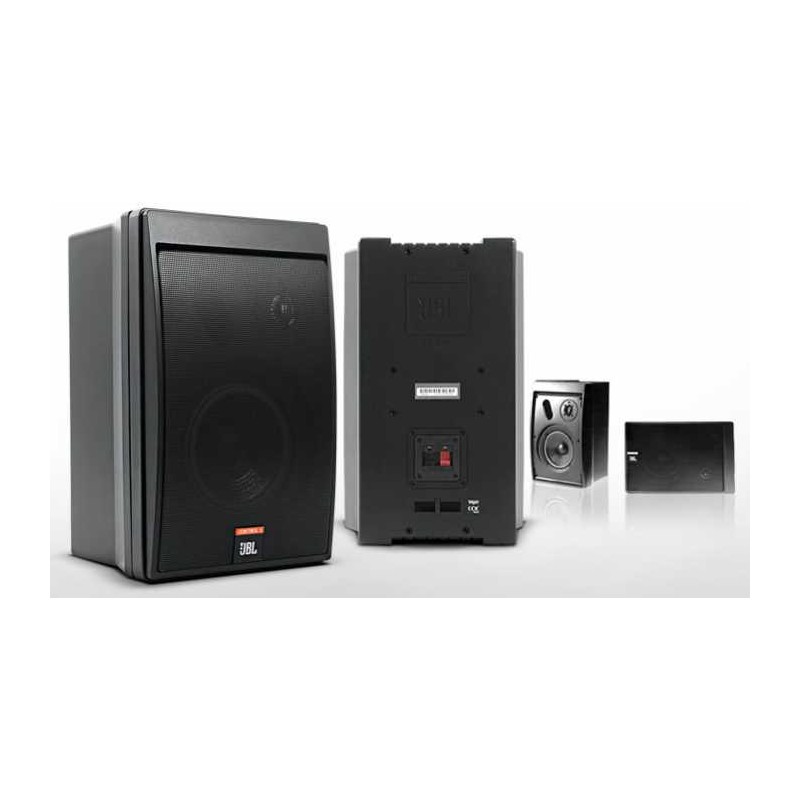

Control 5

Compact Control Monitor Loudspeaker System
The Control 5 is a high performance, wide range control monitor suitable for use as the primary sound source in a variety of applications.

FEATURES:

• Sensitivity: 89 dB SPL, 1 W, 1 m (3.3 ft)
• High power handling (175 W pink noise) with integral protection circuit network.
• Molded enclosure with shielded magnet structure.
• Components: •165 mm (6.5 in) low frequency loudspeaker. •25 mm (1 in) pure titanium dome tweeter.
• Optional mounting hardware available in two colors: black and white.

SPECIFICATIONS:

• Frequency Range (± 3 dB) - 75 Hz to 20 kHz
• Power Capacity - I75 W
• Sensitivity - 89 dB SPL, 1 W, 1 m (3.3 ft)
• Directivity Factor (Q) - 2.8
• Directivity Index (DI) - 4.5
• Nominal Impedance - 4 ohms
• Crossover Frequency - 3 kHz
• Polarity - Positive Voltage to + terminal causes outward low frequency cone motion
• Enclosure Material - Polypropylene structural foam
• Finish - Black or white
• Dimensions - (H) 387 mm x (W) 251 mm x (D) 229 mm (15.25 in x 9.875 in x 9 in)
• Net Weight (ea) - 4.5 kg (10 lbs.)
• Shipping Weight (pair) - 11 kg (24 lbs.)
• MTC-51 Wall Mount Bracket - Allows the Control 5 to be mounted to any rigid vertical surface with a unique polymer ball and clamp design, In addition to omnidirectional movement about the ball, the speaker’s connecting wires may be run internal to the clamp. Optional colors.
• MTC-52 Ceiling Mount Bracket - The same as the MTC-51 except that it is designed to be mounted to a rigid ceiling surface. Optional colors.
• Note - Molded of dense polypropylene Accessory attachment points on rear of the enclosure are 1⁄4 x 20 threaded brass bushings
