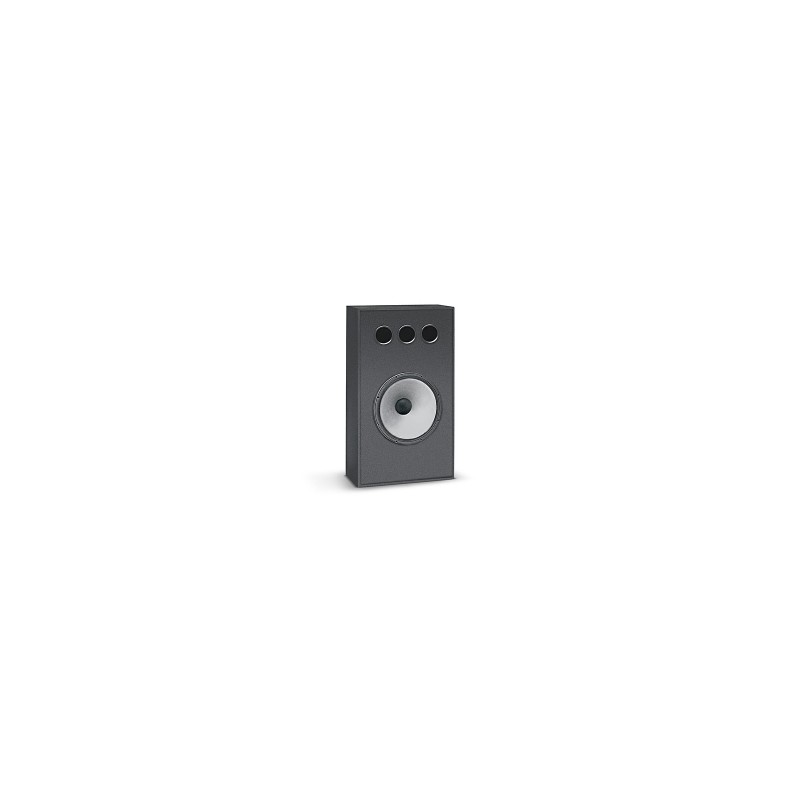

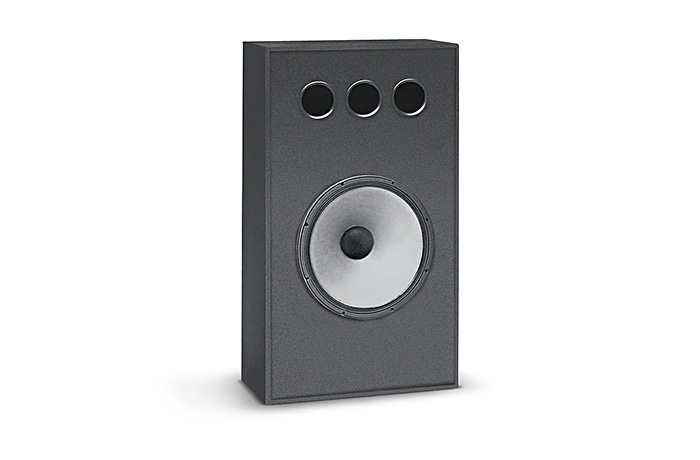

JBL 3635 Subwoofer

3635

Cinema Subwoofer System
The 3635 subwoofer provides natural low-frequency sound quality for music and dialog in small
cinema applications.

FEATURES:

• Components: One 460 mm (18 in) low frequency driver.
• Shallow profile cabinet minimizes behind-screen space.

SPECIFICATIONS:

• Frequency Range - 28 Hz to 500 Hz (-10 dB)
• Frequency Response - 38 Hz to 100 Hz (+/- 3 dB)
• Power Capacity (Continuous Pink Noise) - 300 W
• Sensitivity - 100 dB (1W, 1m)
• Nominal Impedance - 8 Ohms
• Recommended Crossover Frequency - 100 kHz
• Half-Space Reference Efficiency - 5%
• Maximum Acoustic Power Output - 15 W IEC Standard (Sine Wave Input)
• System Polarity - Positive Voltage to RED produces forward cone motion
• Input Connectors - Barrier Strip Screw Terminals
• Dimensions (H x W x D) - 1168 x 651 x 368 mm (46 x 25.625 x 14.5 in)
• Net Weight - 51 kg (113 lb)
