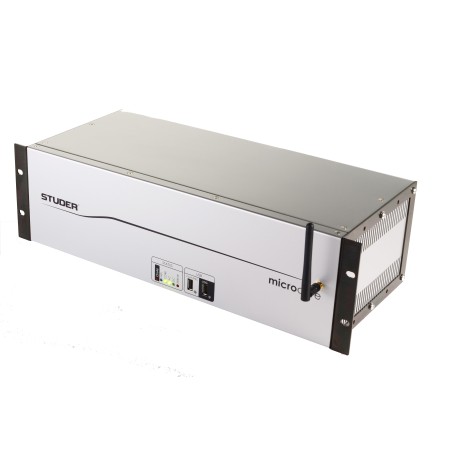

New Sale! Studer DSP Core Compact integrated digital audio broadcast and production mixing system View larger

Studer DSP Core Compact integrated digital audio broadcast and production mixing system

STD0001

New product

Studer DSP Core Compact integrated digital audio broadcast and production mixing system

  • Proven Studer sound quality and performance
  • Compact, integrated form factor
  • Comprehensive array of I/O including AoIP (Dante)
  • High-quality Studer mic/line inputs
  • Fully controllable via LAN or Wi-Fi

More details

£ 2,069.10

£ 2,482.92 inc VAT

£ 2,482.92   tax incl.

-10%

£ 2,299.00

Click to configure product options.

Studer Broadcasting Solution

Studer DSP Core Compact integrated digital audio broadcast and production mixing system

The Studer Micro Series is a compact and flexible broadcast solution that is ideal for a variety of applications, from radio and TV broadcast to production studios and ENG/DSNG.

Comprised of the Micro Core unit and optional Fader Controller surface, the Studer Micro Series combines renowned Studer quality with intuitive features, such as AoIP, Lexicon effects processing and proprietary VoiceMix automatic mixing for unprecedented value and versatility.

At the centre of Studer Micro Series is the core unit—a rugged 3RU, fanless rack-mountable chassis with integrated I/O, DSP and a control system that’s hosted by an internal web server. Unlike other broadcast solutions that require expensive add-ons, the core features AoIP as standard with eight channels of DANTE I/O.

The core can be controlled using the intuitive GUI via web browser, or with the optional fader control surface. The powerful feature set and flexible control architecture of the Studer Micro Series is ideally suited for “live-to-air” or “off-air” production environments, as well as remote broadcast, corporate, hospitality sound reinforcement and more.

Graphical User Interface

Image title

Every function of the core unit can be controlled via the intuitive graphical user interface (GUI). Simply open the web browser on your computer or tablet using LAN or Wi-Fi, enter the IP address of the core, and the GUI appears—no need to install any software. A single device can control multiple core units, and conversely, multiple devices can control a single core simultaneously.

Image title

The web-based Studer Micro Series GUI allows you to move freely anywhere in the mix environment. Surfaces are represented graphically, allowing a potentially large surface to be displayed on a small screen. This represents a huge cost-saving opportunity by practically eliminating the need for a large, expensive control surface.

Key Features

  • Proven Studer sound quality and performance
  • Compact, integrated form factor
  • Comprehensive array of I/O including AoIP (Dante)
  • High-quality Studer mic/line inputs
  • Fully controllable via LAN or Wi-Fi using an HTML 5-capable web browser on computer/tablet
  • Internal Wi-Fi router for connecting with computers and tablets
  • Optional physical fader control surface
  • Highly acclaimed Studer VoiceMix automatic mixing algorithm can mix up to 12 mono inputs
  • Automatic input gain level calibration on each mic input
  • Integrated stereo recorder, track player and jingle player
  • 2x stereo Lexicon multi-effects

Specifications

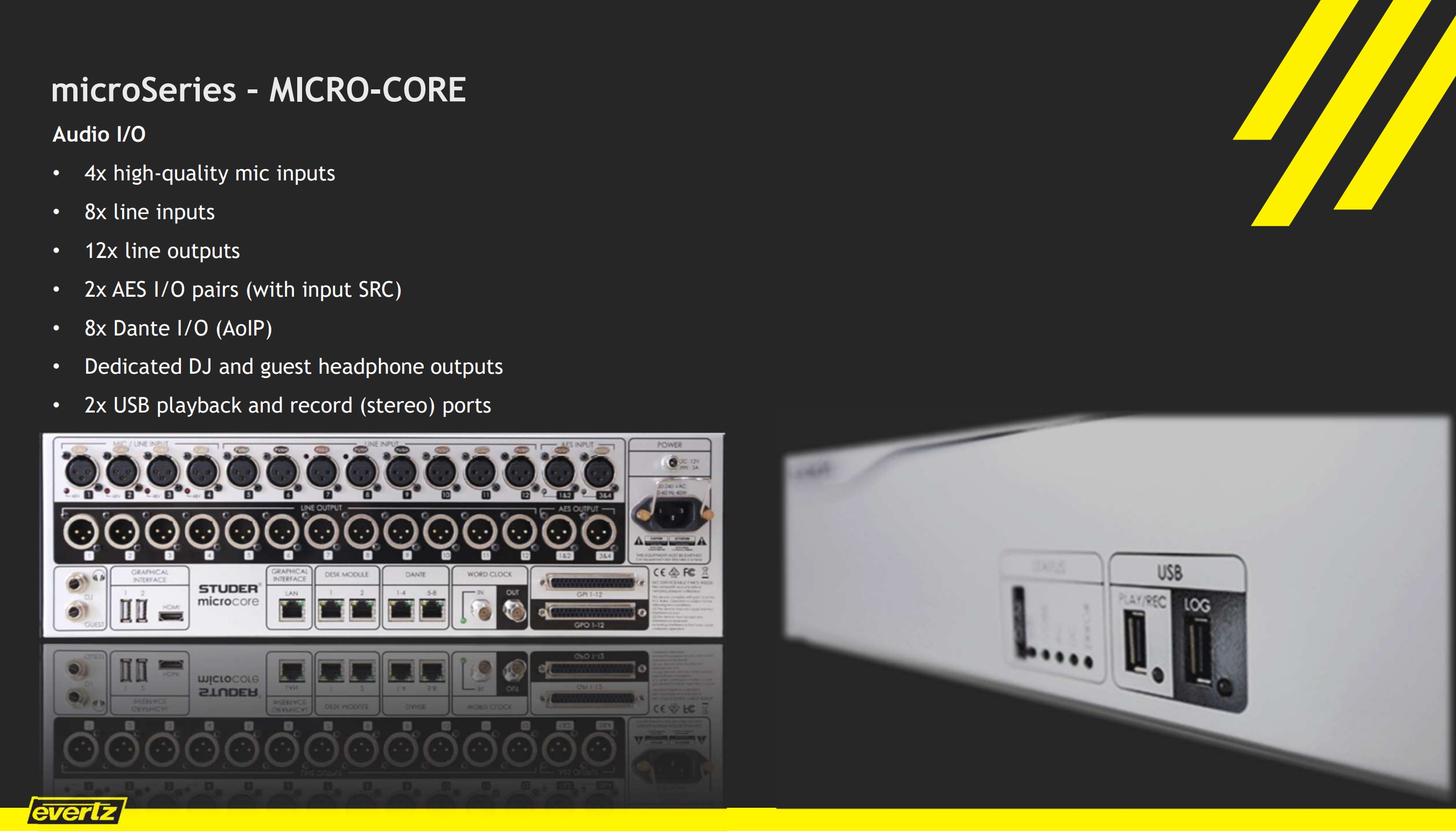

  • Audio I/O:
    - 4x HQ Mic Inputs
    - 8x Line Inputs
    - 12x Line Outputs
    - 2x AES Pairs I/O (Input SRC)
    - 8x DANTE I/O (AoIP)
    - Dedicated DJ and Guest Headphone Out
    - 2x USB Playback & Record (Stereo) Ports

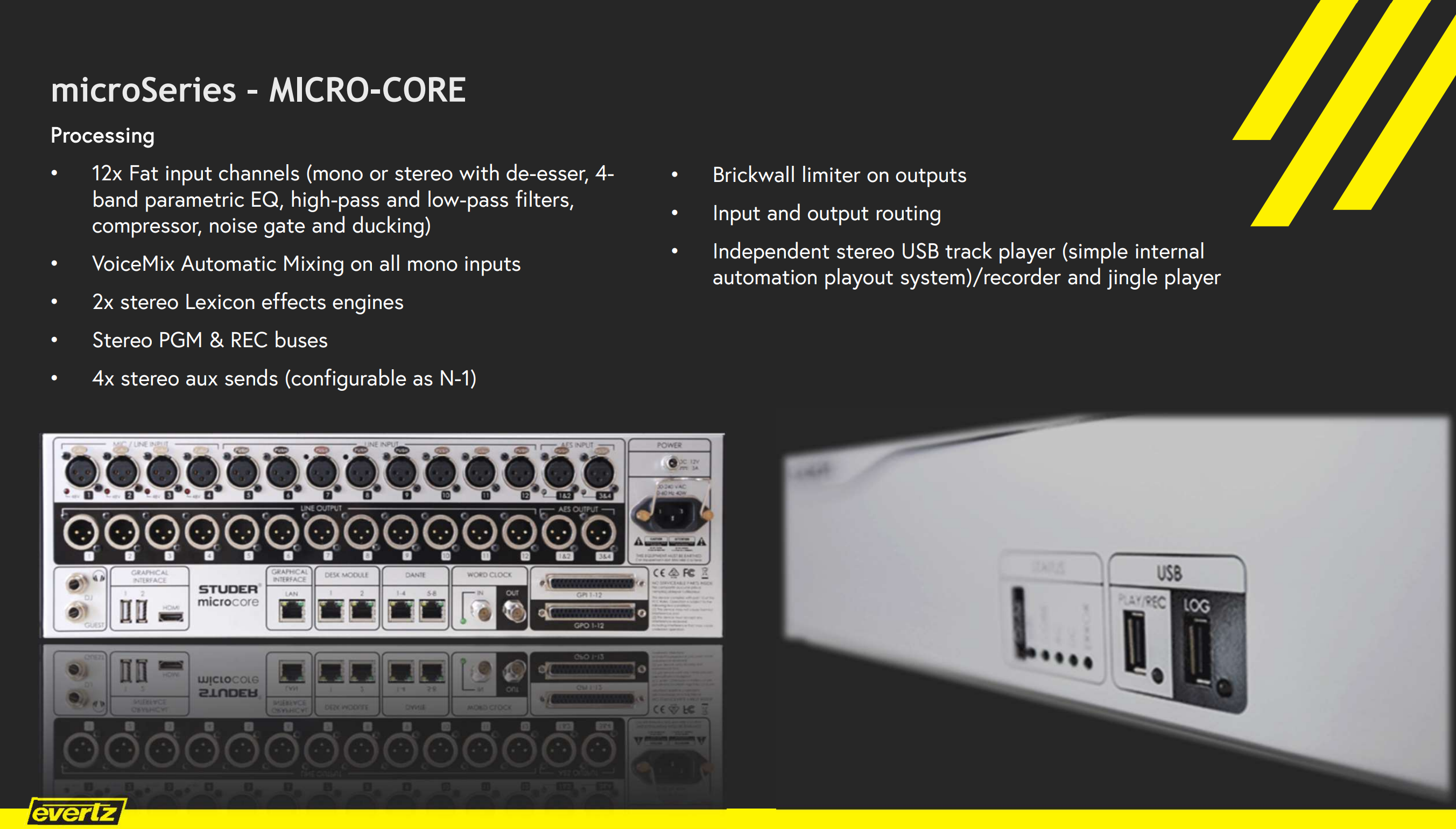

  • Processing:
    - 12x Fat Input Channels (Mono or Stereo with De-Esser, 4-band Parametric EQ, High Pass and Low Pass Filters, Compressor, Noise Gate and Ducking)
    - VoiceMix Automatic Mixing on all Mono Inputs
    - 2x Stereo Lexicon Effects Engines
    - Stereo PGM & REC Buses
    - 4x Stereo Aux Sends (configurable as N-1)
    - Brickwall Limiter on Outputs
    - Input & Output Routing
    - Independent Stereo USB Track Player (Simple Internal Automation Playout System)/Recorder and Jingle Player
  • Additional Connections:
    - External Redundant 12V DC PSU
    - Dedicated Wordclock I/O (AES & DANTE also available)
    - 12x GPIO
    - USB and HDMI
    - LAN
    - 2x PoE for Control Surfaces
