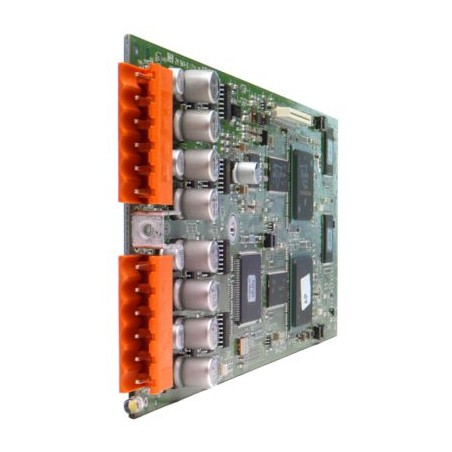

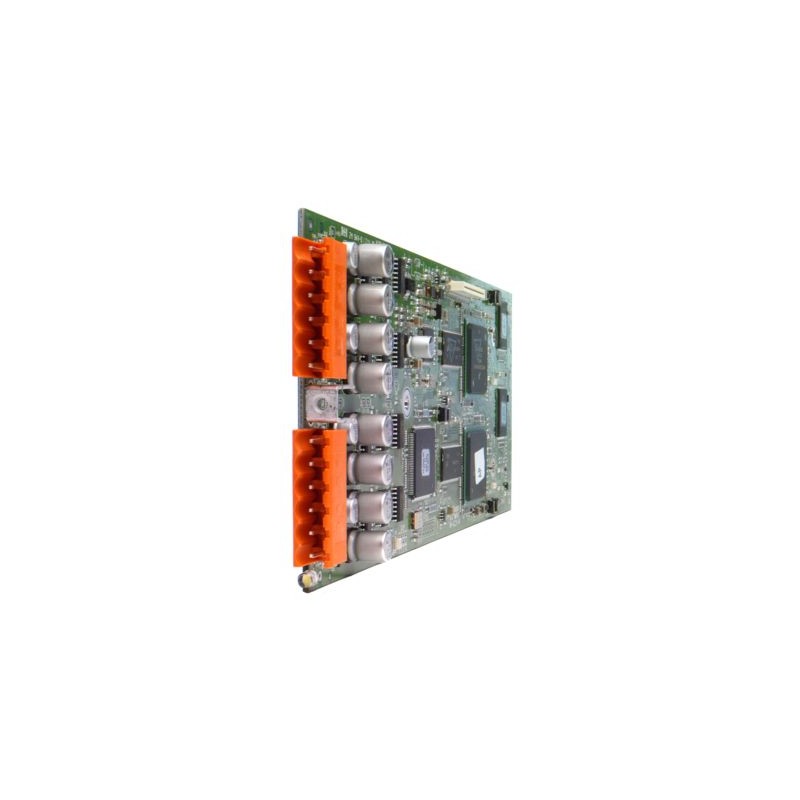

BSS BLU-DIGITAL BLU-DIG-IN AES/EBU, S/PDIF Inputs
The Soundweb London Digital Input card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices.
BSS BLU-DIGITAL BLU-DIG-IN AES/EBU, S/PDIF Inputs
The Soundweb London Digital Input card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. These digital cards enable Soundweb London devices to receive AES/EBU and S/PDIF audio signals.
The Digital Input Card can be configured in the following ways:
2 Stereo AES/EBU Signals
1 Stereo AES/EBU signal / 1 Stereo S/PDIF Signal
2 Stereo S/PDIF Signals
The Digital Input Card has two Combicon connectors which are used as follows:
Connector 1
Stereo Audio, Channels 1 and 2 - AES/EBU
Stereo Audio, Channels 3 and 4 - AES/EBU
Connector 2
Stereo Audio, Channels 1 and 2 - S/PDIF
Stereo Audio, Channels 3 and 4 - S/PDIF
Connector: [S/PDIF Combicon] [AES/EBU Combicon]
Signal: 4 3 2 1
Pin: [S + -] [S + -] [S + -] [S + -]
Balanced Positive: to + Unbalanced Signal: to +
Negative: to - Signal Ground: to -
Shield: to S Shield*: to S
* Short "S" to "-" for unshielded cable
Specifications
Digital Inputs: 4
Digital Input Type: AES/EBU and S/PDIF
