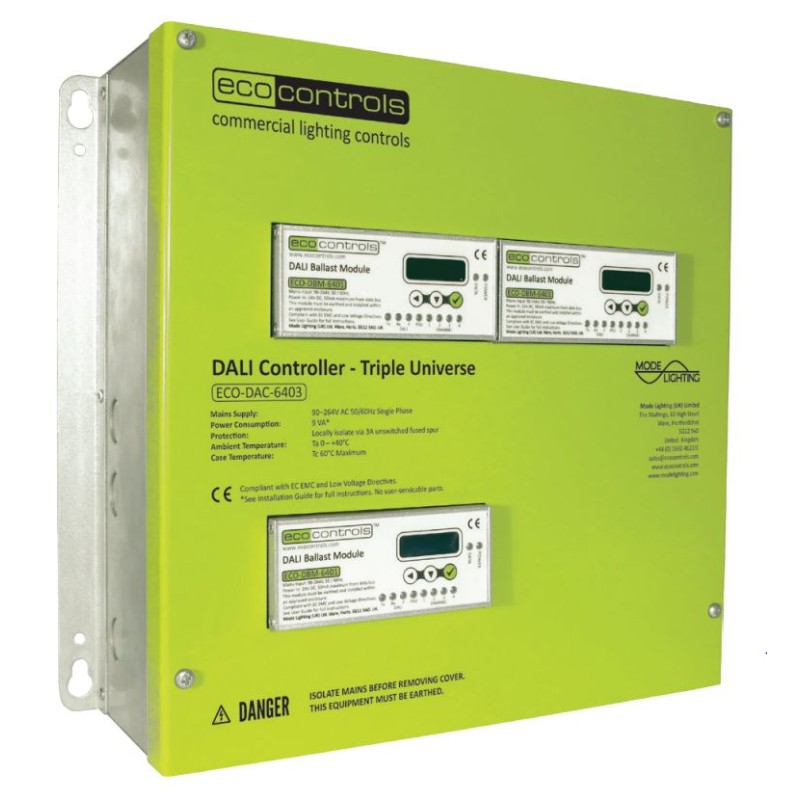

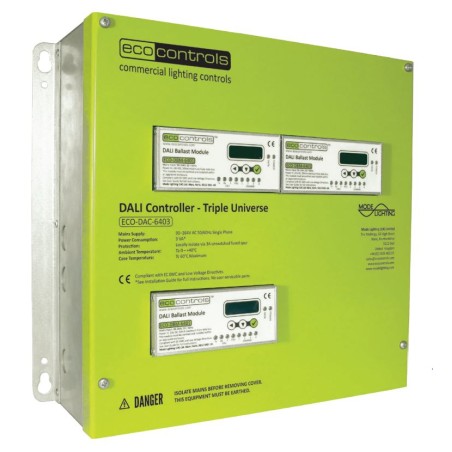

Mode Eco Lighting Controls ECO-DAC-6403 DALI Controller - Triple (Three DALI Universes)
» Integral 250 mA DALI standard PSU per DALI Universe
» DALI short circuit and overload protection
» M-BUS to a range of field based control devices such as MultiSensors, Switch Input Units, LCD and Multi-button Control Plates, Blinds Controllers and RS-232 Audio Visual Interface
» Configurable I/O provides connections for Letting Agent Switch, Zone Switches, Security System
» Installer pre-commission testing via the on-board display and keypad
» Non-volatile flash memory
» Ultra compact form factor 340 x 300mm
» Quick non-intrusive installation via external keyhole fixings
» 2 year warranty
The lighting within an installation is divided across one or more DALI Universes.
DALI ballasts/devices can be connected to the DALI control cable which is connected to and managed by the DALI Controller.
Each DALI Ballast Module can control up to 64 ballasts/devices as the primary means of luminaire control. This is further complimented with 4 additional channels of individually configurable and addressable I/O for control of non-DALI lighting circuits such DSI or 0/1 – 10V, alternatively configured as inputs for volt-free contact, analogue or DSI.
DALI Controllers are connected to an Area Controller via the M-BUS network cable. The M-BUS provides the means of SELV communication between the Area Controller to Lighting Controllers and Control Devices.
