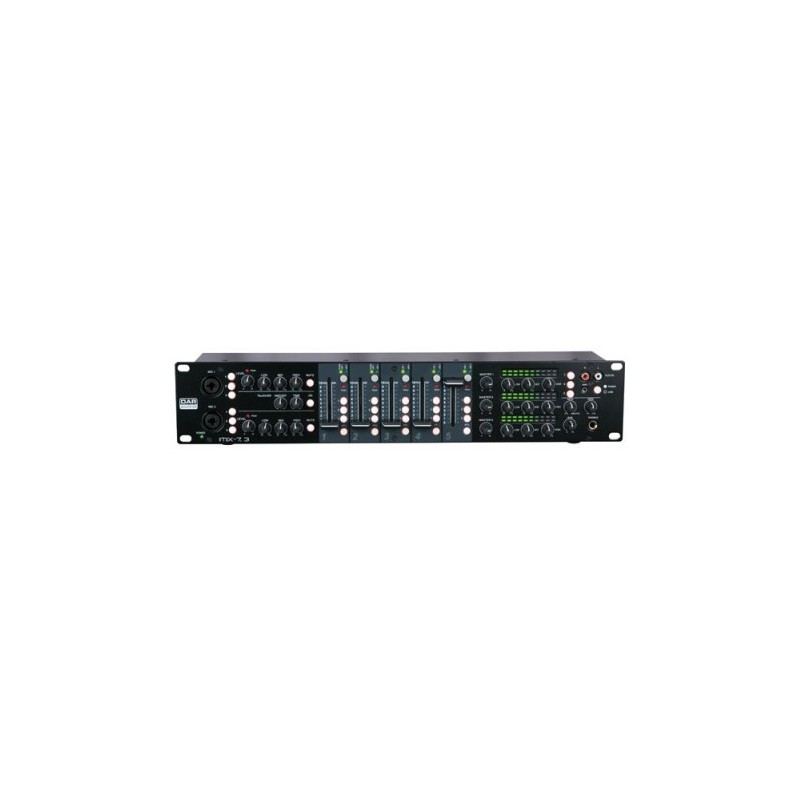

DAP IMIX-7.3 7 Channel 2U install mixer, 3 zones View larger

DAP IMIX-7.3 7 Channel 2U install mixer, 3 zones

D2351

New product

DAP IMIX-7.3 7 Channel 2U install mixer, 3 zones

The IMIX-7.3 is a compact installation mixer with zone control. It has exact the same functionality as the IMIX-7.1 but each input on the IMIX-7.3 can be routed to the desired output. This function makes it possible to control 3 areas with different music, sound level and EQ settings.

More details

£ 236.30

£ 283.56 inc VAT

£ 283.56   tax incl.

Click to configure product options.
Price Unit Each
Condition new
Availability preorder
Brand DAP Audio
Manufacturer DAP Audio

DAP IMIX-7.3 7 Channel 2U install mixer, 3 zones

The IMIX-7.3 is a compact installation mixer with zone control. It has exact the same functionality as the IMIX-7.1 but each input on the IMIX-7.3 can be routed to the desired output. This function makes it possible to control 3 areas with different music, sound level and EQ settings.

Specifications

Input channels: 2 x Microphone, combo XLR/Jack
11 x Line, RCA
2 x Phono, RCA
1 x Phone, 3,5mm jack
Output channels: 3 x Master Balanced, XLR
1 x REC output, RCA
1 x Headphones, 6.3mm Jack
Master EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
Mic EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
Frequency response: 20Hz – 20Khz
T.H.D.: <0.05%
Dimensions: 481 x 88 x 95 mm (LxHxD)
Powersupply: 230V AC, 50Hz
Powerconsumption: 21Watt
Weight: 2,8 Kg


Features
• Gain settings at backside
• Special front input for phone/mp3 devices
• Zone control for 3 balanced outputs
• 2 Mic, 11 Line inputs
