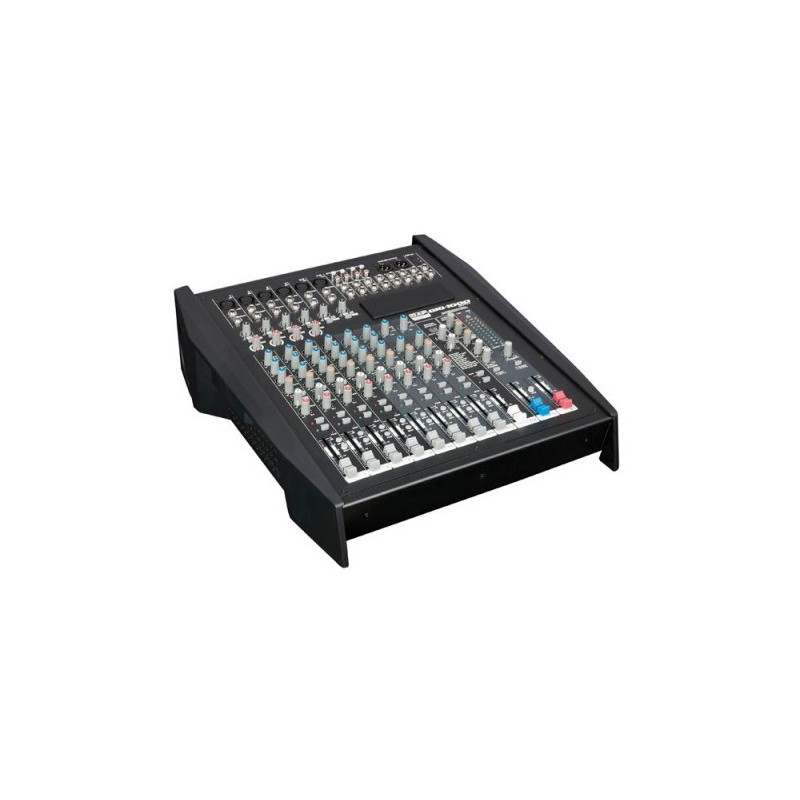

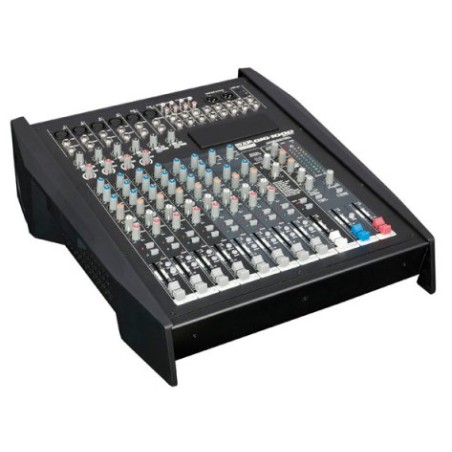

DAP GIG-1000CFX 12 Channel live mixer incl. dynamics, DSP and 1000W Amplifier

£568.00
Tax included
£473.33 Tax excl.

DAP GIG-1000CFX 12 Channel live mixer incl. dynamics, DSP and 1000W Amplifier

The GIG-1000CFX Mixing Console is packed with features that cannot be found in other consoles of it's size: 6 mono (provided with ultra-low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls,

Quantity

Ask a Quote

DAP GIG-1000CFX 12 Channel live mixer incl. dynamics, DSP and 1000W Amplifier

The GIG-1000CFX Mixing Console is packed with features that cannot be found in other consoles of it's size: 6 mono (provided with ultra-low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 2 auxiliary control, build-in 24-bit DSP effect with 100 presets, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs. The built-in Amplifier provides 2x 500W Power for your speakers. It is routed directly from the main mix, with the possibility to re-patch the amplifier so it can be used for either your Group outputs ore Auxiliary output. To top it all of the GIG-1000CFX is easy expandable with optional MP3 player, MP3 recorder or Bluetooth module on the top.

Specifications

Mono Channels
Mic Input: XLR balanced
Line input: 1/4– TRS balanced
Freq response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
Gain range: 50dB
Input sensitivity: -35dBu ~ +15dBu
LOW Cut: 75Hz
SNR <-100dBr
Phantom Power: +48V switchable

Stereo Channels
Mic Input: XLR balanced
Line input: 1/4– TRS/RCA unbalanced
Freq response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
Gain range: 50dB
Input sensitivity: -20dBu ~ +20dBu
LOW Cut: 75Hz
SNR <-100dBr
Phantom Power: +48V switchable

Channels EQ
High: +/- 15dB @ 12kHz
Mid: +/- 15dB @ 2,5kHz
Low: +/- 15dB @ 80Hz

Impedances
Microphone input: 1,8K Ohm
Other inputs: >10K Ohm
Tape output: 1K Ohm
All other outputs: 120 Ohm

Amplifier:
Power @ 8 Ohm: 2x250W RMS
Power @ 4 Ohm: 2x500W RMS
Power @ 2 Ohm: Not Allowed
Cooling: Speed regulated fan
Output Connectors: 2x Speakon

Power supply: AC 100- 240V 50Hz/60Hz
Power consumption: 1000 Watt
Measurements: 416 x 340 x 93mm
Weight: 6,25 Kg


Features
• lightweight all-in-one mixing console
• 2x500W Amplifier
• Compressors control on first MIC channels
• Built-in 24-bit DSP effect with 100 presets.
• Optional expandable with USB or Bluetooth player
D2286

Data sheet

Price Unit
Each
Condition
new
Availability
preorder
Brand
DAP Audio
Manufacturer
DAP Audio

Specific References

EAN13
8717748366870
