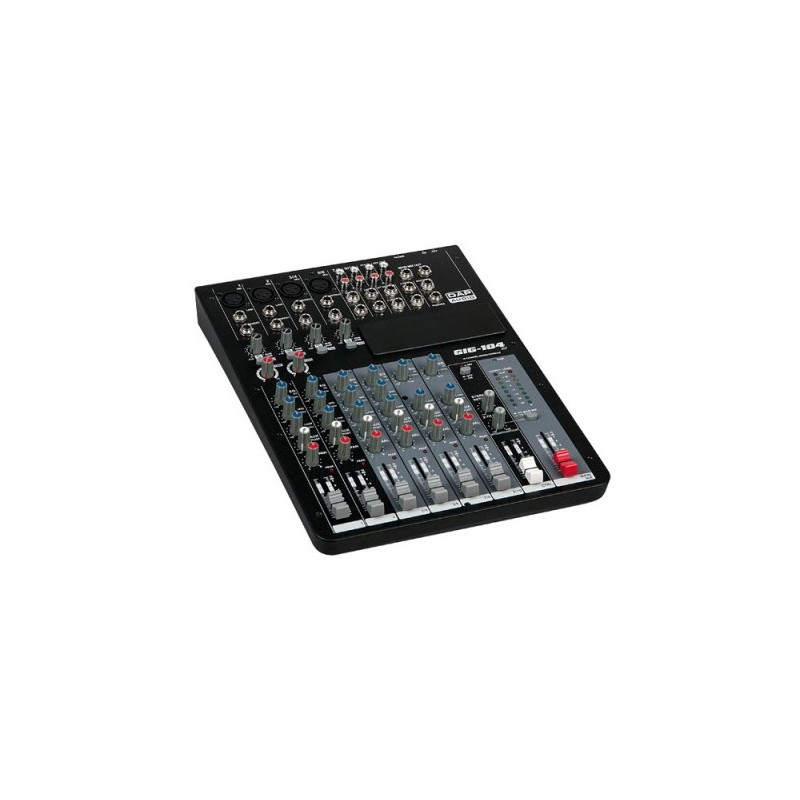

DAP GIG-104C 10 Channel live mixer incl. dynamics
£222.00
Tax included
£185.00 Tax excl.
DAP GIG-104C 10 Channel live mixer incl. dynamics
The GIG-104 C Mixing Console is packed with features that cannot be found in other consoles of it's size: 4 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels.
DAP GIG-104C 10 Channel live mixer incl. dynamics
The GIG-104 C Mixing Console is packed with features that cannot be found in other consoles of it's size: 4 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 1 auxiliary control, highly accurate 8-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.
Specifications
Mono ChannelsMic Input: XLR balanced
Line input: 1/4– TRS balanced
Freq response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
Gain range: 50dB
Input sensitivity: -35dBu ~ +15dBu
LOW Cut: 75Hz
SNR <-100dBr
Phantom Power: +48V switchable
Stereo Channels
Mic Input: XLR balanced
Line input: 1/4– TRS/RCA unbalanced
Freq response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
Gain range: 50dB
Input sensitivity: -20dBu ~ +20dBu
LOW Cut: 75Hz
SNR <-100dBr
Phantom Power: +48V switchable
Channels EQ
High: +/- 15dB @ 12kHz
Mid: +/- 15dB @ 2,5kHz
Low: +/- 15dB @ 80Hz
Impedances
Microphone input: 1,8K Ohm
Other inputs: >10K Ohm
Tape output: 1K Ohm
All other outputs: 120 Ohm
Power supply: AC 100- 240V 50Hz/60Hz
Power consumption: 40 Watt
Measurements: 343 x 254 x 63mm
Weight: 2,48 Kg
Accessories
Features
• Ultra-low noise discrete MIC Preamps with +48V Phantom Power
• Compressors control on first MIC channels
• 3-band EQ and Peak LEDs on each MIC channels. 2-band EQ and Peak LEDs on Stereo channels.
• 1 AUX Sends POST Fader
• Optional expandable with USB or Bluetooth player
• Compressors control on first MIC channels
• 3-band EQ and Peak LEDs on each MIC channels. 2-band EQ and Peak LEDs on Stereo channels.
• 1 AUX Sends POST Fader
• Optional expandable with USB or Bluetooth player
D2283
Data sheet
- Price Unit
- Each
- Condition
- new
- Availability
- available for order
Specific References
- EAN13
- 8717748331625
Comments (0)
No customer reviews for the moment.
DAP GIG-104C 10 Channel live mixer incl. dynamics
The GIG-104 C Mixing Console is packed with features that cannot be found in other consoles of it's size: 4 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels.
