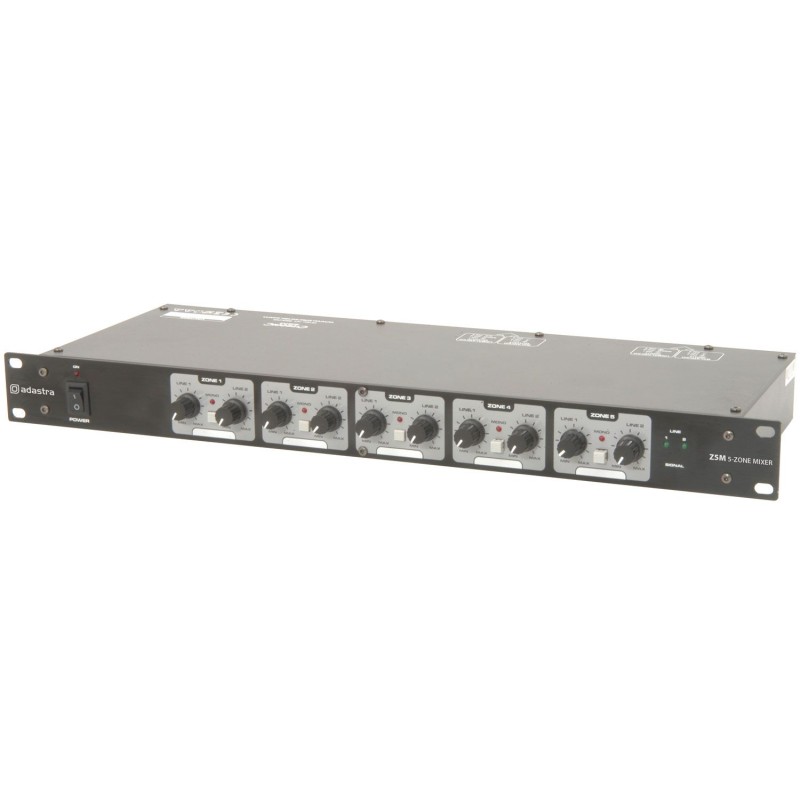

Z5M Zoning Mixer 2 input, 5 zone mixer with individual volumes for both inputs with rack ears
search
  • Z5M Zoning Mixer 2 input, 5 zone mixer with individual volumes for both inputs with rack ears
  • Z5M Zoning Mixer 2 input, 5 zone mixer with individual volumes for both inputs with rack ears
  • Z5M Zoning Mixer 2 input, 5 zone mixer with individual volumes for both inputs with rack ears

Z5M Zoning Mixer 2 input, 5 zone mixer with individual volumes for both inputs with rack ears

£156.00
Tax included
£130.00 Tax excl.

Z5M Zoning Mixer 2 input, 5 zone mixer with individual volumes for both inputs with rack ears


Quantity

Ask a Quote

Z5M Zoning Mixer with 2 input, 5 zone mixer with individual volumes for both inputs with rack ears

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

  • 2 inputs to 5 zones
  • Mono selectable for each zone
  • Fully balanced XLR connections
  • Power supply 115/230Vac 50/60Hz (IEC)
  • InputsLine 1 L+R, Line 2 L+R, balanced XLRF
  • OutputsZone 1 to 5 L+R, balanced XLRM
  • Input impedance 40k Ohms
  • Output impedance 220 Ohms
  • Frequency response 20Hz - 25kHz, +0/-1dB
  • Signal to noise ratio>100dB
  • THD<0.005%
  • Dimensions 483 x 175 x 44mm
  • Weight 2.2kg
Z5M

Specific References

EAN13
5015972101957
