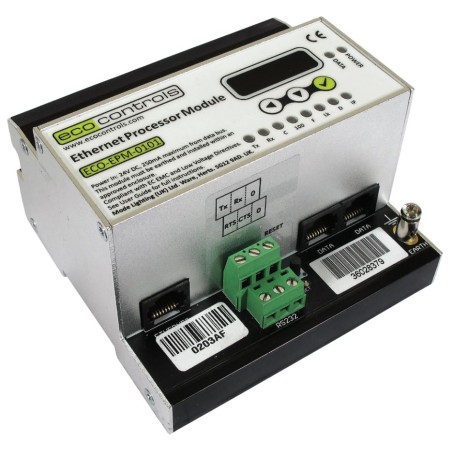

Mode Eco Controls ECO-EPM-0101 Ethernet Processor (Processor with web browser control and programming) View larger

Mode Eco Controls ECO-EPM-0101 Ethernet Processor (Processor with web browser control and programming)

ECO-EPM-0101

New product

Mode Eco Controls ECO-EPM-0101 Ethernet Processor (Processor with web browser control and programming)

Key Features
» One Ethernet Processor Module per M-BUS network
» Infinite number of M-BUS networks managed by separate Ethernet Processor Modules

More details

Click to configure product options.
Condition new
Availability preorder

Mode Eco Controls ECO-EPM-0101 Ethernet Processor (Processor with web browser control and programming)

Key FeaturesMode-ECO-EPM-0101-Ethernet-Processor-Mod
» One Ethernet Processor Module per M-BUS network
» Infinite number of M-BUS networks managed by separate Ethernet Processor Modules
» Backbone communication utilising a dedicated TCP/IP network or shared Ethernet
» RS-232 and Ethernet interface with other building control systems
» M-BUS to a range of field based Control Devices such as MultiSensors, Switch Input Units, LCD and Multi-button Control Plates, Blind Controllers and RS-232 Audio Visual Interface
» Installer pre-commissioning testing via the on-board display and keypad
» Integral Astronomical Real Time Clock providing location based dusk to dawn settings
» Non-volatile flash memory
» The modules provide a flexible solution for bespoke panel design to suit any application and installation constraints
» 2 year warranty

The Input-Output Module is an ultra-compact DIN rail mounted unit with connections for up to eight Configurable Inputs or Outputs and an M-BUS network.

Each of the eight channels are selectable as Inputs or Outputs. Inputs can be selected as 0/1-10V, DSI or switched contact inputs and Outputs can be selected as 0/1-10V or DSI to SELV (Safety extra Low Voltage) equipment.

The Input-Output Module can be used in standalone mode where it can be set-up directly via the on-board keypad and display driven menu system without the need for a PC.
As part of a wider networked solution, Input-Output Modules can be configured to operate as part of an
EcoControls fully addressable lighting management system.
