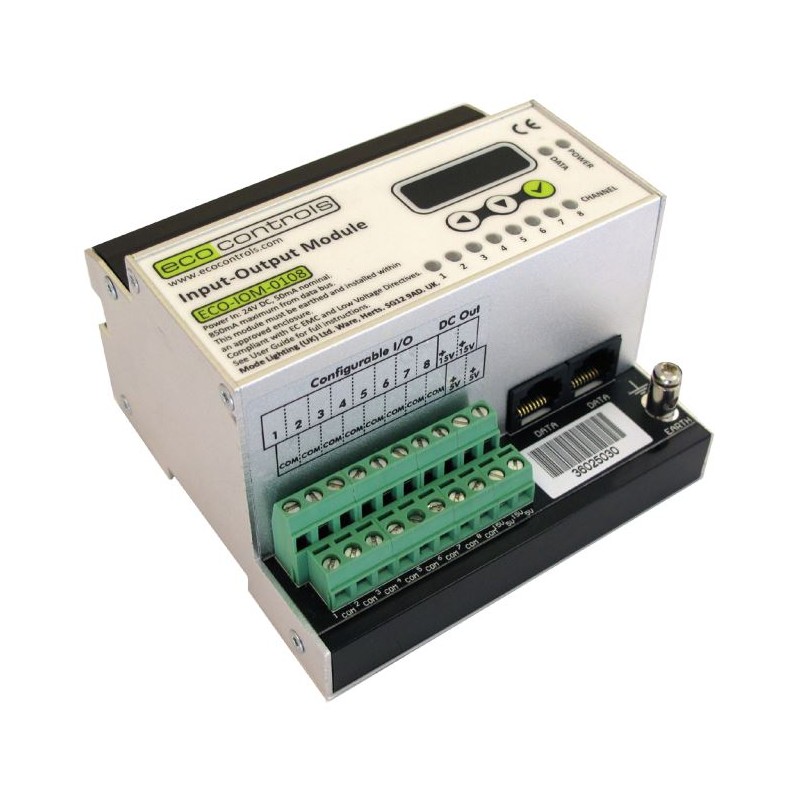

Mode Eco Controls ECO-IOM-0108 Configurable Input / Output (8 selectable 1-10V, DSI or Contact Inputs / 1-10V or DSI Outputs)
» Eight configurable channels selectable to Inputs or Outputs
» Inputs can be selected to accept 0-10V, 1-10V, DSI or switched contacts
» Outputs can be selected to provide 0-10V, 1-10V or DSI dimming control to SELV equipment such as LED Drivers
» Volt-free Contact Interface with other building control systems
» Intelligent standalone feature providing multiple operating modes programmed from the menu driven display and keypad i.e. Scene Recall, Impulse, Dimming and Protocol Converter
» M-BUS to a range of field based Control Devices such as MultiSensors, Switch Input Units, LCD and Multi-button Control Plates, Blind Controllers and RS-232 Audio Visual Interface
» LED Status Indication of field connected control wiring and devices
» Installer pre-commissioning testing via the on-board keypad and display
» Non-volatile memory
» The modules provide a flexible solution for bespoke panel design to suit any application and installation constraints
» 2 year warranty
The Input-Output Module is an ultra-compact DIN rail mounted unit with connections for up to eight
Configurable Inputs or Outputs and an M-BUS network.
Each of the eight channels are selectable as Inputs or Outputs. Inputs can be selected as 0/1-10V, DSI or switched contact inputs and Outputs can be selected as 0/1-10V or DSI to SELV (Safety extra Low Voltage) equipment.
The Input-Output Module can be used in standalone mode where it can be set-up directly via the on-board keypad and display driven menu system
without the need for a PC.
As part of a wider networked solution, Input-Output Modules can be configured to operate as part of an EcoControls fully addressable lighting management system.
