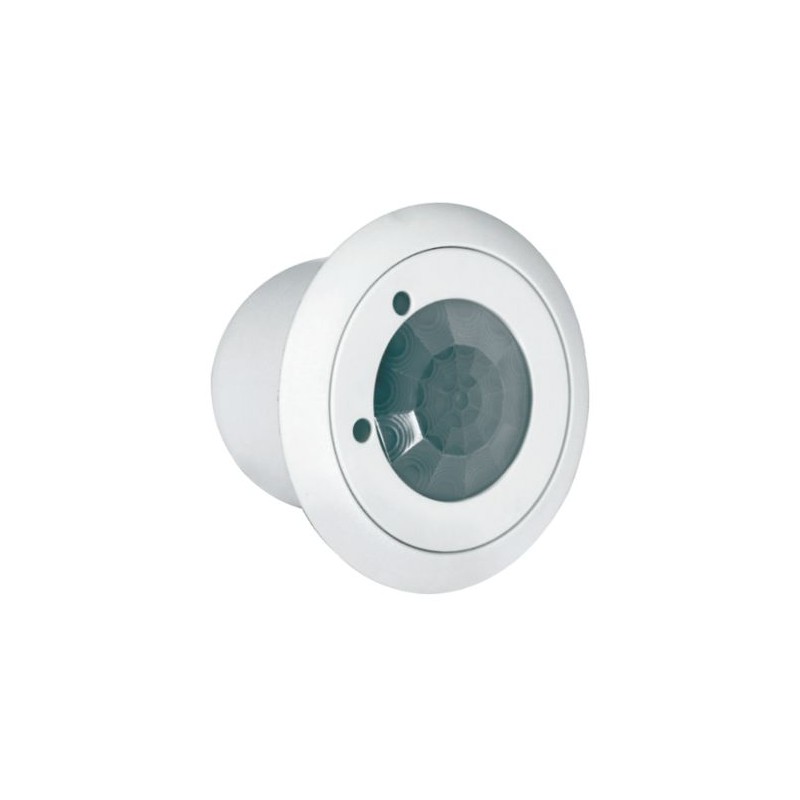

Mode Multi-Sensor (Ceiling Mount, IR Receiver, Occupancy, Daylight Sensing)

Mode Multi-Sensor (Ceiling Mount, IR Receiver, Occupancy, Daylight Sensing)

Key Features

» Three sensors in one: motion, light level and infrared override.

» Flexible motion detection from 4m – 6m (at 2.4m floor to ceiling height) allows the use of a customised range setting to better serve the monitored space.

» Dual motion detection allows two selectable sensitivity and range settings to be stored, i.e. Absence Detection and Presence Detection (see figure 1).

» Configurable PIR expiry time (off-delay). » Uses SELV compliant communication bus; M-BUS.

» Bi-colour diagnostic LED provides intuitive M-BUS installation feedback to assist the installer and end-user. » Occupancy walk test via LED flash

» Compact form factor; 55mm mounting hole diameter, 90mm deep.

» Supplied with fixing ring for easy mounting to a fibre or metal ceiling tile; plasterboard mounting kits are also available.

» Quick installation with pluggable M-BUS Patch Lead.
