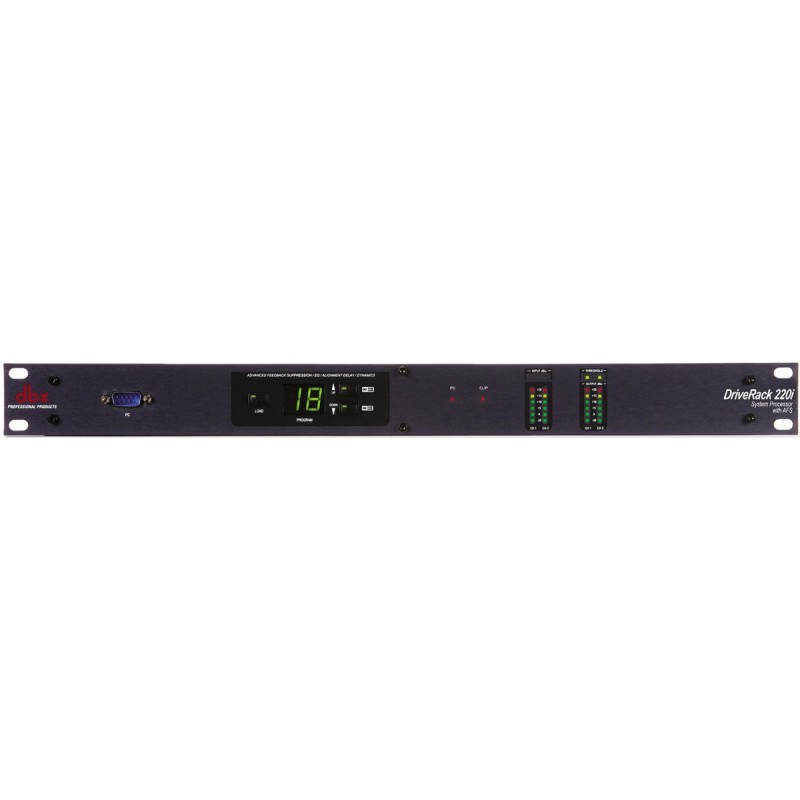

dbx DriveRack 220i System Processor with AFS Advanced Feedback Suppression

dbx DriveRack 220i System Processor with AFS Advanced Feedback Suppression

Designed from the ground up to provide state-of-the-art signal processing, the DriveRack 220i is the perfect tool for any fixed-install application. With a full complement of processing features and Mic/Line inputs the DriveRack 220i can provide both system and microphone processing. Featuring the new, patent-pending Advanced Feedback Suppression (AFS) algorithm, equalization, dynamics processing, delay, matrix mixing, and bandpass filters, the DriveRack 220i will exceed your expectations.

The DriveRack 220i is piloted from the intuitive DriveWare GUI that offers both Configuration and Control of the processing modules. Modules can be accessed, edited and saved as part of programs. Processing modules can be linked between the channels for true stereo processing. If independent processing is desired, parameters can be copied from one channel to the next to ensure that setup is quick and easy. Stored programs can be loaded from either the front panel or from wall mounted Zone Controllers. Zone Controllers can also be used for output muting or adjusting output volumes.

Features

• Advanced Feedback Suppression (AFS)
• Graphic and Parametric EQ
• Compressor
• Limiter
• Auto Gain Control
• Noise Gating
• De-Esser
• Ducker
• Bandpass Filters
• 2x2 Matrix Mixer
• 1.3 Seconds of Delay
• RS-232 PC GUI control
• Mic/Line Inputs
• Wall Panel Control
• Security Lockout

Specifications

Input - (2) Switchable line or mic inputs
Input Connectors - Female XLR line inputs and Euroblock
Input Type - Electronically balanced/RF filtered
Input Impedance - >50k ohm
Max Input - +20dBu
CMRR - > 40dB, typically >55db @ 1kHz
Mic Preamp gain - 30 to 60dB
Mic Preamp Equivalent Input Noise (EIN) - < -110dB, 22Hz-22kHz, 150 ohm
Mic Preamp Phantom Power - +15VDC
Output - 2 total
Output Connectors - Male XLR and Euroblock
Output Type - Electronically balanced, RF filtered
Output Impedance - 120ohm balanced, 60ohm unbalanced
Max Output - +20dBu
A/D Converter - dbx Type IV Conversion System
A/D Dynamic Range - (line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range - >119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
Sample Rate - 48kHz
D/A Dynamic Range - 112 dB A-weighted, 109dB unweighted
Dynamic Range - >110 dB A-weighted, >107dB unweighted
THD+Noise - 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response - 20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk - >110dB, 120dB typical, (input-to-output: >780dB)
Operating Voltage - 100 VAC, 50/60Hz, 120 VAC, 60Hz, 230VAC 50/60Hz
Dimensions - 19” Wide, 1.75”High, 7.7” Deep
Safety Agency Certifications - UL 6500, IEC 60065, EN 55013, E 60065
