JBL Control 52 Pair of Surface-Mount Satellite Speakers for Subwoofer-Satellite Loudspeaker

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

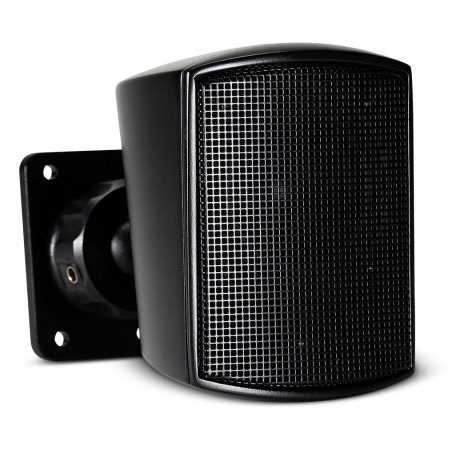

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Features

  • Stylish, unobtrusive design fits into a wide variety of decors
  • Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
  • 16 ohms impedance
  • Wall-mount brackets included
  • Available in black or white


Downloads

  Version Language Size Uploaded
Specifications
pdf_17-c246fb20baff4fd092a406a45fe2aa40b Control 50 Spec Sheet     377 KB Apr 29, 2019
Bim Objects
download_17-78b2535bf0107dd7e9920fc8283e CONTROL 52 BIM Object     Aug 27, 2019
Compliances
pdf_17-c246fb20baff4fd092a406a45fe2aa40b Control 50 Series Declaration of Conformity     90.6 KB Oct 18, 2019
pdf_17-c246fb20baff4fd092a406a45fe2aa40b JBL Control Series Passive Speakers DoC     179 KB Dec 17, 2019
Faqs
pdf_17-c246fb20baff4fd092a406a45fe2aa40b Control 50 FAQ     159 KB Apr 29, 2019
Drawings 2 D/3Ds
download_17-78b2535bf0107dd7e9920fc8283e C52 Line File     737 KB Apr 29, 2019
Images
download_17-78b2535bf0107dd7e9920fc8283e Control 52 Hi Res Image     192 KB Apr 29, 2019
Ease Data
download_17-78b2535bf0107dd7e9920fc8283e Ease SPK/DLL Files - Full JBL Pro Line     20.5 MB Jul 08, 2019
Speaker Tunings
pdf_17-c246fb20baff4fd092a406a45fe2aa40b Commercial, CBT, and AWC Tunings 181030     557 KB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 140 Hz – 20 kHz
Frequency Response (±3 dB) 180 Hz – 17 kHz
Power Rating 50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Sensitivity 85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m)
Coverage Angle 150° x 150° (omnidirectional)
Maximum SPL (1m) 94 dB average, 100 dB peak
Impedance 16 ohms
Drivers 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
Input Connectors Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Enclosure High impact polystyrene, painted zinc-plated metal grille.
Dimensions (H x W x D) Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in)
Net Weight (each) 0.7 kg (1.5 lbs)
Shipping Weight 0.8 kg (1.8 lbs)
Included Accessories Wall bracket (both speaker and wall parts), 2-pin locking connector.
Grille Zinc-plated steel
Mounting Hardware Included wall swivel ball bracket
Optional Accessories Wall-mount ball-type bracket
JBL0880

Data sheet

Product Category Feature
Sound
Price Unit
Pair
Condition
new
Availability
in stock
Audio Product Type
Speakers
Brand
JBL
Manufacturer
JBL
Speaker Type
Passive Low Impedance Speaker
Speaker Mount Type
Surface Mount Speakers
Speaker Continuous Power Handling Wattage (W)
25W
Colour
Black

Specific References

EAN13
0050036905190
