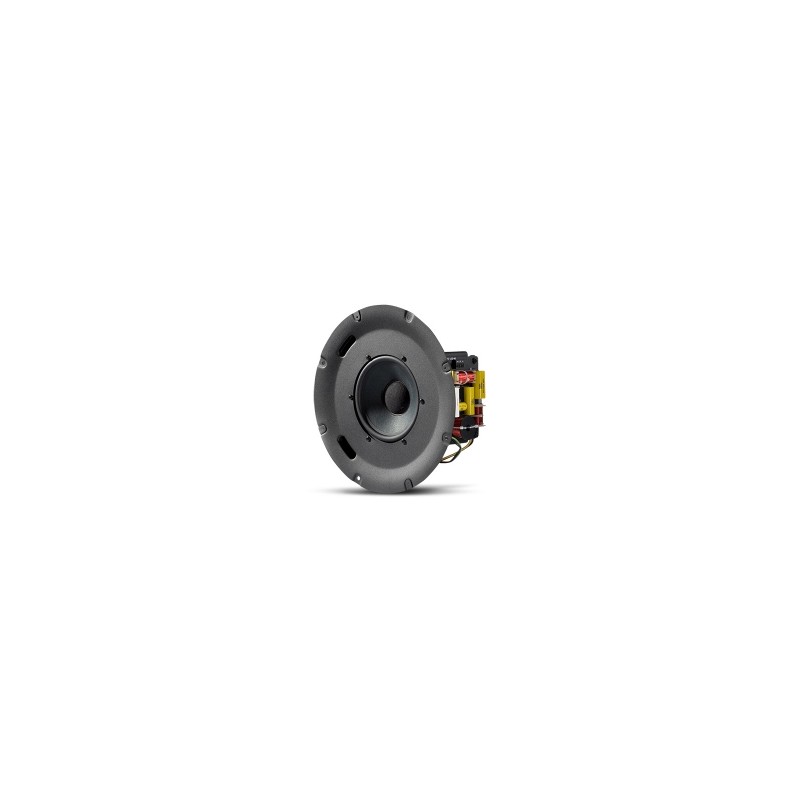

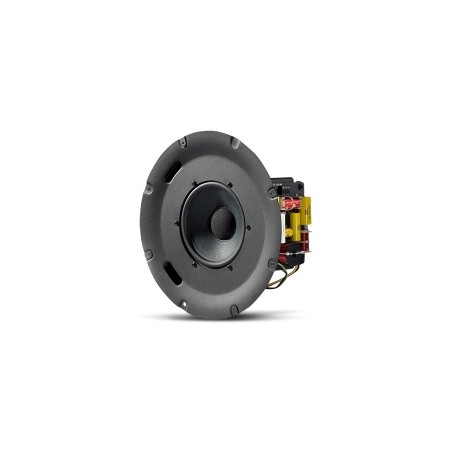

JBL Control 227C

Control 227C

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver For Use with Pre-Install Backcan
The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in ceilingmount applications.

FEATURES:

• Consistent 120° broadband pattern control for exceptional coverage.
• Coaxial design featuring:

Kevlar-reinforced 165 mm (6.5 in) woofer.
25 mm (1 in) compression driver.

• Extraordinary clarity for speech and vocals with extended frequency response for music.
• 150 Watts Power Handling.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• Separate back can and contemporary grille available. (sold separately)

SPECIFICATIONS:

• Frequency Range (-10 dB) - 43 Hz - 19 kHz
• Power Capacity - 150 W
• Sensitivity - 90 dB measured half-space, 95 dB computed for competitive comparison
• Coverage - 120 degrees
• Frequency Response (-3 dB) - 75 Hz - 17 kHz
• Nominal Impedance - 8 ohms
• Low Frequency - 165 mm (6.5 in) Kevlar reinforced cone
• High Frequency - 25 mm (1 in) exit compression driver
• Dimensions (H x Dia) - 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
• Net Weight (ea) - 4.1 kg (9.0 lb)
• Shipping Weight (pair) - 227C: 5.4 kg (12.0 lb)
