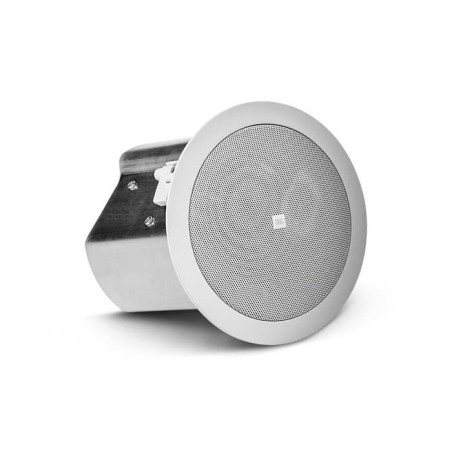

JBL Control 14C-VA Pair

JBL Control 14C-VA

Control 14C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a pre-attached blind-mount back-can for quick and easy installation. Combined 70V/100V and low impedance direct operation. 30 Watts at 8 nominal setting. 25W multi-tap at 70V/100V. 74Hz – 20 kHz bandwidth with 120° coverage.

FEATURES:

• Components:
  • 100 mm (4 in) high output driver with polypropylene cone and butyl rubber surround
  c • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
• EN54-24 Compliant
• Blind-mount backcan for quick and easy install
• Combined 70V/100V and low impedance direct operation
  • 30 Watts at 8Ω nominal setting
  • 25W multi-tap at 70V/100V
• 74 Hz – 20 kHz bandwidth with wide 120° coverage

SPECIFICATIONS:

Frequency Range (-10 dB) - 74 Hz – 20 kHz
Frequency Response (±3 dB) - 100 Hz – 15 kHz
Power Capacity (at low-Z) - 60 Watts Continuous Program Power 30 Watts Continuous Pink Noise
Rated Noise Power - 25W (25W tap)
Rated Noise Voltage - 70V/100V (with 70V/100V tap settings)
Nominal Sensitivity - 87 dB: 8 ohm tap
EN54 Sensitivity (@ 4m) - 75 dB (per EN54-24 spectrum and measurement conditions at 4 meters.)
Coverage Pattern - 120° conical coverage (1 kHz - 16 kHz)
Coverage Angels
(by Frequency)
Conical (Vertical & Horizontal) - 500 Hz: 175°
                                                  1000 Hz: 170°
                                                  2000 Hz: 150°
                                                  4000 Hz: 89°
Reference Axis - Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane
Directivity Factor (Q) - 7.6
Directivity Index (DI) - 8.1 dB
Rated Maximum SPL - 102 dB @ 1 m (3.3 ft) average, 108 dB peak
EN54 Max SPL (@ 4m) - 87 dB (per EN54-24 spectrum and measurement 25W tap, at 4 meters)
Nominal Impedance - 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz)
                                  3.2W@70V; 6.3W@100V Tap: 1600Ω
                                  6.3W@70V; 12.5W@100V Tap: 800Ω
                                  12.5W@70V; 25W@100V Tap: 400Ω
                                  25W@70V; N/C@100V Tap: 200Ω
Transformer Taps - 25W, 12.5W, 6.3W @ 70V or 100V (plus 3.2W @ 70V only)
Fuse - Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC
LF Driver - 100 mm (4 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil

HF Driver - 19 mm (3/4 in), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide
Connections - Input +, Input -, Earth (connected to backcan). Ceramic block with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire.
Gland Nut/Strain Relief - Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm  (0.36 in)
Materials - ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency - EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70; Suitable for use in air handling                                  spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems
Dimensions (H x W x D) - 196 mm diameter x 217 mm from back of baffle to back of gland nut (7.7in diameter x 8.6 in in depth)
Ceiling Cutout Size - Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range - Up to 35 mm (1.3 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic Attachment - One point, top surface
Net Weight - 2.2 kg (4.8 lbs, one speaker)
Shipping Weight - 8.2 kg (17.9 lbs, pair in master carton)
Included Accessories - C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille
Optional Accessories - MTC-14WG high humidity grille
                                    MTC-24NC new construction bracket
                                    MTC-24MR mud-ring construction bracket
                                    MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dogears for 8 speakers)
                                   MTC-48TR tile rail for 1200 mm (4 ft) tile spans
