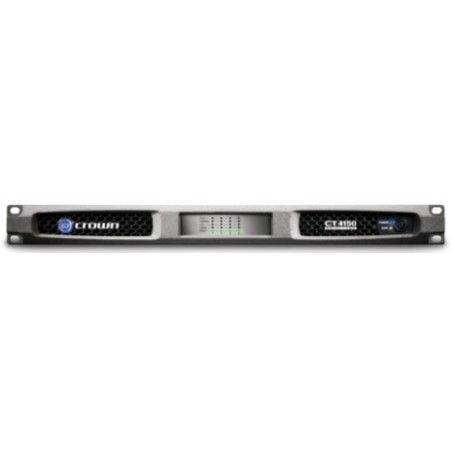

Crown CT4150 Four-channel Power Amplifier View larger

Crown CT4150 Four-channel Power Amplifier

CRO0273

New product

Crown CT4150 Four-channel Power Amplifier


Powering this remarkable amplifier is the pioneering technology of DriveCore, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime.

More details

£ 1,150.00

£ 1,380.00 inc VAT

£ 1,380.00   tax incl.

Click to configure product options.
Price Unit Each
Condition new
Availability available for order
Colour Gray

Crown CT4150 Four-channel Power Amplifier


Powering this remarkable amplifier is the pioneering technology of DriveCore, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.

Key Features

  • Flexible Input Routing
  • Convection Cooled
  • Universal Power Supply
  • Integrated Life-Safety Features
  • Up to 8X125W in 1U chassis with no fan
  • DriveCore technology provides >90% efficiency with no compromise in performance
  • Patented Feedback and Protection Circuits
  • Amplifier is stable for 2 – 16 Ohm Loads
  • XFMR 4/8 needed for 70V/100V Applications


Specifications

Channels - 4
Sensitivity - 1.4 V
Rated Power Output (all channels driven) - 125W per CH @ 4 ohms, 125W per CH @ 8 ohms
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) - 110 dB
THD (full rated power, 20 Hz - 20 kHz -) < 0.05%
Intermodulation Distortion (from 0 dB down to -30 dB) - < 0.05%
Frequency Response (at 1W, 4/8 ohms) - +/- 0.5 dB
Crosstalk (below rated power) 20 Hz to 1 kHz - > 70 dB
Common Mode Rejection (20 Hz to 1 kHz) - > 55 dB, typically > 70 dB
Voltage Gain - 27 dB
DC Offset - +/- 20mV
Idle Power Consumption (Standard Mode) - 17.5W
Dimensions - 1.75" x 19" x 15.19"
Weight - 10lbs/4.54kg
Shipping Weight - 15 lbs/6.8 kg
IEC Power Connector - 15A
