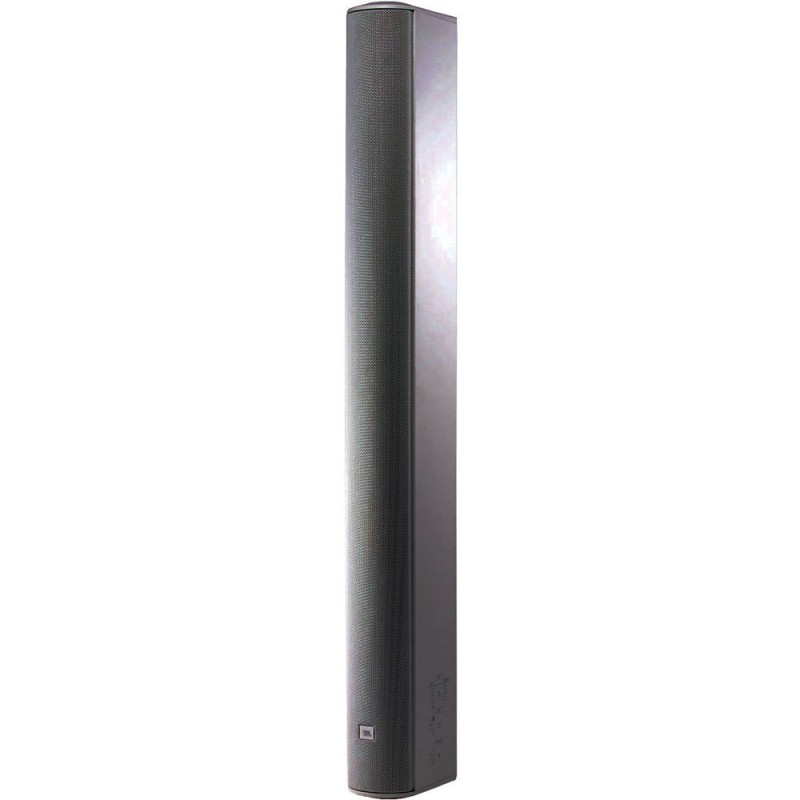

JBL CBT 100LA-1 View larger

JBL CBT 100LA-1 Each

JBL1151

New product

CBT 100LA-1

Constant Beamwidth Technology Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.
The CBT 100LA-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control consisten

More details

£ 1,140.00

£ 1,368.00 inc VAT

£ 1,368.00   tax incl.

Click to configure product options.
Condition new
Availability preorder
Manufacturer JBL
Colour Black

CBT 100LA-1

Constant Beamwidth Technology Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.
The CBT 100LA-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

FEATURES:

  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.

SPECIFICATIONS:

  • Components - Sixteen 50 mm (2 in) Full-Range
  • Frequency Range (-10 dB) - 80 Hz – 20 kHz
  • Vertical Coverage - Vertical, Narrow Mode: 15° (2 kHz - 16 kHz) (±10°), Broad Mode: 40° (1 kHz - 16 kHz) (±10°) and Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
  • Sensitivity (2.83V@ 1m) - Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ), (music mode) 93 dB (300 Hz - 18 kHz) and Broad: (speech mode) 93 dB (2 kHz - 14 kHz), (music mode) 90 dB (300 Hz - 18 kHz)
  • Nominal Impedance - 8 ohms (in Thru mode)
  • Power Capacity (8 ohm setting) - 325 W (1300W peak), 2 hrs and 200 W (800W peak), 100 hrs
  • Max SPL - Narrow: (speech mode) 121 dB cont ave (127 peak), (music mode) 118 dB cont ave (124 peak) and Broad: (speech mode) 118 dB cont ave (124 peak), (music mode) 115 dB cont ave (121 peak)
  • 70V/100V Transformer Taps - 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
  • Enclosure - Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Outdoor Capability - IP-54 rated, per IEC529. UV, moisture and salt-spray resistant
  • Colors - Black or White (-WH)
  • Insert Points - 18 M6 insert points on back panel.
  • Mounting - Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
  • Dimensions (H x W x D) - 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
  • Net Weight - 7.2 kg (15.8 lb)
  • Included Accessories - Swivel (pan) / tilt wall bracket
  • Optional Accessories - MTC-PC2 terminal panel cover, MTC-CBT-FM1 flush-mount low-profile wall-mount bracket and MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
