Bose DesignMax DM8C 125W 8Ohm or 100V Line Ceiling Mount Speakers in Black Each


New product

Bose DesignMax DM8C 125W 8Ohm or 100V Line Ceiling Mount Speakers in Black Each

Coverage (HxV): 175° conical

Maximum SPL @1m: 111dB

Frequency Range: 52-20,000Hz

Power continuous:125W

Nominal Impedance: 8 Ω / 100V

More details

£ 535.00

£ 642.00 inc VAT

£ 642.00   tax incl.

Click to configure product options.
Product Category Feature Sound
Price Unit Each
Condition new
Availability in stock
Audio Product Type Speakers
Brand Bose
Manufacturer Bose
Speaker Type Passive 100V or 70V Line Speaker
Speaker Mount Type Ceiling Mount Speakers
Speaker Continuous Power Handling Wattage (W) 125W
Colour Black
Bose DesignMax DM8C 125W 100V Line Ceiling Mount Speakers in Black Each

DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

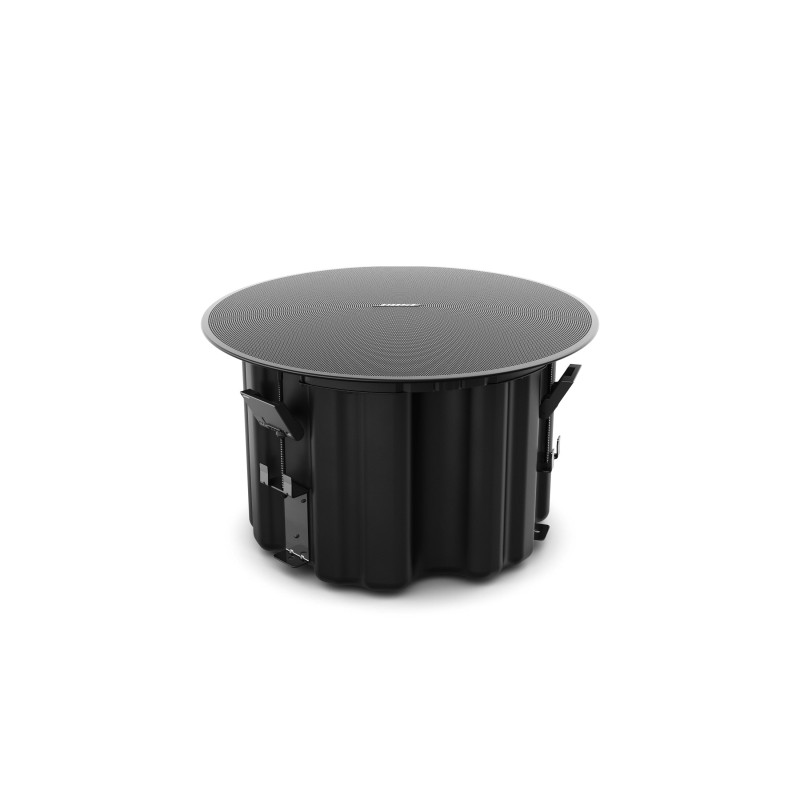

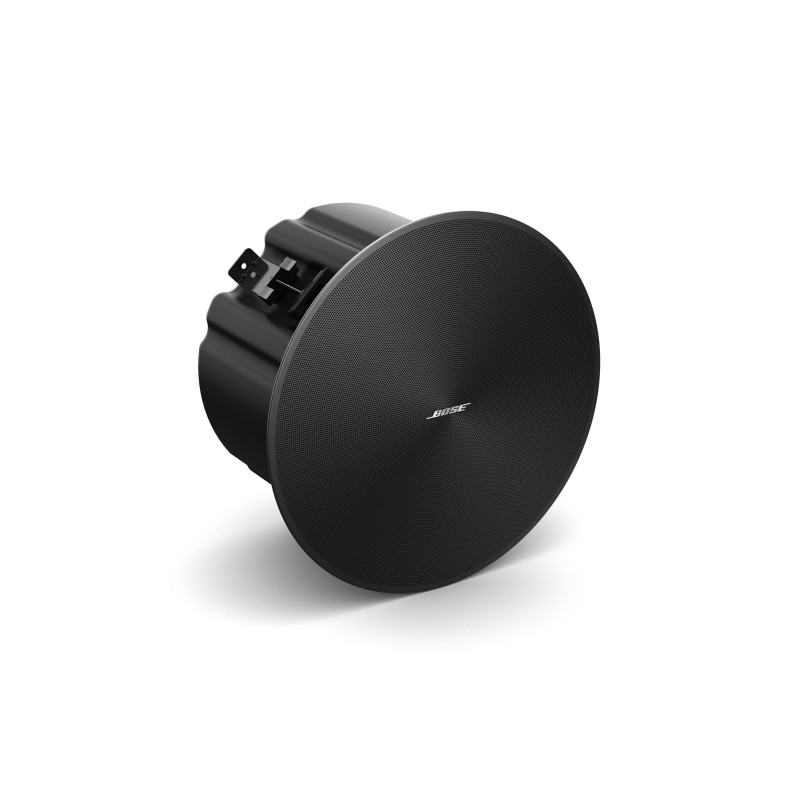

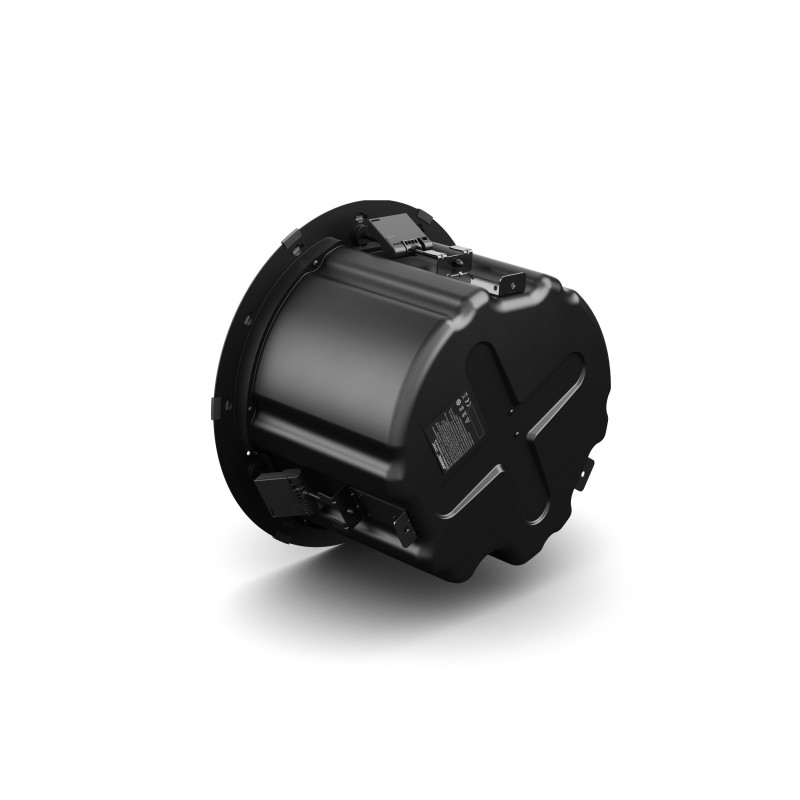

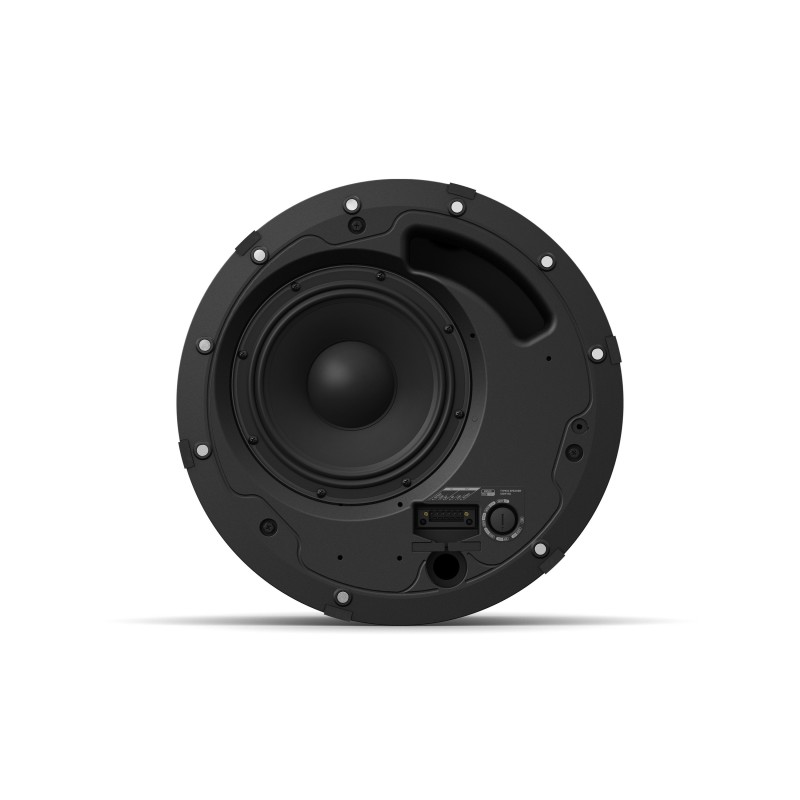

Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8C loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 51 Hz - 20 kHz frequency range. The DM8C is ceiling-mounted and installs easily via QuickHold mounting arms.


Combine models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

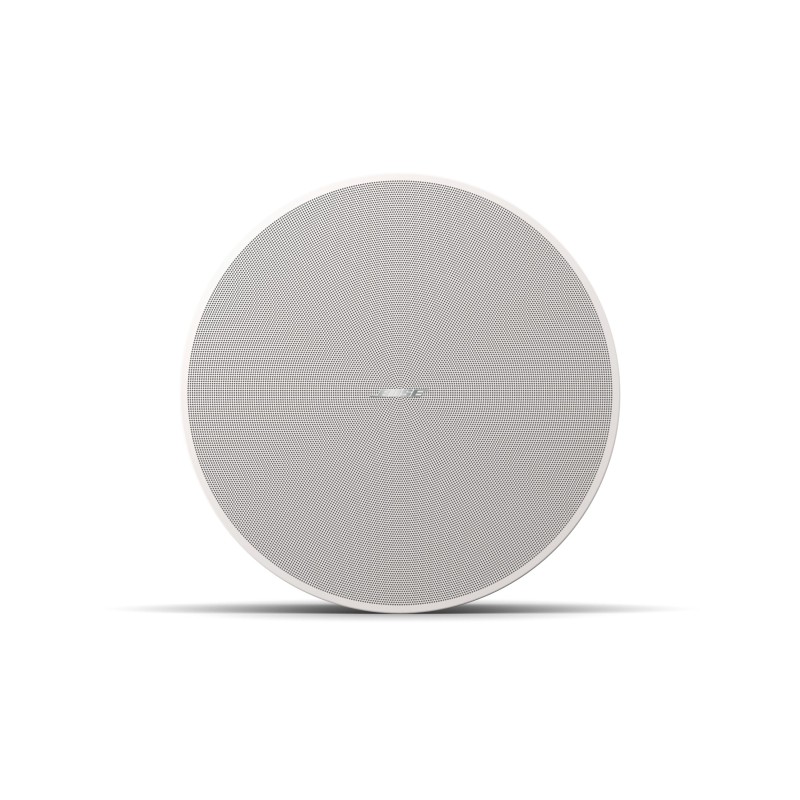

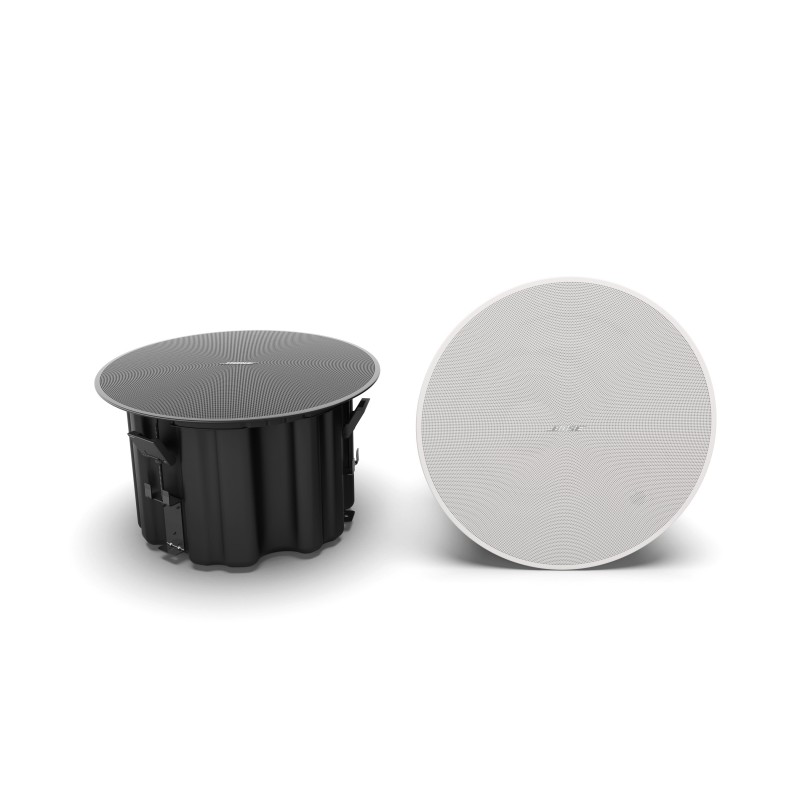

Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

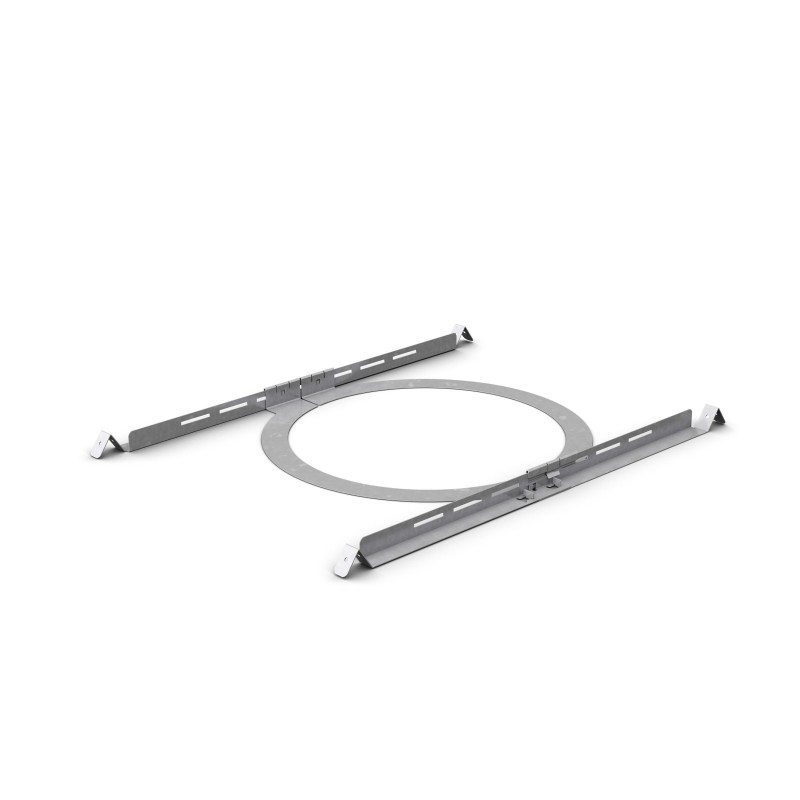

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

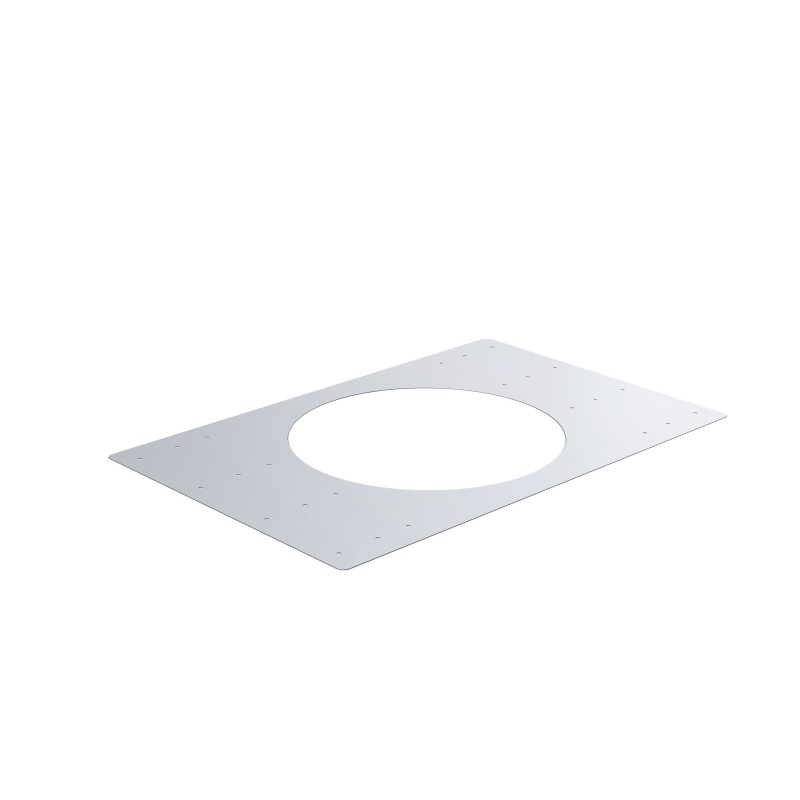

Install easily — all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier

Deliver high SPL for demanding applications, including high-ceiling venues such as ballrooms, concourses, and convention centers


  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues


Technical Summary

Frequency Response (+/-3 dB)
60 - 20,000 Hz

Nominal coverage (H x V)
175° conical

Power Handling, peak
500 W

Maximum SPL @ 1m
111 dB

Frequency Range (-10 dB)
52 - 20,000 Hz

Power Handling, long-term continuous
125 W

Sensitivity (SPL/1W @ 1 m)
90 dB

Nominal Impedance
8 Ω (transformer bypass)
