Synergy 1080 8 button controller on single gang panel with UK psu

Synergy 1080 8 button controller on single gang panel, with UK psu.

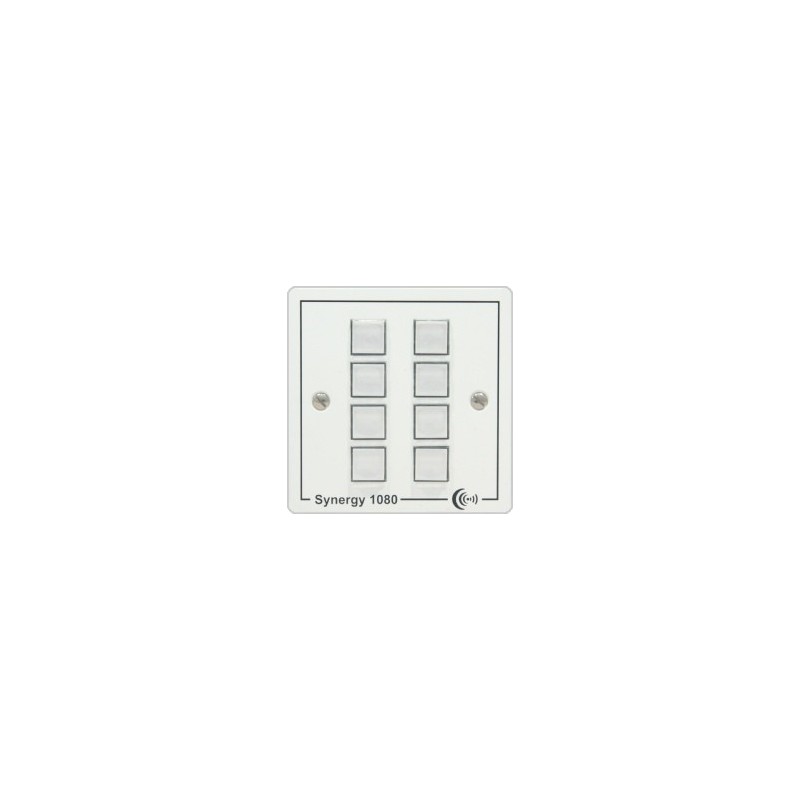

The Synergy 1080 is an 8 button controller mounted on a UK 1 gang white metal panel. Ideal for basic control of projectors, plasma and LCD's displays via RS232, IR or both.

Key Features
A bi-directional RS232 port gives control over projectors, displays and other RS232 devices.
IR port supporting emitters for control of devices such as video players, receivers and amplifiers.
Input which can be used with an external PIR sensor for room occupancy sensing or used as an extra button input.
Two outputs can be configured to control motorised screens, projector lifts, projector power switching or be controlled independently by any button
Using the Syn-Link port panels can be linked, control Synergy peripherals or be controlled from a PC.
Panel functionality can be expanded by purchasing firmware upgrades.

Description
The Synergy 1080 is an 8 button controller mounted on a UK 1 gang white metal panel. Ideal for basic control of projectors, plasma and LCD's displays via RS232, IR or both.

RS232 and IR commands can be loaded from the embedded libraries or user created files.

Two outputs are provided for control of external relays or indicators for screen control etc.It also has one external input for use with an external switch or a PIR detector for additional control functions or shutdown.

The 1080 can be programmed using the quick and easy software using a simple menu structure with 'drag and drop' configurations along with both central and user created libraries for both RS232 and IR functions.

The Syn-Link port provides linking of panels in multi-room systems, connection to Synergy peripherals or control from a PC. This port can be upgraded to operate as a second bi-directional serial port to control other equipment.

Automatic button label generation and printing is included within the software.

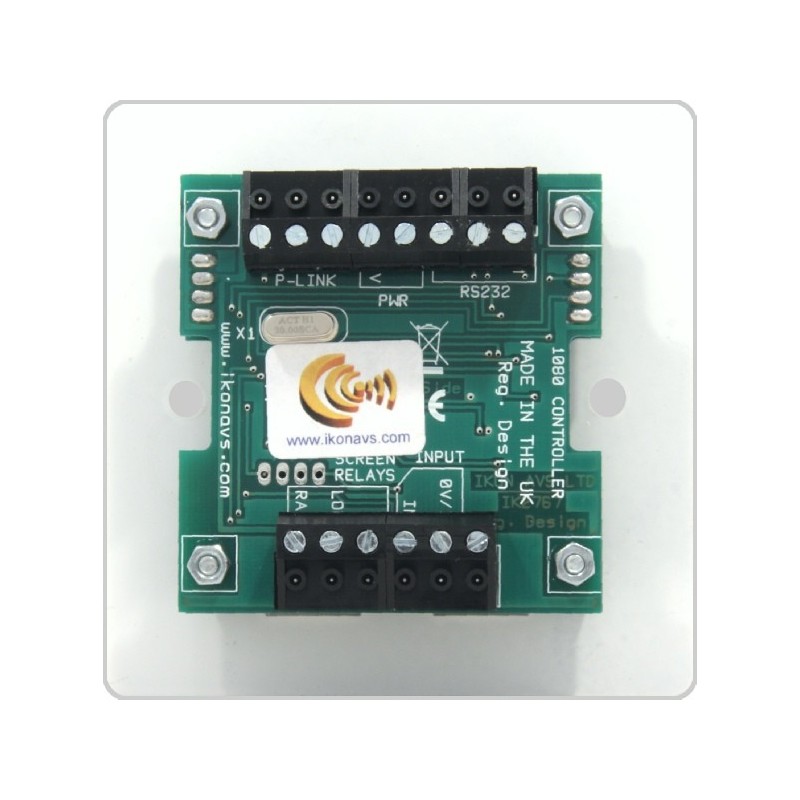

Detachable screw terminals are used for all outgoing and power connections for ease of installation.

Power supply included. UK supplied normally or add "/EU" to order code for European supply.

With the additional EtherLink 232, this unit can link direct into a Ethernet backbone. This will give control of multiple other devices as well as control of the Synergy 1080 over Ethernet via your LAN / WAN network or even over the Internet.

Specification
Hardware devices
8 Push Buttons
8 Green LED's
1 Bi-directional RS232 Port, 2 on Synergy 1081 and 1082
1 IR Output
1 Digital Input
2 Open collector outputs

Power requirements
12V DC @ 110mA max. (all LEDs on)
Overall size = 85mm x 85mm
Required depth = 30mm ( 44mm back box recommended )
Net weight = 110g
