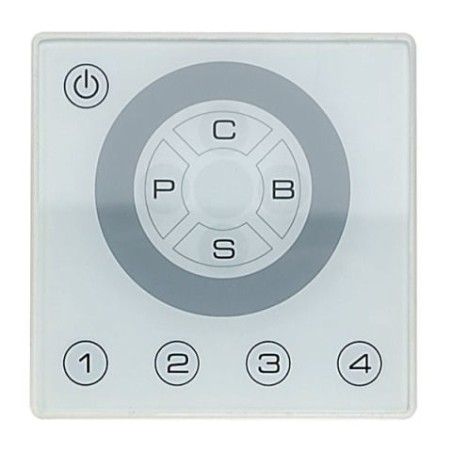

RGB DMX Wall Plate Controller in White 3 Channel with Presets and 3x2A RGB 12-24V Output
search
  • RGB DMX Wall Plate Controller in White 3 Channel with Presets and 3x2A RGB 12-24V Output
  • RGB DMX Wall Plate Controller in White 3 Channel with Presets and 3x2A RGB 12-24V Output

RGB DMX Wall Plate Controller in White 3 Channel with 4 Scene Presets and 3x2A RGB 12-24V Output

£192.00
Tax included
£160.00 Tax excl.

RGB DMX Wall Plate Controller in White 3 Channel with Presets and 3x2A RGB 12-24V Output

Input voltage: 12 - 24 VDC
Output current: 3x2 A
Channels: 3
Dimming: DMX

Quantity

Ask a Quote
RGB DMX Wall Plate Controller in White 3 Channel with Presets and 6A RGB 24V Output

DMX 512 output & built-in PWM dimmer pack

Max. PWM output 6A (RGB output 3X 2A)
LED indicator to display the current output
Four function menus
Playback 4-9 preset scenes/colors
Set fade time for Power on/off
Set color exchange in the range of 0 to 4s
Assign key tone ON/OFF
Select input voltage in DC12-24V according to the output loading voltage
Function memory and power failure protect

Specifications

Input voltage: 12 - 24 VDC
Output current: 3x2 A
Channels: 3
Dimming: DMX
Dimensions: 85x85x15.5 mm
Product weight: 0.1 Kg
Operating temperature: 0 - +40°C
IP rating: IP20
Protection class: III

RGB-DMX-3CH-WPW

Specific References

EAN13
3423317949751
