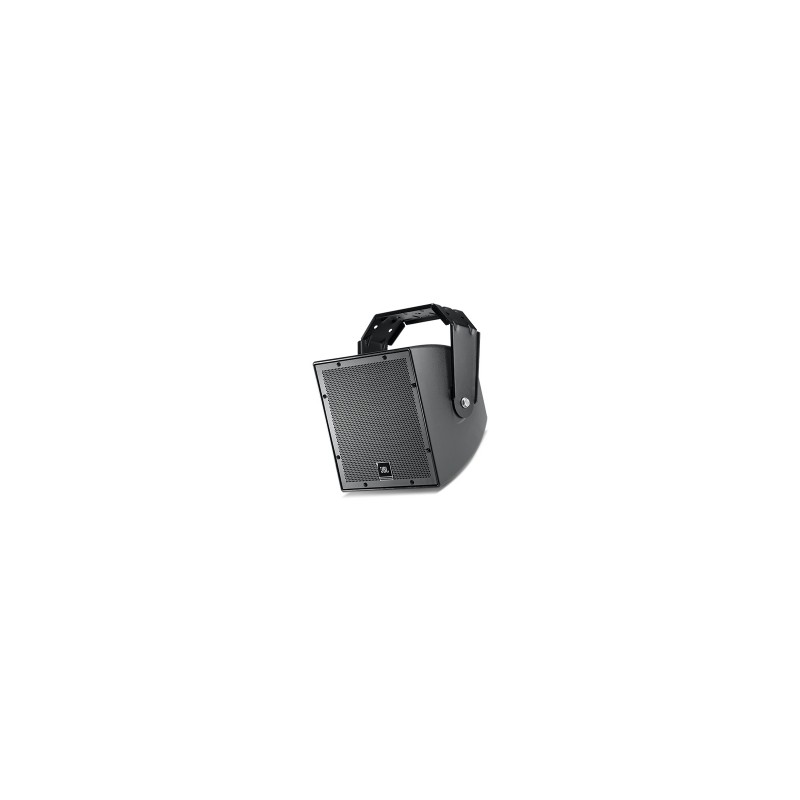

JBL AWC82 IP56 Loudspeaker Monitor in Black Each View larger

JBL AWC82 IP56 Loudspeaker Monitor in Black Each

JBL1212

New product

AWC82

All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF

FEATURES:

  • Highly weather-resistant IP56 rating
  • Consistent 120° x 120° broadband pattern control
  • Components:

• 200 mm (8 in) woofer wit

More details

£ 625.00

£ 750.00 inc VAT

£ 750.00   tax incl.

Click to configure product options.
Price Unit Each
Condition new
Availability preorder
Manufacturer JBL
Colour Black

AWC82

All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF

FEATURES:

  • Highly weather-resistant IP56 rating
  • Consistent 120° x 120° broadband pattern control
  • Components:

• 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.
• 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.

  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection
  • 80 Hz – 20 kHz frequency response.
  • 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

SPECIFICATIONS:

  • Frequency Range (-10 dB) - 80 Hz – 20 kHz
  • Frequency Response (±3 dB) - 100 Hz – 20 kHz
  • Coverage Pattern - 120° x 120°
  • Directivity Factor (Q) - 8.1 (1 k – 16 kHz)
  • Directivity Index (DI) - 8.4 dB (1 k – 16 kHz)
  • Long-Term System Power Rating (IEC) - 250 W 2 hrs. 200 W 100 hrs
  • Sensitivity (2.83V @ 1m) - 94 dB (Ave. 100 Hz – 20 kHz)
  • Maximum SPL - Direct 8Ω: 118 dB (peaks of 124 dB), 200 W Tap: 117 dB
  • Crossover Network - 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
  • Nominal Impedance - 8 ohms
  • Transformer Taps - 70V: 200W, 100W, 50W, 25W and 100V: 200W, 100W, 50W
  • Low Frequency Driver - Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
  • High Frequency Driver - 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
  • HF Driver Protection - Minimum audibility SonicGuard HF overload protection
  • Enclosure - ABS with Glass enclosure, heavily braced
  • Attachment - Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
  • Grille - Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
  • Input Connection - CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
  • Environmental - IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
  • Dimensions - 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut, 359 mm (14.2 in) including bracket extending to back
  • Colors - Available in gray (similar to Pantone 420C) and black (-BK)
  • Net Weight - 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
  • Shipping Weight - 14.1 kg (31.0 lb)
  • Included Accessories - U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
