JBL AC195-WH

£1,080.00
Tax included
£900.00 Tax excl.

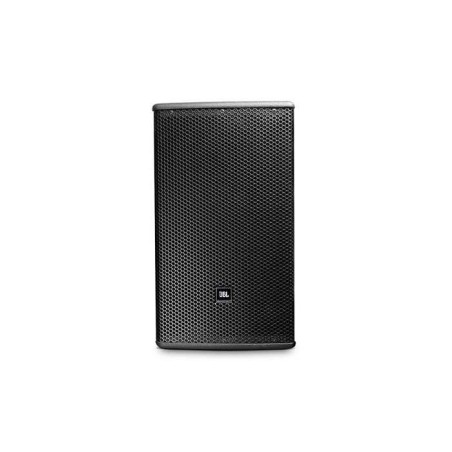

JBL AC195-WH

Compact 2-way full-range loudspeaker system, 10” LF transducer, 90° x 50° Progressive Transition Field Rotatable Waveguide with a 1" exit 1.5" voice-coil compression driver, dual Neutrik NL4 connectors plus screw terminals, multiple attachment points.

Quantity

JBL AC195-WH

Compact 2-way full-range loudspeaker system, 10” LF transducer, 90° x 50° Progressive Transition Field Rotatable Waveguide with a 1" exit 1.5" voice-coil compression driver, dual Neutrik NL4 connectors plus screw terminals, multiple attachment points. Frequency range 68Hz - 20kHz, nominal impedance 8 Ohms, 118db max SPL, system sensitivity 95db. Black or white.

Features

  • Compact enclosure
  • 258 mm (10 in) LF transducer
  • 90° x 50° Progressive Transition Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities

Specifications

Frequency Range (-10 dB) - 68 Hz - 20 kHz
Frequency Response (±3 dB) - 85 Hz - 18kHz
System Sensitivity (1w @ 1m) - 95 dB
Nominal Impedance - 8 ohms
Maximum SPL (1m) - 118 dB (124 dB peak)
Power Rating
(Continuous/Program/Peak) - 200 W/400 W/800 W
Coverage Pattern - 90° x 50° (H x V)
Crossover - 1.8 kHz
Low Frequency Driver - 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver
                                    with 66 mm (2.5 in) voice-coil
High Frequency Driver - 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector - Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure - 15 mm multi-ply hardwood plywood
Grille - Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish - Textured black paint finish. White (-WH) available upon request. Not available with WRC &                 WRX finish.
Suspension / Mounting - 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-                                                 bracket and wall-mount bracket
Dimensions (H x W x D) - 535 mm x 310 mm x 329 mm
                                        21.0 in x 12.2 in x 12.9 in
Net Weight - 13.1 kg (28.8 lbs)

JBL1761

Data sheet

Price Unit
Each
Condition
new
Availability
preorder
Brand
JBL
Manufacturer
JBL
Colour
White

Specific References

EAN13
3415702161275
