Rako WCM-060 The 6-Button Wired Modular Panel connects to the RAKOM wired CAT5

Rako WCM-060 The 6-Button Wired Modular Panel connects to the RAKOM wired CAT5

DESCRIPTION:

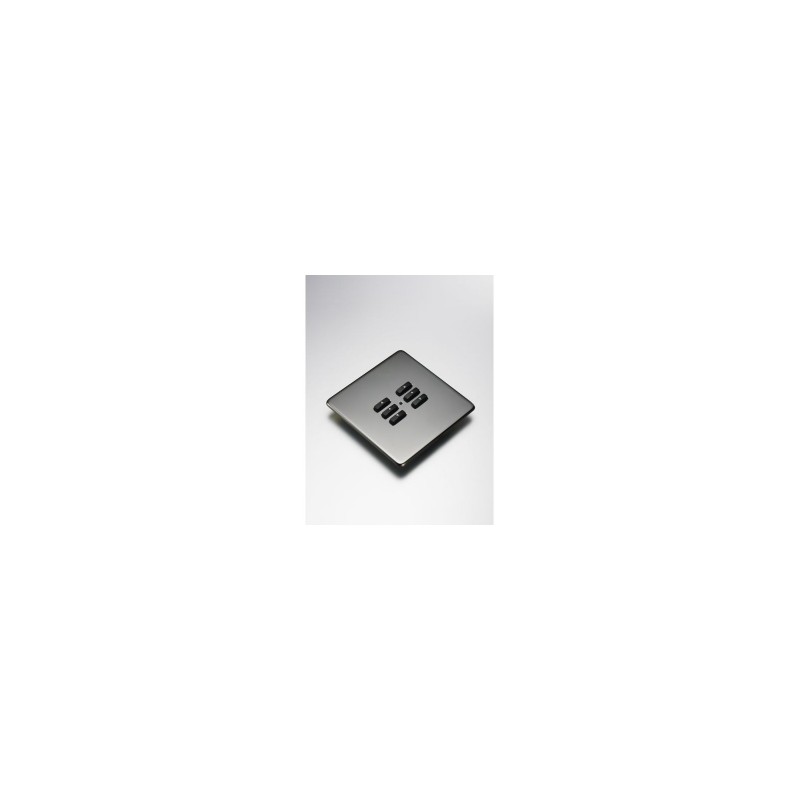

A hard wired 6 button push button control module that has several fixing options.  Based upon the widely used 50x50mm Euro Module switch plate accessory standard.  Rako flat plate and screwless switch plate kits are available in a selection of finishes including: White, Brushed, Stainless Steel, Mirrored Stainless Steel, Polished Brass, Black Nickel

ULTIMATE CONTROL

The WCM-060 push button control module comes pre-configured for two sets open, stop and close.  Each button is complete with a blue LED indicator and day-night etched buttons.  Easy connection to the RACOM wired CAT5 network is by a removable 8 way Krone punch down module that can be installed at first fix stage prior to the push button front control module. This protects the control module from being damaged while building works are being finished.  The module is suitable for installation in any of the standard Rako fixing solutions and is also suitable for all switch accesory plates that use a 50x50mm grid and cover plate arrangement.  Using RASOFT programming software it is possible to configure each button individually to carryout a number of different tasks, for example: Scene selection, Scene toggle on/off, Channel toggle on/off, Master raise & lower, Channel raise & lower Macro start/stop Local room or global off LED indicators are individually programmable to follow the logic of the above functions.  Custom button laser engraving is available to match.
