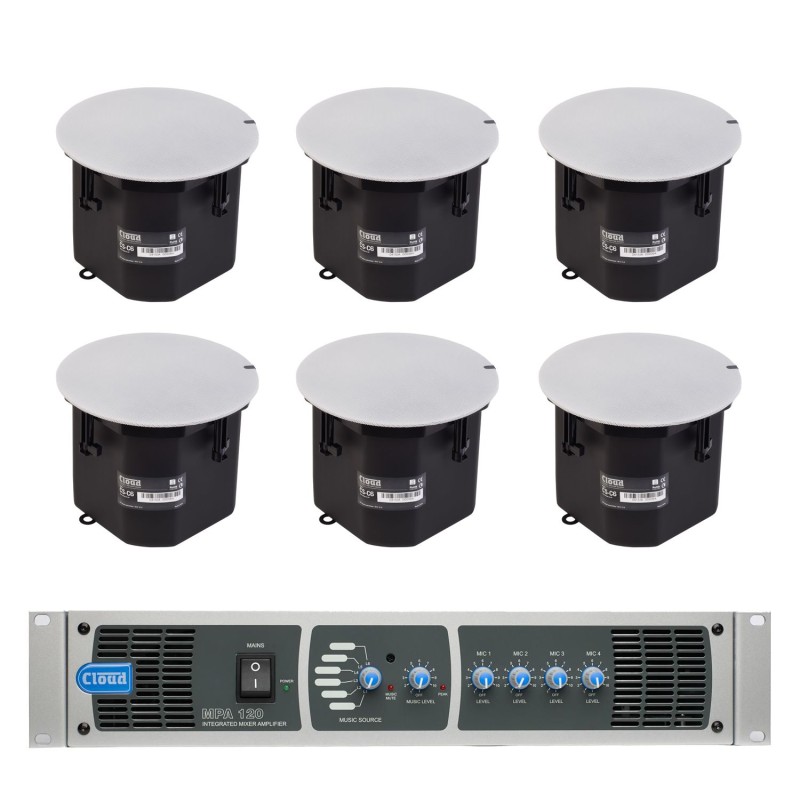

Cloud MPA120-SP Speaker System 6x CS-C6 Ceiling Mounted Speakers with Mixer Amplifier 120W 6 Line Inputs 4 Mic Inputs

Cloud MPA120-SP Speaker System -  6 x CS-C6 Ceiling Mounted Speakers with Mixer Amplifier 120W 6 Line Inputs 4 Mic Inputs Single Zone with Remote Volume and Select Facility Port

​

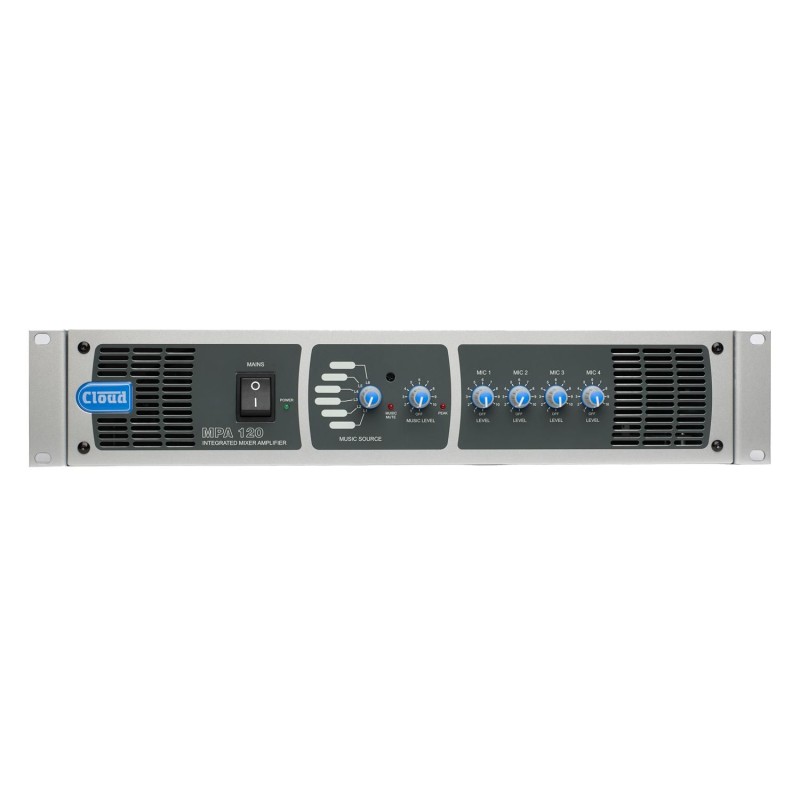

The increase in demand for higher quality mixed impedance output amplifiers for general installer applications has instigated the launch of Cloud Electronics new MPA Series. 6 line + 4 microphone inputs into a single zone with configurable 25/70 or 100V internal transformer plus the industry standard wall mount remote controllers (RL1 & RSL6) make the MPA Series the most flexible and reliable installer amps in the market.

Product Features:

• 6 line inputs, stereo inputs summed to mono
• Line inputs via RCA phonos with input gain controls adjacent to connectors
• Source select via front panel rotary selector or remote via RSL6
• Line input level via front panel control or remotely via RL1 or RSL6
• Line 6 priority selectable by internal jumper, release time 3s/6s/12s selectable by internal jumper
• Music EQ by tamperproof LF and HF presets on rear panel
• 4 Mic inputs, low impedance balanced via phoenix style connectors
• Microphone EQ by tamperpoof LF and HF presets on rear panel
• 100Hz High Pass dedicated filter on Mic inputs
• Phantom power selected by internal jumper for each microphone
• Limiter dedicated to microphone inputs
• Mic 1 has access triggered priority over Mics 2-4
• All Mics have VOX priority over music signals, providing 30dB of attenuation
• Integrated chime triggered by access control of Mic 1
• Compatible with Bose EQ Series IIS EQ Cards
• Remote Music Mute configurable for NO or NC operation
• Overall "Peak Limiter" with LED indication on front panel

Accessories:

• RL-1 & RL-1A Remote Music Level Control
• RSL-6 Remote Music Source Select
• BOSE Loudspeaker EQ Card
• EQ Cards for Amina AIWX & LFiT Loudspeakers
• RSL-6B Remote Source / Volume Level Select Plate in Black
• RSL-6W Remote Source / Volume Level Select Plate in White
• RL-1B Remote Volume Level Control Plate in Black
• RL-1W Remote Volume Level Control Plate in White
• RL-1MW Remote Volume Level Media Control Plate in White
• XLR-F1B XLR Input Module - Black - Female
• XLR-F1W XLR Input Module - White - Female
• XLR-M1B XLR Input Module - Black - Male
• XLR-M1W XLR Input Module - White - Male
• RSL-6MW Remote Source / Volume Select Media Plate in White
• RL-1MB Remote Volume Level Media Control Plate in Black
• RSL-6MB Remote Source / Volume Select Media Plate in Black
• PM1 Paging Microphones

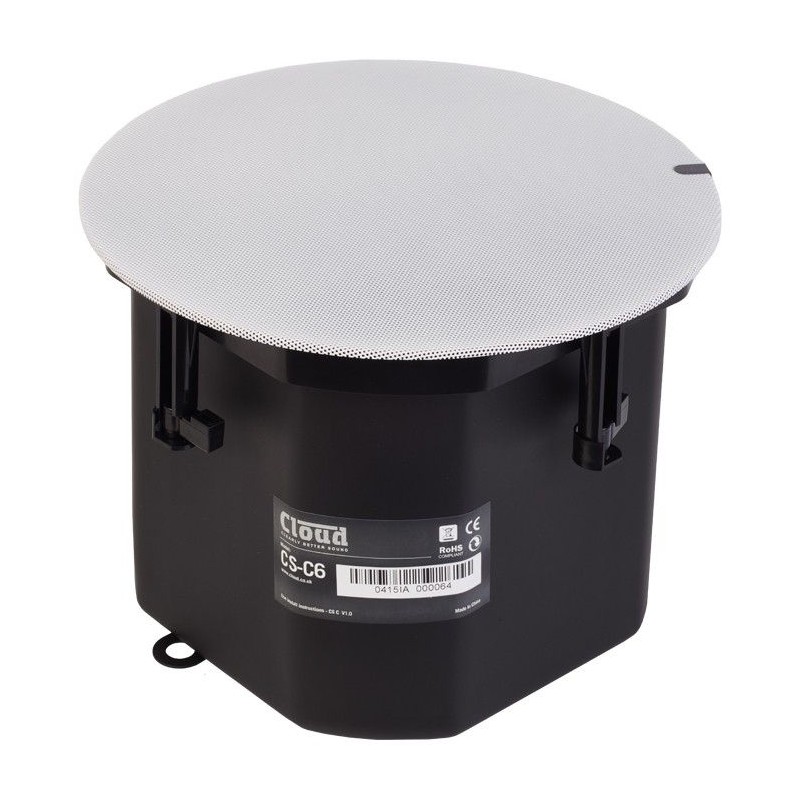

6x Cloud CS-C6W White or CS-C6B Black 50W 100V Line Ceiling Speaker

The Cloud CS-C6 In-Ceiling Speaker is a 6-inch coaxial two-way loudspeaker featuring exceptional intelligibility and musical performance. Using premium drivers and electronics, the CS-C6 offers high sensitivity, smooth frequency response and excellent off-axis performance. All models offer ZeroEdge magnetic grilles which reveal the high/low impedance switch settings for distributed audio systems.

Features

• 2-way concentrically mounted drivers offering consistent dispersion across broad frequency ranges.
• 6.5" Treated Paper Woofer with Rubber Surround
• 1" Silk Dome Tweeter with phase plug
• Deep backcan design (200mm)
• Magnetic speaker grilles available in Black or White.
• Accessible high-impedance or low impedance switch settings.
• Removable logos to allow for discrete use.
• 100v - 32W, 16W, 8W, 4W or 50W
• 70v - 32W, 16W, 8W, 4W, 2W or 50W
• 25v - 4W, 2W, 1W, 0.5W, 0.3W or 50W
• Nom SPL: 88dB@1mt Max SPL: 105db@1mt.
• Optional Tile Bridge.
• Dims: 286.0mm x 210.2mm.
• Weight: 3.3kg net, 4.1kg gross.
• Cutout: 271.0mm
