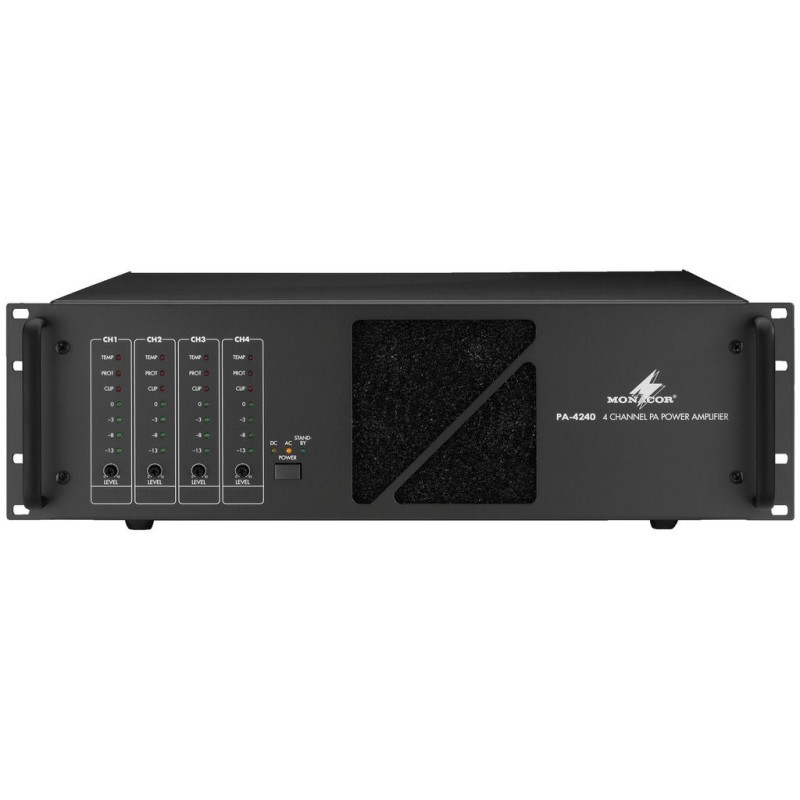

MONACOR PA-4240 4x 240W 100V Line Digital Quad Power Amplifier 960W 100V Total

View larger

MONACOR PA-4240 4x 240W 100V Line Digital Quad Power Amplifier 960W 100V Total

Reference: PA-4240

Condition: New product

MONACOR PA-4240 4x 240W 100V Line Digital Quad Power Amplifier 960W 100V Total

4 x 240 W (PA-4240)
Routing switches for parallel operation on 2 channels each
Temperature-controlled fan
Connection for external on/off switch
LED indication for clip, protect, overtemperature and output level
Mains operation or 24 V emergency power

Share on Facebook!
Send to a friend
Send to a friend
MONACOR PA-4240 4x 240W 100V Line Digital Quad Power Amplifier 960W 100V Total
MONACOR PA-4240 4x 240W 100V Line Digital Quad Power Amplifier 960W 100V Total

4 x 240 W (PA-4240)

Routing switches for parallel operation on 2 channels each

Temperature-controlled fan

Connection for external on/off switch

LED indication for clip, protect, overtemperature and output level

Mains operation or 24 V emergency power
Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Product Category Feature	Sound
Price Unit	Each
Availability	available for order
Brand	Monacor
Manufacturer	Monacor
Number of Input Channels	4 Channel
Number of Output Channels	4 Channel
Wattage per Channel (W)	240W
Output Line Voltage	70V or 100V Line
Total Power Wattage (W)	960
Product Rack Height	4U

MONACOR PA-4240 4x 240W 100V Line Digital Quad Power Amplifier 960W 100V Total

4 x 240 W (PA-4240)
Routing switches for parallel operation on 2 channels each
Temperature-controlled fan
Connection for external on/off switch
LED indication for clip, protect, overtemperature and output level
Mains operation or 24 V emergency power

Technical specifications PA-4240

PA-4240
Channels	4
Power rating	960 W
Power rating at 4 Ω	4 x 240 W
Power rating at 100 V	4 x 240 W
Output impedance	31 V/4 Ω, 50 V/10.4 Ω, 70 V/20 Ω, 100 V/42 Ω
Inputs	1.2 V, bal.
Frequency range	55-17,000 Hz, -3 dB
S/N ratio	> 90 dBA
THD	< 1%
Power supply	~ 230 V/50 Hz/2,720 VA, DC 24 V/113 A
Mains voltage	~ 230 V
Mains frequency	50 Hz
Power consumption, operation	2,720 VA
Operating voltage (possible alternative)	DC 24 V
Power supply (possible alternative)	DC 113 A
Admiss. ambient temp.	0-40 °C
Dimensions	483 x 133 x 370 mm, 3 RS
Width	483 mm
Height	133 mm
Depth	370 mm
Rack spaces, RS	3
Weight	28 kg
Connections	4 x XLR (inputs), screw terminals (speakers)
