Wall-16-PODULE - 16 button wall podule on 2G Stainless UK panel with UK PSU

Reference: Wall-16-PODULE

Condition: New product

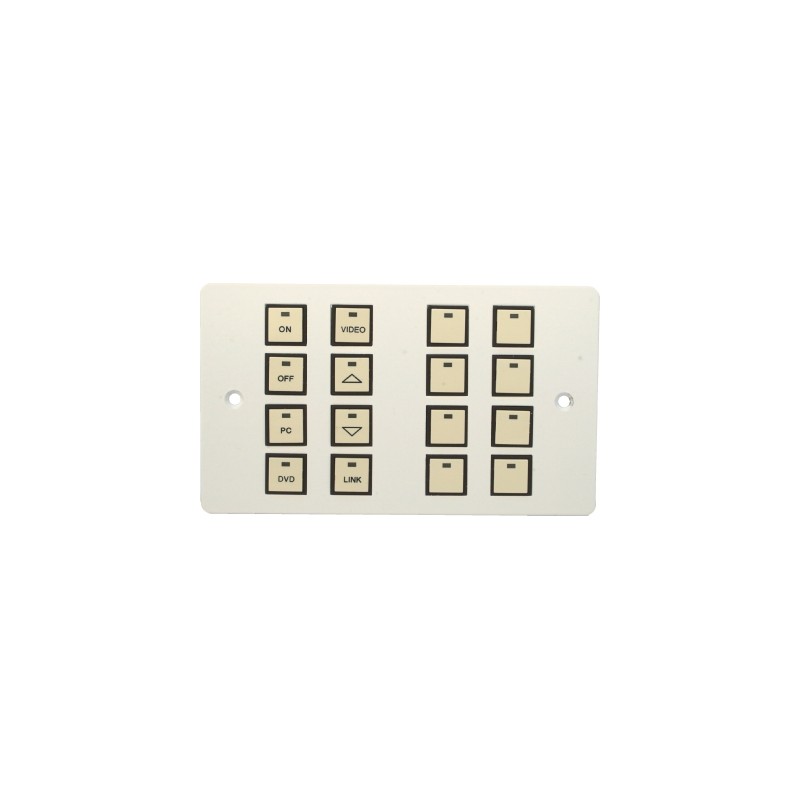

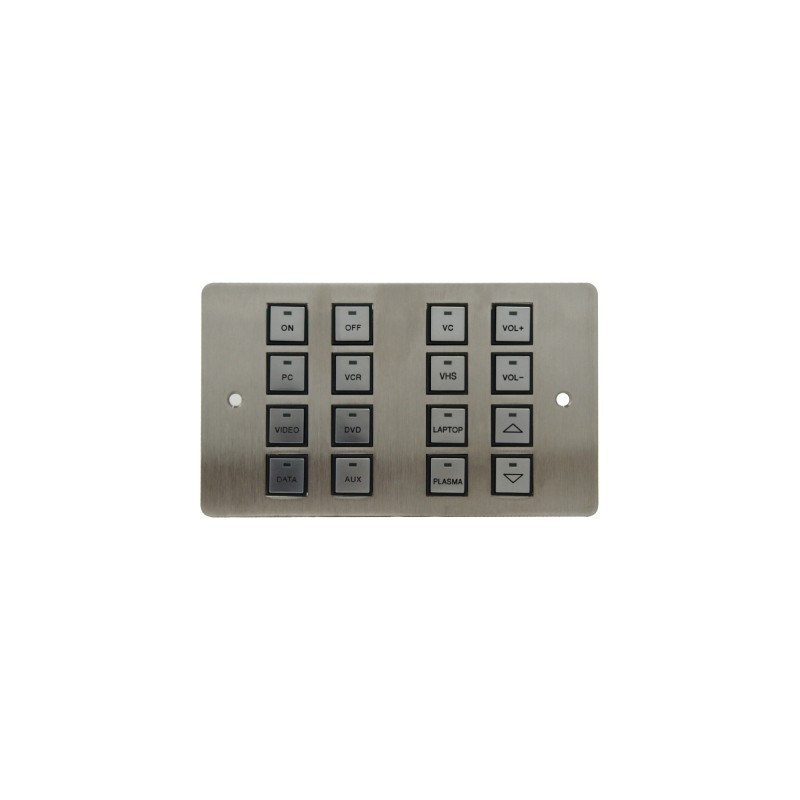

Wall-16-PODULE - 16 button wall podule on 2G Stainless UK panel, with UK PSU.

The answer to the requirement for a multifunction and expandable control unit on a two gang plate.

Key Features:

Available in Stainless steel or white painted steel
16 x Push Buttons with Green LED's
2 Bi-directional RS232 Port

More details

Share on Facebook!
Send to a friend

Send to a friend

Wall-16-PODULE - 16 button wall podule on 2G Stainless UK panel with UK PSU

Wall-16-PODULE - 16 button wall podule on 2G Stainless UK panel, with UK PSU.

The answer to the requirement for a multifunction and expandable control unit on a two gang plate.

Key Features:

Available in Stainless steel or white painted steel
16 x Push Buttons with Green LED's
2 Bi-directional RS232 Port

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Condition	new
Availability	available for order

Wall-16-PODULE - 16 button wall podule on 2G Stainless UK panel, with UK PSU.

The answer to the requirement for a multifunction and expandable control unit on a two gang plate.

Key Features:

Available in Stainless steel or white painted steel
16 x Push Buttons with Green LED's
2 Bi-directional RS232 Port
2 Infra-red Outputs
2 Open Collector outputs.
2 Digital inputs.
Range of engraved buttons available in silver or ivory Click Here to see
Stainless steel panels can be provided with custom engraving .

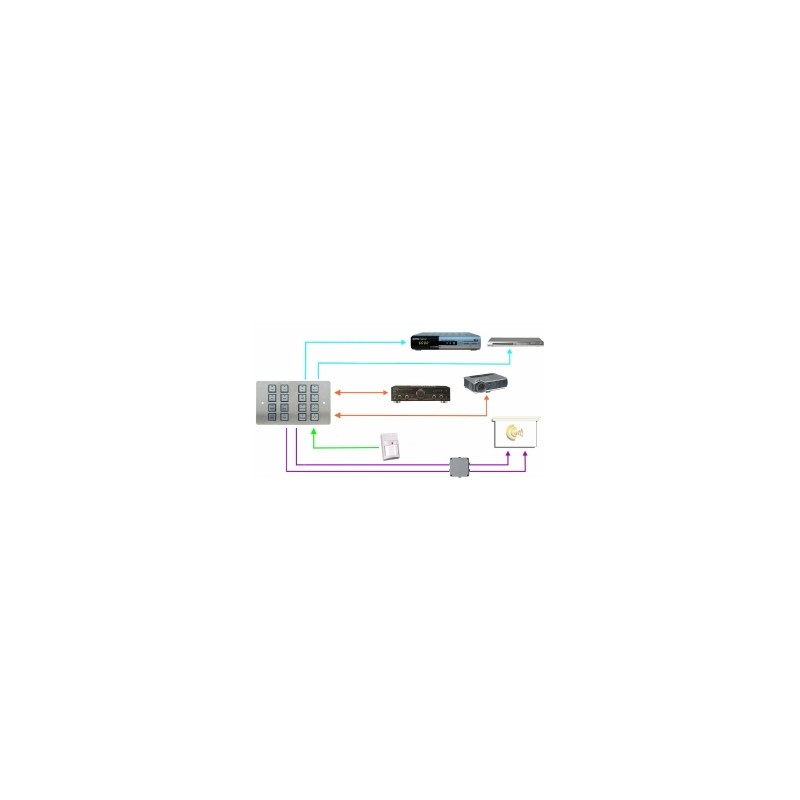

Ideal for projectors, plasma and TFT screen control in place of handsets. The Wall 16 may be programmed to access any available RS232 commands such as on, off, input select and volume, and with multifunction buttons one press can establish a series of events for seamless operation and timed events such as projector shut down. The wall 16 also has local inputs and outputs for connection to external switches, PIR’s, relays and indicators. it also has two infrared output to control peripheral equipment.

Includes UK power supply, add ‘/EU’ to order code for European power supply.
