> >>>>Inter-M MX-1243 12CH Input 3 Band EQ 4 AUX Outputs Mixer PFL AFL Phantom Power

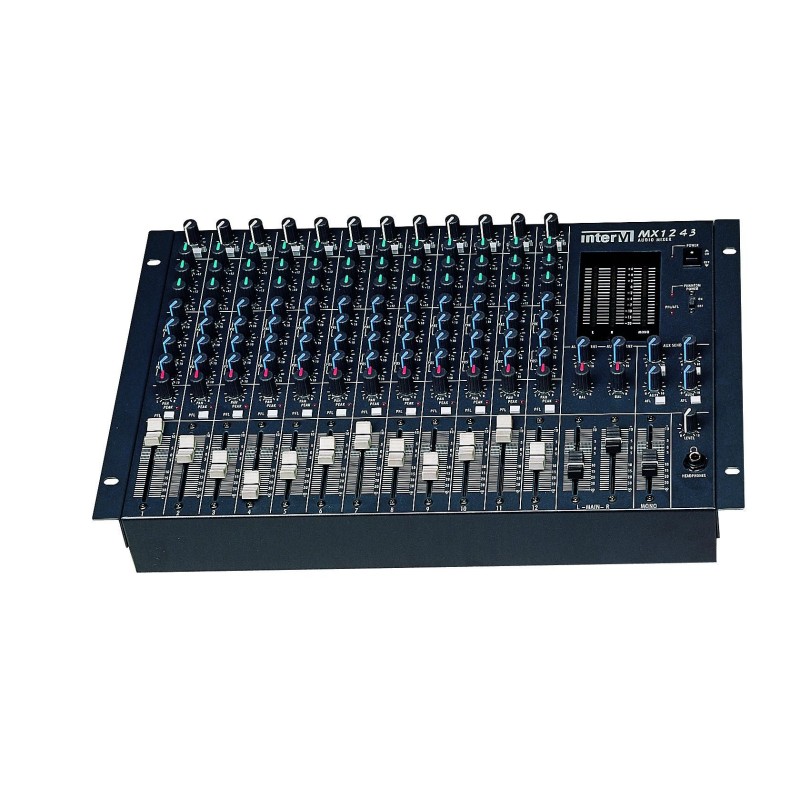

Inter-M MX-1243 12CH Input 3 Band EQ and 4 Output Mixer PFL AFL Phantom Power View larger

Inter-M MX-1243 12CH Input 3 Band EQ 4 AUX Outputs Mixer PFL AFL Phantom Power

MX-1243

New product

 - 12CH INPUT AND 4 OUTPUT
 - 3 BAND TONE CONTROLS
 - 4 AUX SEND AND AUX RETURN
 - OUTPUT MONITORING
 - PFL/AFL FUNCTION
 - PHANTOM POWER

More details

£ 890.00

£ 1,068.00 inc VAT

£ 1,068.00   tax incl.

Click to configure product options.

Add to wishlist

Product Category Feature Sound
Price Unit Each
Condition new
Availability in stock
Audio Product Type Mixers
Brand Inter-M
Manufacturer Inter-M
Number of Input Channels 12 Channel
Number of Output Channels 4 Channel

 - 12CH INPUT AND 4 OUTPUT

    Any sound source of microphones, cassette decks, electric guitars, organs can be applied to the 12 channel input,

    and 4 AUX SEND, MONO OUT and MAIN L, R OUT are provided for convenient use.

 - 3 BAND TONE CONTROLS

   3 band tone controls are provided to adjust the acoustic characteristics according to microphones, speakers and

   room structured.

 - AUX SEND AND AUX RETURN

   For the convenient use of effect equipment, reverb, delay or phasor AUX SEND and AUX RETURN function are provided.

 - OUTPUT MONITORING

   You can monitor by LED meter and headphone.

 - PFL/AFL FUNCTION

    The PFL/AFL function allows you to monitor through headphone any input channel before the channel fader and

    AUX output channel after the AUX SEND volume.

 - PHANTOM POWER

    Phantom power is provided for easy connection of condenser microphones requiring an external power supply.

Specification

MX-1243
Maximum Output Level +24dB @ 600Ω, 0.5% THD at 1kHz (BAL) Main Out L/R
+24dB @ 600Ω, 0.5% THD at 1kHz (BAL) Mono Out
+20dB @ 600Ω, 0.5% THD at 1kHz (UNBAL) AUX Send 1-4
100mW @ 40Ω, 0.5% THD at 1kHz Headphone
Input Sensitivity & Impedance -60dB @ 600Ω (BAL) Mic (CH1-CH12)
-20dB @ 10kΩ (BAL) Line (CH1-CH12)
+4dB @ 10kΩ (UNBAL) AUX Return
THD 0.1% @ +14dB, 20-20kHz
(MAIN OUT L/R @ 600Ω, MONO OUT @ 600Ω, AUX SEND @ 600Ω)
Frequency Response +1dB/-2dB, 20-20kHz @ +4dB
(MAIN OUT L/R @ 600Ω, MONO OUT @ 600Ω, AUX SEND @600Ω)
EQ Characteristics ±12dB 12kHz Shelving (Max ±15dB) High
±12dB 2.5kHz Peaking Mid
±12dB 80Hz Shelving (Max ±15dB) Low
Hum & Noise
(Average, Rs=150Ω)
(Measured with DIN Audio)		 -127dB Equivalent Input Noise
-95dB Residual Noise
(MAIN OUT L/R @ 600Ω, MONO OUT @ 600Ω, AUX SEND @ 600Ω)
-76dB Main Out L/R, Mono Out
(INPUT VR & FADER MIN/OUTPUT FADER MAX)
-68dB AUX Send 1-4 (INPUT VR & FADER MIN/OUTPUT VR & FADER MAX)
Crosstalk -70dB Adjacent Input Channels
-70dB Input to Output
Maximum Voltage Gain 84dB Mic to Main Out L/R, Mono Out
76dB Mic to AUX Send
44dB Line to Main Out L/R, Mono Out
36dB Line to AUX Send
20dB AUX Return to Main Out L/R, Mono Out
Gain Adjustment 44dB Mic In/Line In
LED Meter “0” +4dB Output Level
CH. Peak Indicators Red LED on each channel lights when pre-EQ or post-fader signal reaches 3dB below clip level.
Operating temperature -10˚C ~ +40˚C
Phantom voltage DC +48V
Power Source AC 100-120V or AC 220-240V, 50/60Hz
(Supplied AC mains transformer depends on country requirements)
Power Consumption 25W
Dimensions 7.5kg
Weight 482(W)×104(H)×310(D)mm
