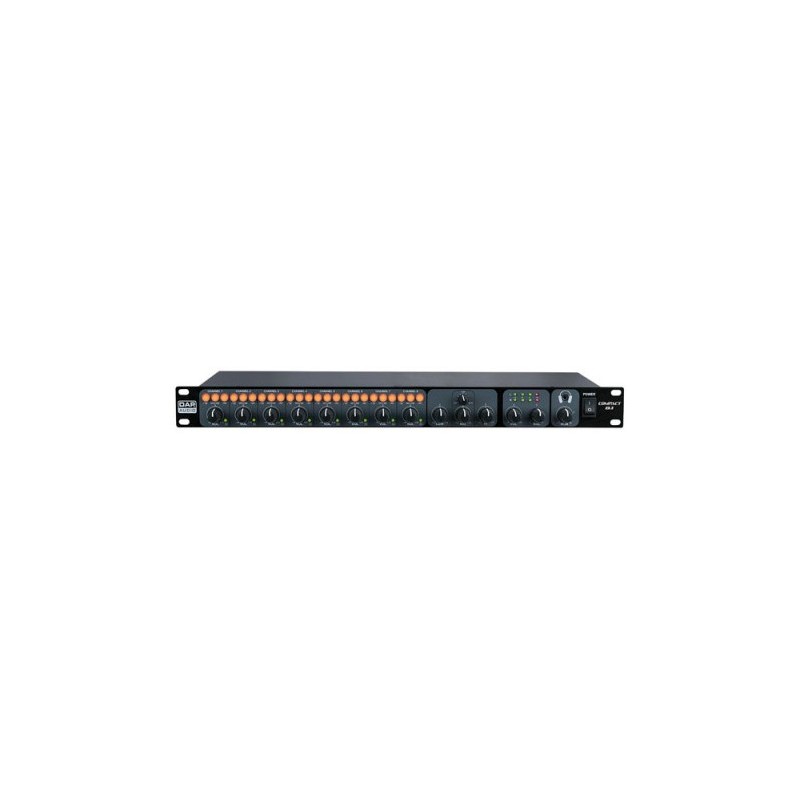

DAP Compact 8.1 8 Channel 1U install mixer, 1 output

Reference: D2321

Condition: New product

DAP Compact 8.1 8 Channel 1U install mixer, 1 output

Share on Facebook!
Send to a friend

Send to a friend

DAP Compact 8.1 8 Channel 1U install mixer, 1 output

DAP Compact 8.1 8 Channel 1U install mixer, 1 output

The Compact 8.1 is a high quality 19" 1U microphone line mixer. With some smart features it distinguishes itself from other compact mixers. All inputs can be used for microphone or line level inputs and have high pass filters and phantom power selections for each input separately.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Price Unit	Each
Condition	new
Availability	preorder
Brand	DAP Audio
Manufacturer	DAP Audio

DAP Compact 8.1 8 Channel 1U install mixer, 1 output

The Compact 8.1 is a high quality 19" 1U microphone line mixer. With some smart features it distinguishes itself from other compact mixers. All inputs can be used for microphone or line level inputs and have high pass filters and phantom power selections for each input separately. It has a balanced master output, a record output and a monitor output. The headphones level also influences the monitor output which makes this an independent extra output for a second area or zone. The main EQ has a mid-frequency sweep which helps you to eliminate the feedback frequency of your system if you use the Compact 8.1 as a microphone mixer. All channels have signal / Clip indicators which gives you a direct overview of your input signals even from a long distance. The Compact 8.1 combines a clear user interface with maximum inputs and smart functionalities on a 1U mixer.

Specifications

Input channels: 8 x Microphone, XLR
8 x Line, RCA
Output channels: 1 x Master Balanced, XLR
1 x Headphones, 6,3mm TRS Jack
Master EQ: 80Hz, 330-8200Hz, 12KHz, -12dB / +12dB
Frequency response: 20Hz - 20Khz
T.H.D.: <0.01%
Dimensions: 481 x 44 x 175 mm (LxHxD)
Powersupply: 2x15V AC, 50Hz (Adapter included)
Powerconsumption: 8Watt
Weight: 2,2 Kg

Features

• 8 Combined Mic Line inputs
• EQ with mid sweep
• Phantom power
• Selectable Hi-pass filter
