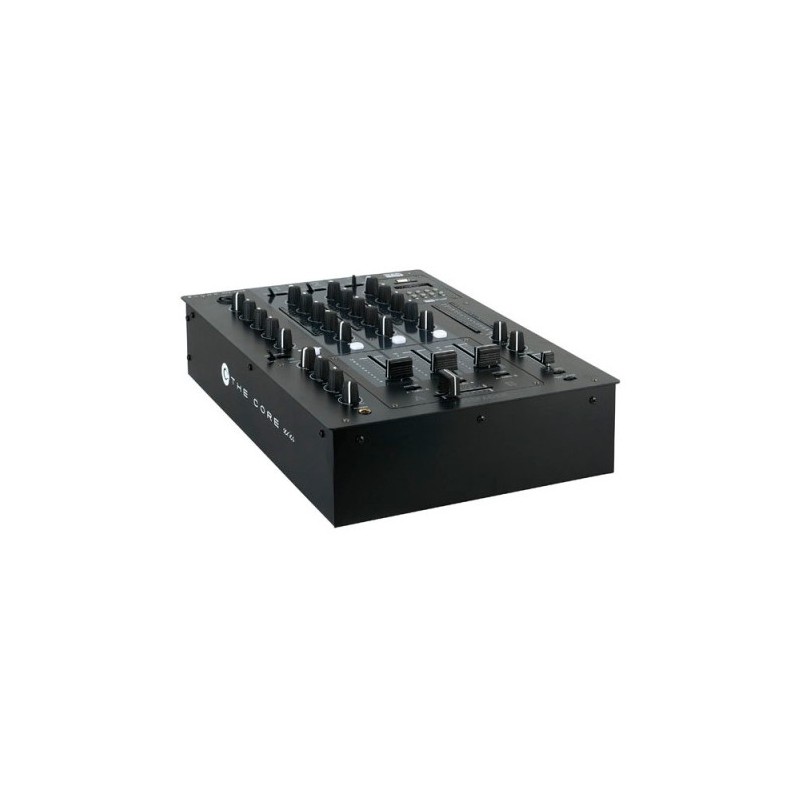

DAP CORE MIX-3 USB 3 Channel DJ mixer with USB interface

Reference: D2303

Condition: New product

DAP CORE MIX-3 USB 3 Channel DJ mixer with USB interface

Share on Facebook!
Send to a friend

Send to a friend

DAP CORE MIX-3 USB 3 Channel DJ mixer with USB interface

DAP CORE MIX-3 USB 3 Channel DJ mixer with USB interface

The CORE MIX-3USB is a DJ mixer with 8 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-3 USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Price Unit	Each
Condition	new
Availability	preorder
Brand	DAP Audio
Manufacturer	DAP Audio

DAP CORE MIX-3 USB 3 Channel DJ mixer with USB interface

The CORE MIX-3USB is a DJ mixer with 8 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-3 USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a 45mm fader. The microphone channel has a 3 band EQ, talk-over function and an on/off switch to make MC-ing save and easy for party jocks & MC's. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot meters are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and has a MP3 module which can record and playback your life performance directly on an USB or SD device.

Specifications

Inputs channels: 1 x Microphone, combo XLR/Jack
6 x Line, RCA
1 x Phono, RCA
2 x USB, Type B
1 x Return, RCA

Output channels: 1 x Record, RCA
1 x Booth, RCA
1 x Master unbalanced, RCA
1 x Master balanced, XLR
1 x Headphones, 6.3mm Jack
2 x USB, Type B
1 x Send, RCA

USB Port: Audio in- & output interface for PC & Mac, 48 KHz, 16 bit
Channel EQ range: -26dB / +12dB
Microphone EQ range: -12dB / +12dB
Frequency response: 20Hz -20Khz
T.H.D: <0.1%
MP3 Module: 128Kbit 44.1 Khz, Max 16GB
Dimensions: 268 x 380 x 88 (WxDxH)
Power supply: 100-240V AC, 50/60Hz
Power consumption: 10 Watt
Weight: 4.6 Kg

Features

• 2 Build-in USB PC/MAC audio interfaces
• 60mm VCA faders
• MP3 USB SD recorder
• Variable FX send / Return each channel
• LED VU meter each channel
