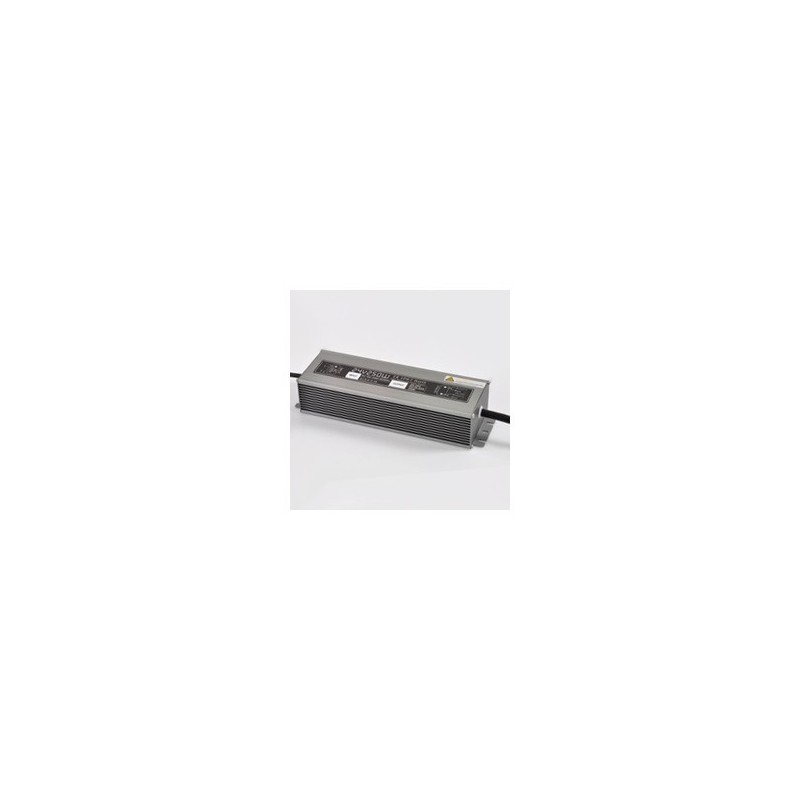

250W 24V Constant Voltage Power Supply for feeding LED Strips or LED Panels

Rated for UK use 240V AC (90-265V AC)

Protections: Short circuit/Overload/Over Temperature

IP65 design for indoor or outdoor installations

100% full load burn-in test

RoHS, CE Certified, ECA Compliant

Suitable for LEDs

Features

Protections: Short circuit/Overload/Over Temperature
IP65 design for indoor or outdoor installations
100% full load burn-in test
Suitable for LED lighting and sign applications
18 Months warranty
CE / EMC / ROHS
Environmental：
Operating temperature: -20 to +45 º C
Storage temperature: -40 to +85 º C
Humidity (Non-Condensing): 5% to 95%
Cooling: Convection
Vibration Frequency: 50 to 60 Hz
MTBF: >1,8 00,000 Hours at full load and 25ºC
ambient conditions (MIL-HDBK-217F)
Input Voltage (VAC) 170-260V 170-260V
Input Frequency (Hz) 50/60 Hz 50/60 Hz
Output Voltage (VDC) 24VDC ± 0.5V
Output Power (W) 250W Max. 250W Max
work Efficiency 220V
short circuit Protection Yes
Thermal Protection Yes 90
CE Safety Standard LVD Compliance to EN EN61347-1:2001 / EN61347-2-13.2001
EMI conduction & radiation
Compliance to EN55015,EN61547
EMS Harmonic Current Compliance to EN61000-3-2,-3
Safety& EMC
Classification of installation and use: Class 1
N.W(g) 2900g/pcs

Dimentions of Unit: 255*120*62mm
Packing PCS Standard Packing
Cable
Housing Material Aluminium
