Akwil 1000W LED Stadium Spot Light AK-SP06-1000W Dali or DMX Dimmable with Meanwell Drivers for high end sports spot lighting

AK-SP06-1000W

New product

Akwil AK-SP06-1000W Spotlight

- Dimmable DMX, DALI or 0-10V LED Driver Options

- Lens Options are available for 15° / 20° / 25° / 40° / 60° / 80° beam angles.

- Unit is suitable for Stadiums, Docks, Large Buildings and Landscapes etc.

- Utilises a Highly Transparent PC Lens

- Soft and well distributed light output.

- IP66 Weatherpoof

- Practical for easy installation and maintenance.

More details

£ 1,495.00

£ 1,794.00 inc VAT

£ 1,794.00   tax incl.

Click to configure product options.

Add to wishlist

This product is no longer in stock with the selected values, please select smaller values.
Product Category Feature LED Lighting
Price Unit Each
Condition new
Availability available for order
Brand Akwil
Manufacturer Akwil
Wattage (W) 1000
Lumens 130000 Lumens
Colour Render Index (CRI) 90
Total Power Wattage (W) 1000
Power Factor Correction PFC 0.95

Akwil AK-SP06-1000W Spotlight

Dimmable 1000W LED Stadium Spot Light for high end sports Spot lighting

Akwil AK-SP06-1000W Dimmable LED Spot Light
- Dimmable DMX, DALI or 0-10V LED Driver Options

- Lens Options are available for 15° / 20° / 25° / 40° / 60° / 80° beam angles.

- Unit is suitable for Stadiums, Docks, Large Buildings and Landscapes etc.

- Utilises a Highly Transparent PC Lens

- Soft and well distributed light output.

- IP66 Weatherpoof

- Practical Design ensures quick and easy installation and maintenance.









Specifications


Optical DataAkwil AK-SP06-1000W flood light dimension specifications

Wattage LED  :   1000W OSRAM / LUMILEDS
Type Efficiency  : 130LM/W
Luminous Flux  : 130,000LM
CCT Options : 3000K/4000K/5000K (Standard) /5700K/6500K
Beam Angle Options:         15°/ 20°/ 25°/ 40°/ 60°/ 80°
CRI  : >70Ra
System Efficiency  : >90%





Electrical Data

Power Supply : Meanwell driver
Input Voltage : AC100-277V/AC240-480V
Power Frequency : 50/60Hz
Output Voltage : DC24-48V
Power Efficiency : 93%
Power Factor Correction  : 0.95

Total Harmonic Distortion  :

<15%

Additional Data

IP Rating  : IP66
Lifetime(L70 Standard)  : 50,000 hours
Heat Radiator  : Die-cast aluminum
Lens Material  : PC
Carton Dimensions  : 635 x 570 x 415mm
Gross Weight  : 27.5kg

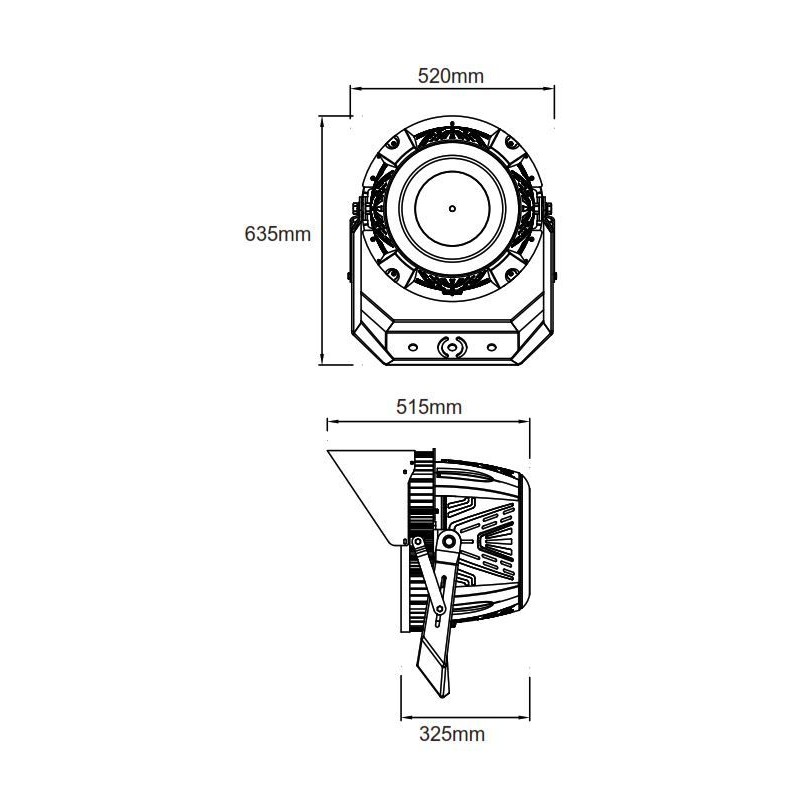

Fixture Dimension  :

635 x 520 x 515mm

RoHs CE Certified Lighting

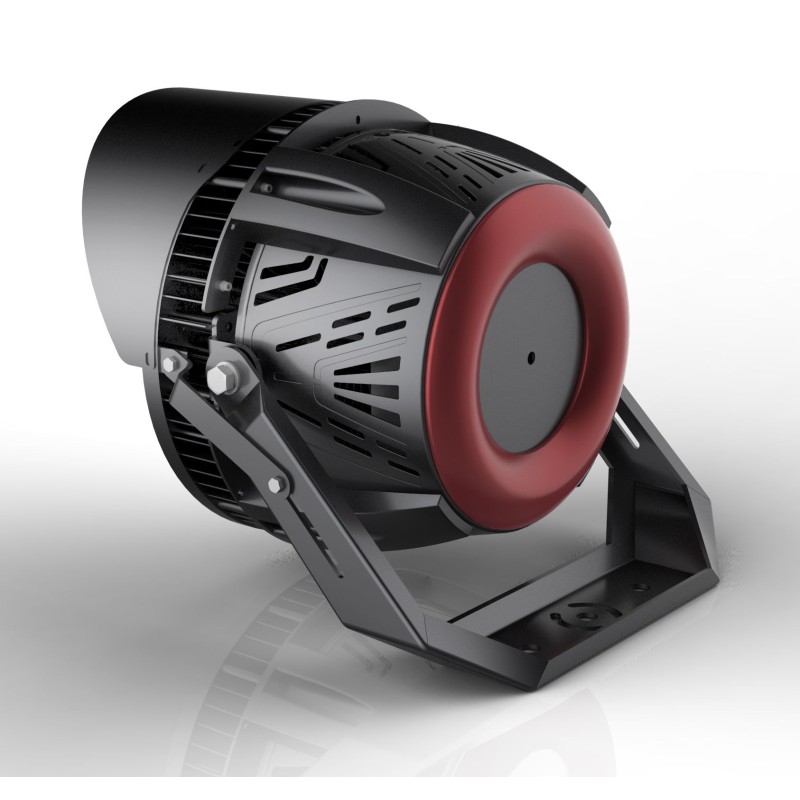

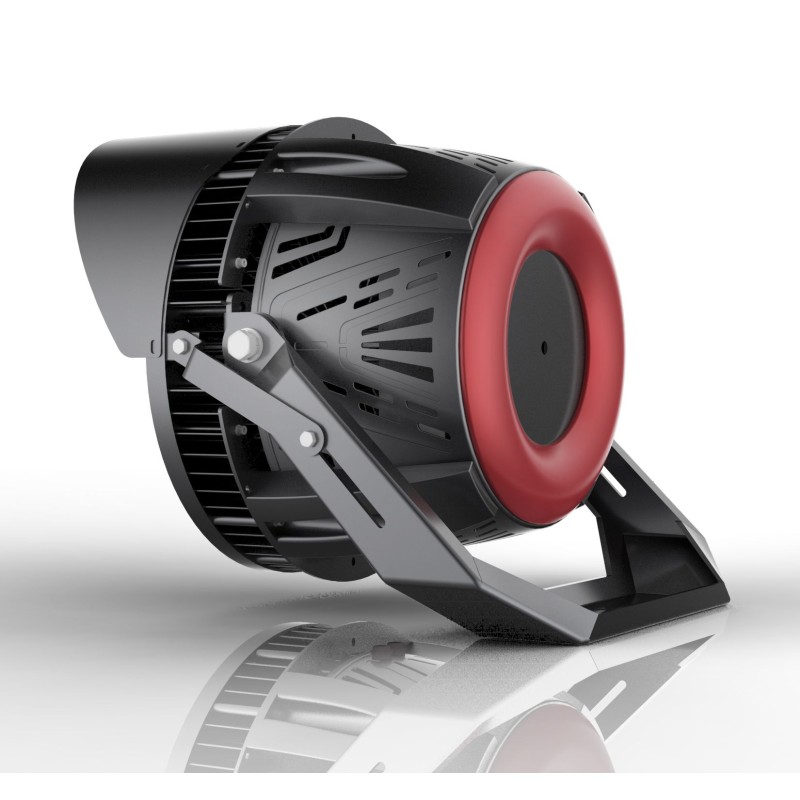

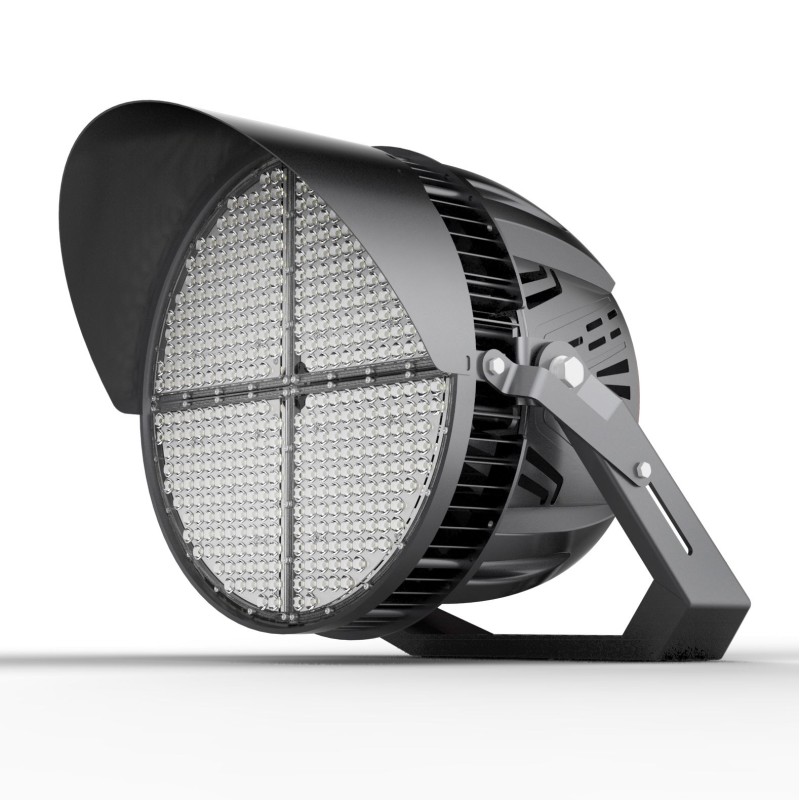

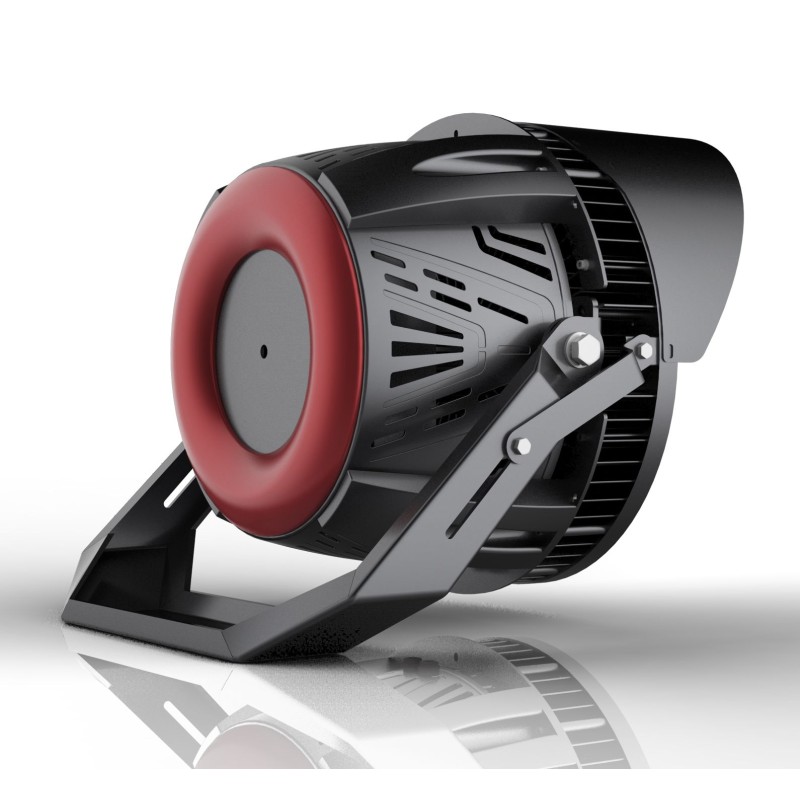

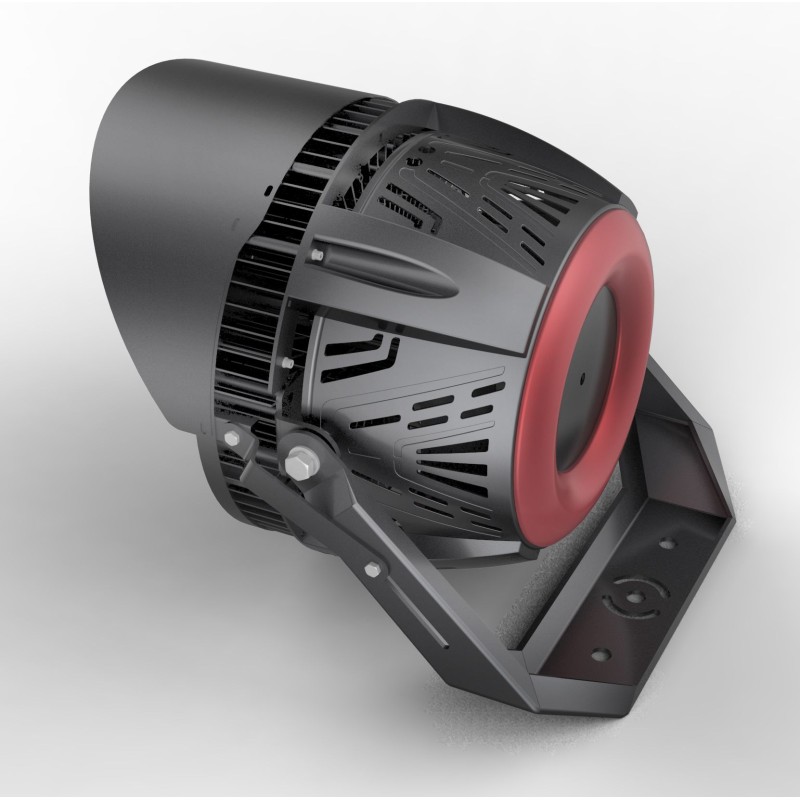

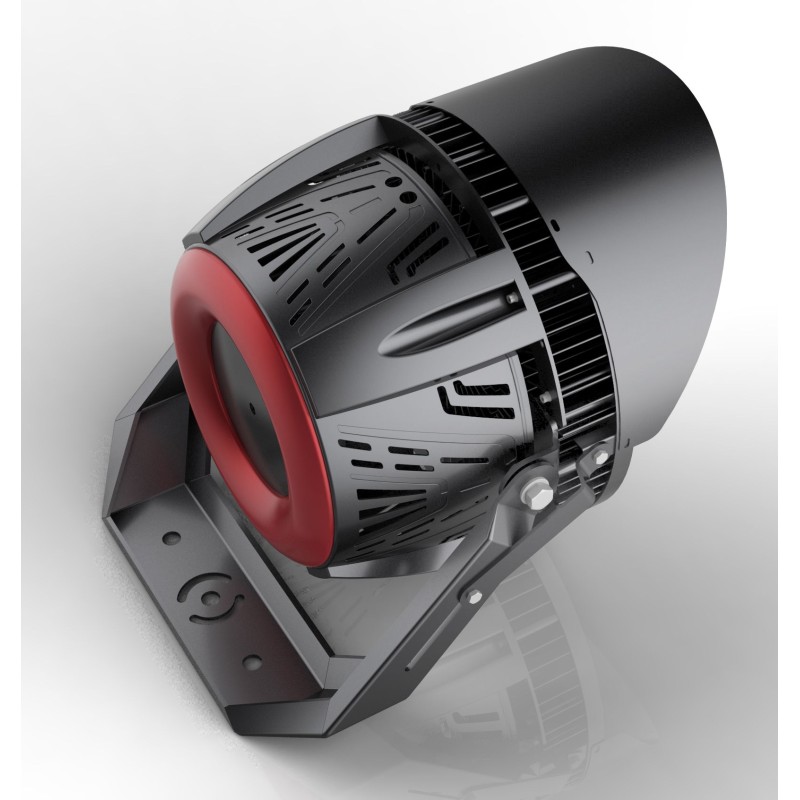

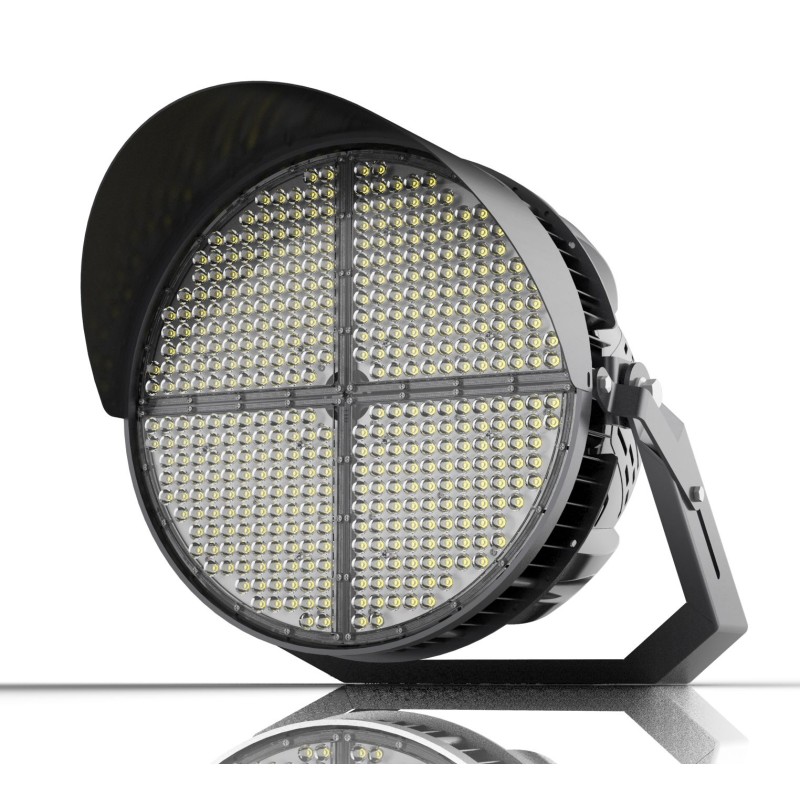

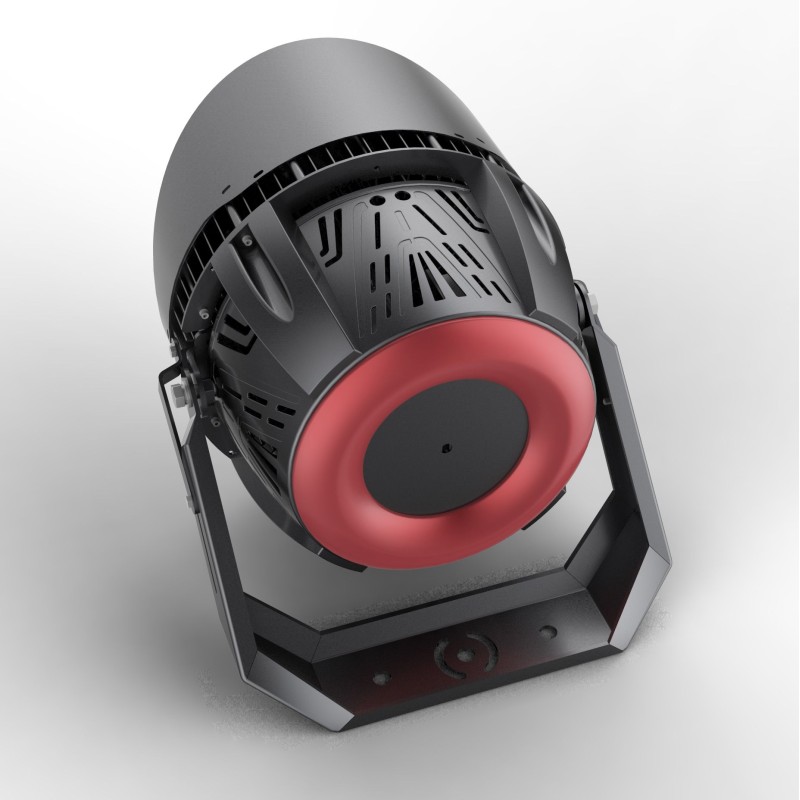

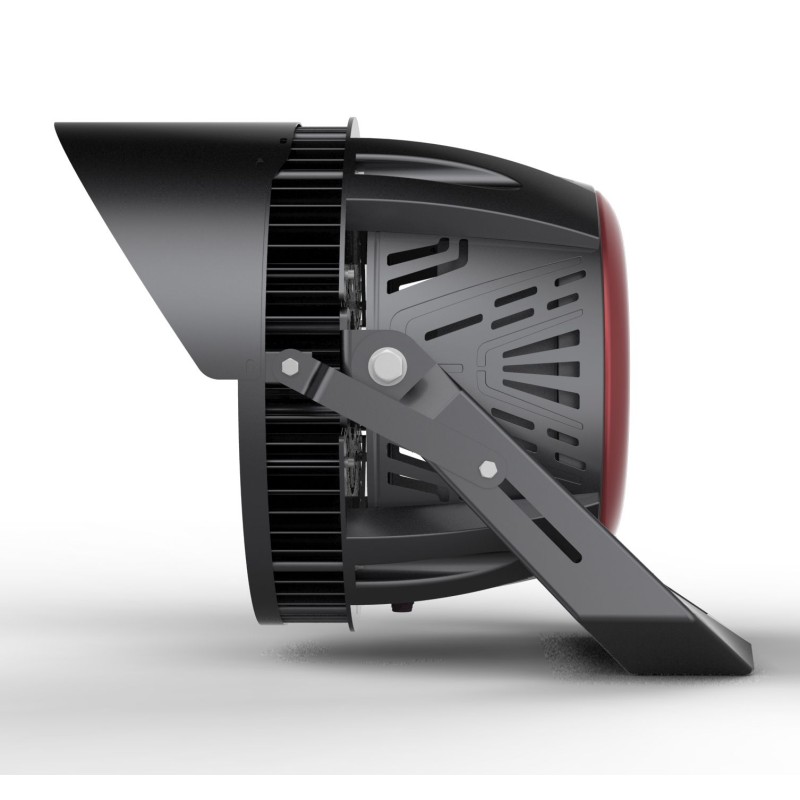

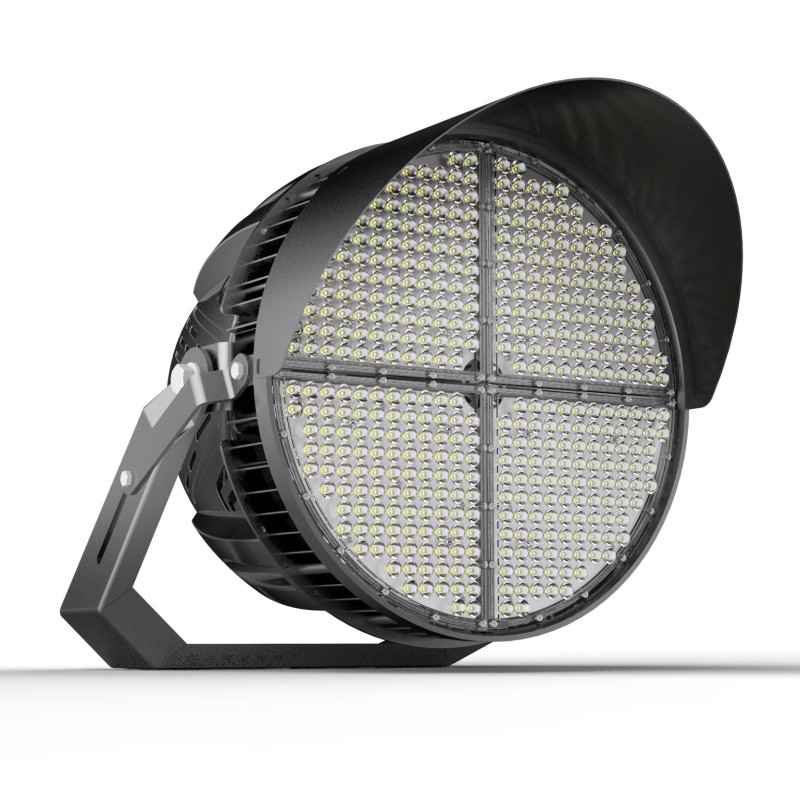

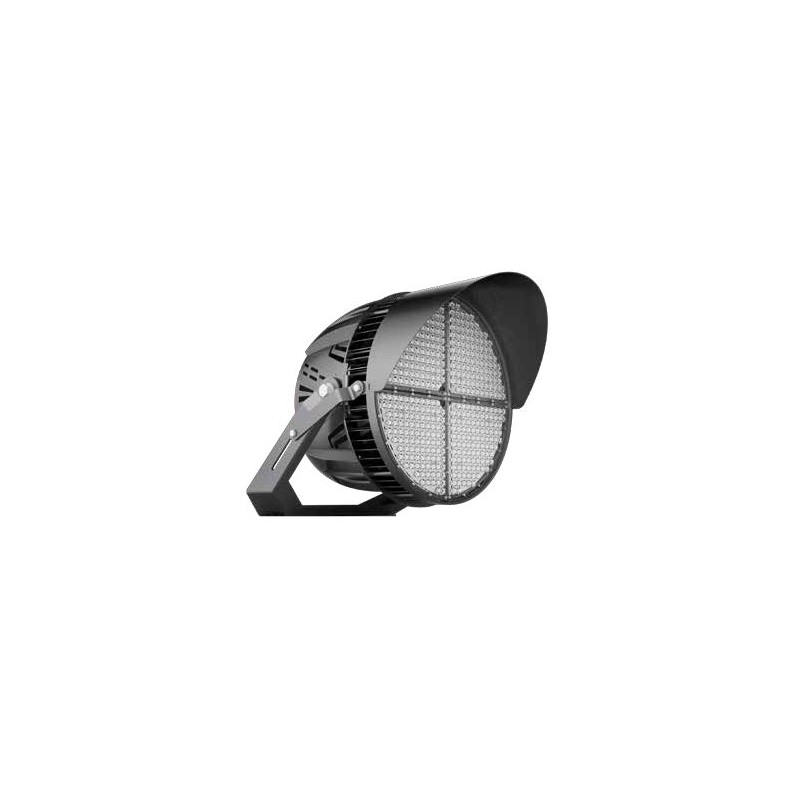

Akwil AK-SP06 LED Stadium Spotlight
