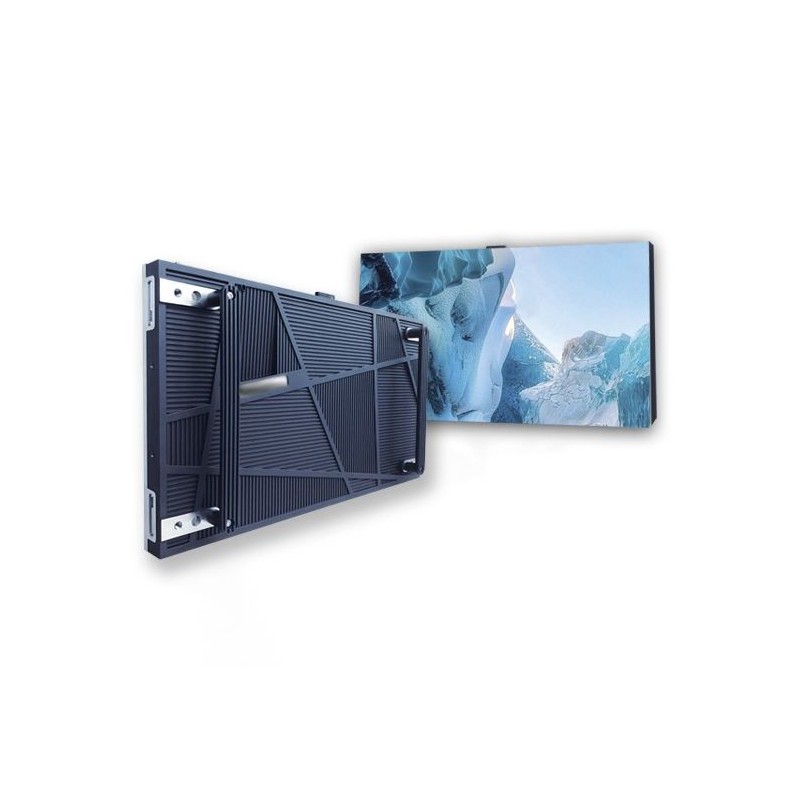

UHD 1.25mm Pitch Indoor LED Display Front Loading Panel System 600mm x 337.5mm Cabinets

View larger

UHD 1.25mm Pitch Indoor 4k or 8k LED Display Screen Front Loading Panel System 600mm x 337.5mm Cabinets

Reference: AK-P125-UHD-R

Condition: New product

UHD 1.25mm Pitch Indoor LED Display Front Loading Panel System 600mm x 337.5mm

Comes complete with Power Supplies and Display Receiver Cards internally fitted

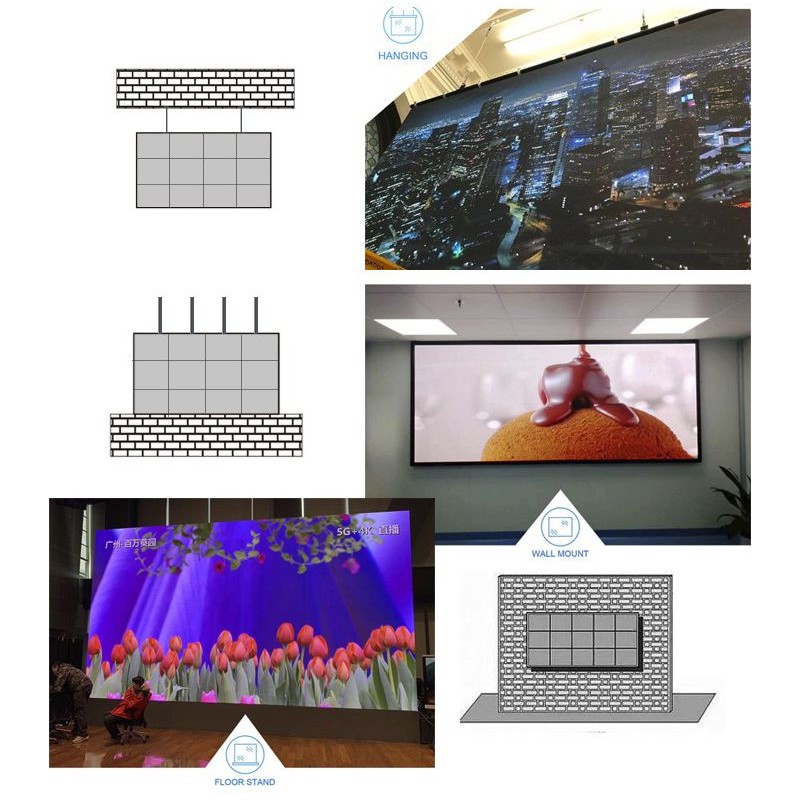

AK-P125-UHD-R LED Mobile or Fixed installation LED Display Panel Solution

Akwil UHD Modular LED Cabinet Displays are high definition displays, rigid & cost effective for mobile modular indoor display applications

More details

Share on Facebook!
Send to a friend

Send to a friend

UHD 1.25mm Pitch Indoor 4k or 8k LED Display Screen Front Loading Panel System 600mm x 337.5mm Cabinets

UHD 1.25mm Pitch Indoor LED Display Front Loading Panel System 600mm x 337.5mm

Comes complete with Power Supplies and Display Receiver Cards internally fitted

AK-P125-UHD-R LED Mobile or Fixed installation LED Display Panel Solution

Akwil UHD Modular LED Cabinet Displays are high definition displays, rigid & cost effective for mobile modular indoor display applications

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

£ 3,615.00

£ 4,338.00 inc VAT

£ 4,338.00 tax incl.

-25%

£ 4,820.00

Quantity

Click to configure product options.

Add to wishlist

This product is no longer in stock with the selected values, please select smaller values.

LED Display Width cm

LED Display Width cm
Minimum: 60
Maximum: 960
Please select the width of the LED Display

LED Display Height cm

LED Display Height cm
Minimum: 37.75
Maximum: 604
Please select the height of the LED Display

Cabinets Wide

Cabinets High

Number of Cabinets

RRP Cabinet Price £ Excl. VAT

£ 4,225.00

Physical Pixel Pitch mm

1.25

Pixel Width px

480

Pixel Height px

270

Cabinet Width mm

600

Cabinet Height mm

377.5

Module Width mm

200

Module Height mm

168.75

Cabinet Pixel Width

480

Cabinet Pixel Height

270

Controller Cost Each £

£ 595.00

Number of DVI - LinSN Controllers Required

Total Cost of Controllers £

595

Flight Cases for Mobile Rental Storage

Flight Cases for Mobile Rental Storage
Please select if you would like Flight Cases for Mobile Storage of your LED Display Panels

Flight Case Quantity

Flight Case Price Each £

£ 295.00

Total Flight Case Cost £

Save

Get Quote

Full Description
Product Specification

Screen Size	Custom Size
Resolution	UHD 8k
Video Wall	Yes
Product Category Feature	LED Displays
Price Unit	Each
Condition	new
Availability	available for order
Brand	Akwil
Manufacturer	Akwil
LED Display Type	Mobile Rental Cabinet LED Display
LED Display Use	Indoor
LED Pitch Size mm	1.25mm
Minimum Recommended Viewing Distance m	1m

UHD 1.25mm Pitch Indoor 4k or 8k LED Display Screen Front Loading Panel System 600mm x 337.5mm Cabinets

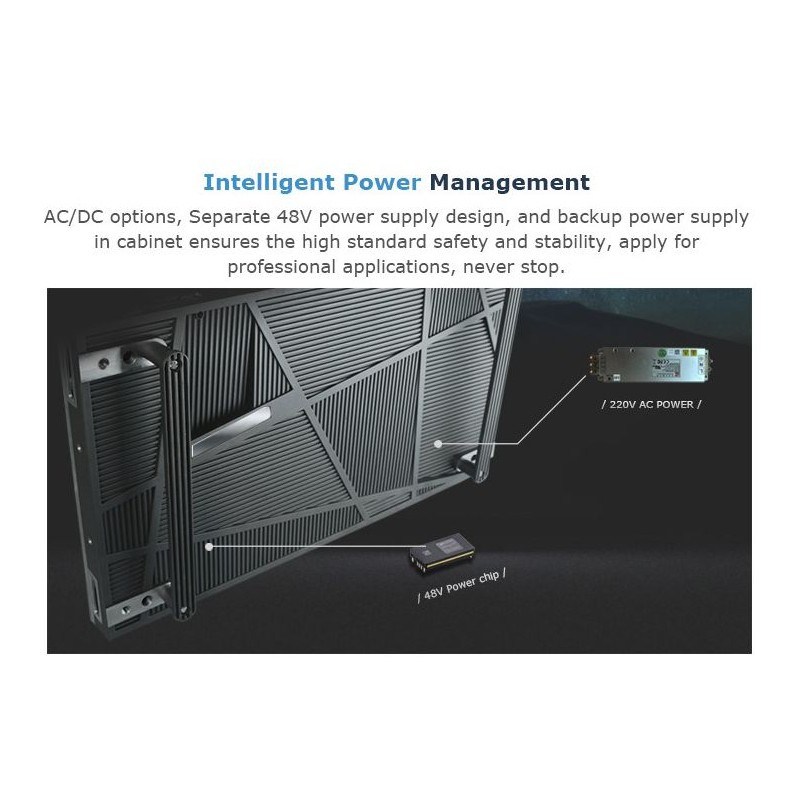

Comes complete with Power Supplies and Display Receiver Cards internally fitted.

Mobile or Fixed installation LED Display Panel Solution

AK-P125-UHD-R Akwil LED Mobile LED Display Panel Solution is 600mm x 337.5mm x 42mm

Akwil UHD Modular LED Cabinet Displays are high definition displays, rigid and cost effective for mobile modular indoor display applications.

UHD LED Display Cabinet Specifications

Pixel Pitch	0.93mm (H*V)	1.25mm (H*V)	1.5mm (H*V)	1.8mm (H*V)
Pixel Density	1137777 dots/m²	640000 dots/m²	409600 dots/m²	284444 dots/m²
LED Configuration	SMD4in1	SMD0606	SMD1010	SMD1515
Module Size	200(W) x 168.75(H)	200(W) x 168.75(H)	200(W) x 168.75(H)	200(W) x 168.75(H)
Module Resolution	214 x 180	160 x 135	128 x108	108 x 90
Cabinet Size	600(W) x 337.5(H)	600(W) x 337.5(H)	600(W) x 337.S(H)	600(W) x 337.5(H)
Cabinet Thcikness	42mm	42mm	42mm	42mm
Cabinet Pixel Resolution	642 x 360	480 x 270	384 x 216	324 x 180
Cabinet Weight	121b/5.4kg Panel	121b/5.4kg Panel	121b/5.4kg Panel	121b/5.4kg Panel
Brightness	≥800cd/m²	≥800cd/m²	≥800cd/m²	≥1000cd/m²

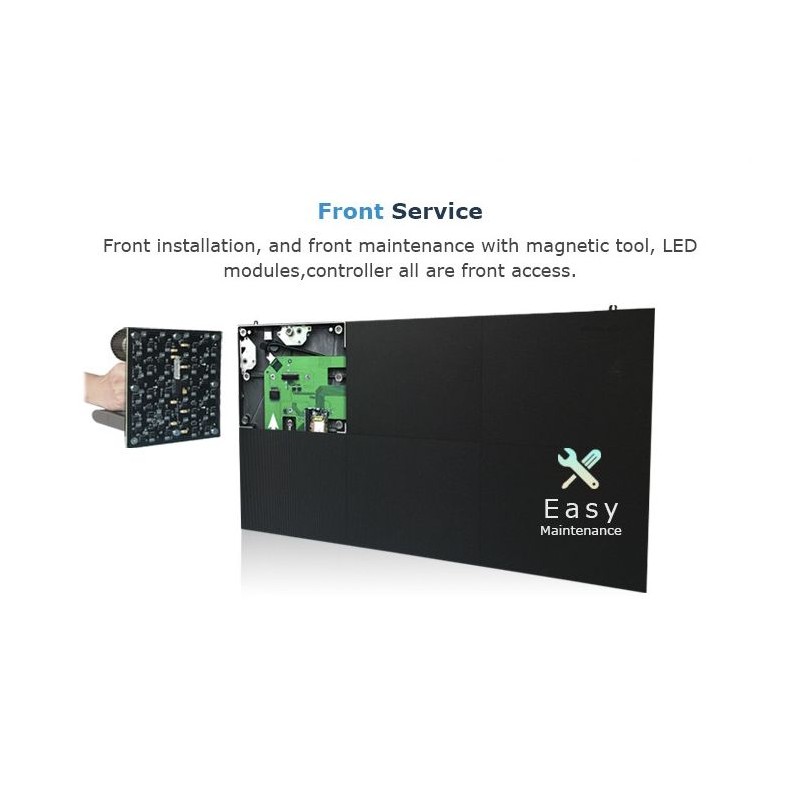

Maintenance	Front	Front	Front	Front

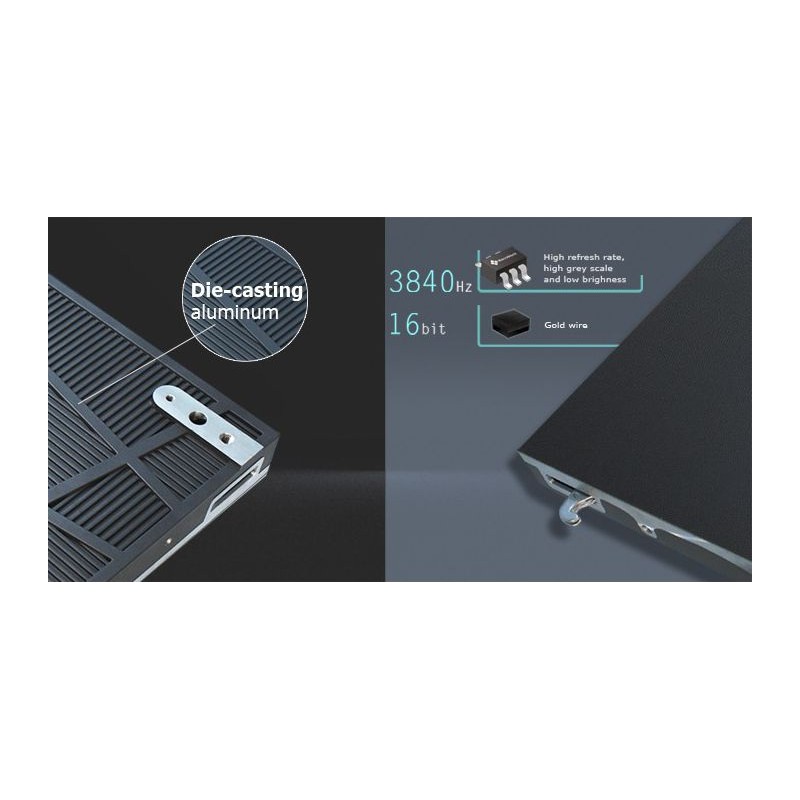

Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Flatness of the screen	≤0.1mm	≤0.1mm	≤0.1mm	≤0.1mm
Contrast	5000:1	5000:1	5000:1	5000:1
Refresh rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Viewing Angle	160°(horz.),140°(vert.)	160°(horz.),140°(vert.)	160°(horz.),140°(vert.)	160°(horz.),140°(vert.)
Optimal View Distance	5.4ft/1.8m	6.5ft/2m	9ft/3m	llft/3.6m
Gray scale	16 (bit)	14 (bit)	14 (bit)	14 (bit)
Max Power Consumption	450W/Sq.m	450W/Sq.m	450W/Sq.m	600W/Sq.m
Avg Power Consumption	150W/Sq.m	150W/Sq.m	150W/Sq.m	180W/Sq.m
Work Voltage	AC100-240V	AC100-240V	AC100-240V	ACl00-240 V
Frame Frequency	50Hz-60Hz	50Hz-60Hz	50Hz-60Hz	50Hz-60Hz
IP Rating(FronVRear)	IP43	IP43	IP43	IP43
MTBF	>8oooHr	>8oooHr	>8oooHr	>8oooHr
Life Span	100,000Hours	100,000Hours	100,000Hours	100,000Hours
Control Mode	Synchronization with PC	Synchronization with PC	Synchronization with PC	Synchronization with PC
Operating Temperature	( -10°C - +40°C)	( -10°C - +40°C)	( -10°C - +40°C)	( -10°C - +40°C)
Storage Temperature	( -20°C - +50°C)	( -20°C - +50°C)	( -20°C - +50°C)	( -20°C - +50°C)
Working humidity	10%-90%	10%-90%	10%-90%	10%-90%
