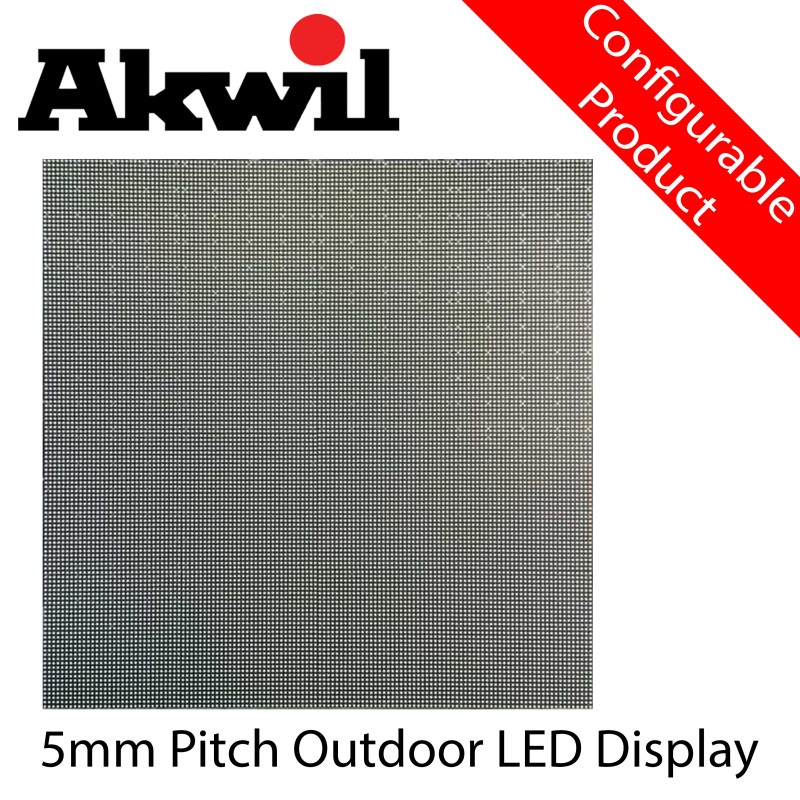

AK-P5R 5mm Pitch Outdoor LED Display Panel Akwil Rental Cabinet Modular Panel Solution 640mm x 640mm

Reference:

Condition: New product

5mm Pitch Outdoor LED Display AK-P5R Akwil Rental Cabinet Panel Solution 640mm x 640mm

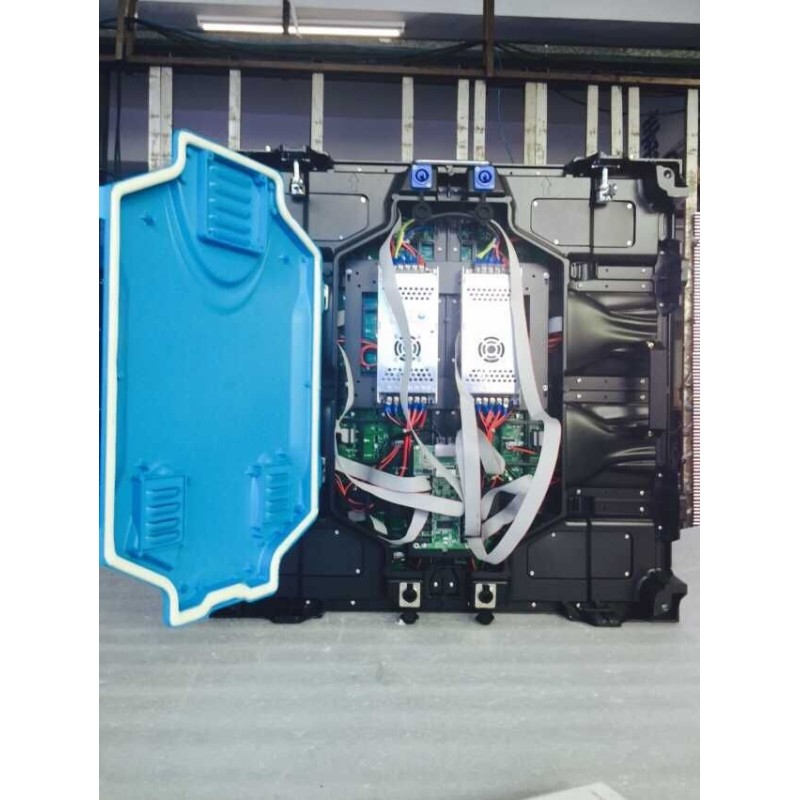

Comes complete with Power Supplies and Display Receiver Cards internally fitted.

Mobile Modular Outdoor installation LED Display Panel Solution

AK-P5R Akwil LED Mobile LED Display Panel Solution is 640mm x 640mm x 90mm

£ 1,132.50

£ 1,359.00 inc VAT

£ 1,359.00 tax incl.

Quantity

Click to configure product options.

LED Display Type

LED Display Use

Display Pitch Size mm

Minimum Display Viewing Distance m

Video Wall	Yes
Product Category Feature	LED Displays
Price Unit	Each
Condition	new
Availability	available for order
Brand	Akwil
Manufacturer	Akwil
LED Display Type	Mobile Rental Cabinet LED Display
LED Display Use	Outdoor
LED Pitch Size mm	5mm
Minimum Recommended Viewing Distance m	5m
LED Type	RGB 3in1 SMD 2623
LED Module Height m	0.16
LED Module Width m	0.16
LED Module Height Number of Pixels px	32
LED Module Width Number of Pixels px	32
LED Cabinet Height m	0.64
LED Cabinet Width m	0.64
LED Display Brightness cd/m sq	2500cd
Wattage (W)	1200W

5mm Pitch Outdoor LED Display AK-P5R Akwil Rental Cabinet Panel Solution 640mm x 640mm

Comes complete with Power Supplies and Display Receiver Cards internally fitted.

Mobile or Fixed installation LED Display Panel Solution

AK-P391R Akwil LED Mobile LED Display Panel Solution is 500mm x 500mm x 75mm

Akwil Fixed LED Displays	AK-P391R 3.91mm Pitch
Pixel Pitch	5mm
Pixel Configuration	3in1 SMD 2623
Module Resolution	64px x 64px
Cabinet Resolution	128px x 128px
Module Size	250mm x 250mm
Cabinet Size	500m x 500m x 75mm
Pixel Density	65536 pixels/m sq
Recomended Minimum Viewing Distance	3.9m
Brightness	>2500cd/m sq
Colour Temperature	8000k-10000k
Contrast Ratio	5000:1
Viewing Angle	H:120º / V:120º
Housing Material	Aluminium
Cabinet Weight	7kg
Colour	14bits x RGB
Greyscale (Linear)	12 bits
Brightness Control	100 Levels
Video Frame Rate	60Hz
Display Refresh Rate	>1200-2400Hz
Driving Method	1/8
Input Voltage (Nominal)	AC 90V-265V
Input Power Frequency	50-60 Hz
Input Power Maximum	1200W/m sq
Input Power Average	600W/m sq
Working Temperature	-20ºC- 40ºC
Storage Temperature	-35ºC- 85ºC
Working Humidity	10% - 95%
Lifespan (50% Brightness)	>70,000 hrs
Application	Indoor
Maintenance Method	Rear
Price Per LED Cabinet Complete Excluding VAT £	£550 / Panel
