5pcs of 40W CCT LED Panels LED Colour Temperature and Brightness Dimmable 595mm x595mm

AK-PA6060-40W

New product

PACK of 5pcs of 40W CCT LED Panels LED Colour Temperature & Brightness Dimmable

Model

Size

Input

Watt

PF

CCT

CRI

Lm/w

AK-PA6060-40W

595x595*9mm

Flicker-free driver

5years warranty

100-240V

50/60Hz

40W

0.9

3000K 4000K

5000k

6000K

80

120

More details

£ 540.00

£ 648.00 inc VAT

£ 648.00   tax incl.

-10%

£ 600.00

Click to configure product options.

Add to wishlist

Product Category Feature LED Lighting
Price Unit Each
Condition new
Availability preorder
Manufacturer Akwil
Wattage (W) 58
Colour Render Index (CRI) 80

PACK of 5pcs of 40W CCT LED Panels LED Colour Temperature and Brightness Dimmable

**£108 Ex VAT each **


Product Feature for Panel:

  1.     White frame without gap between the four corners.
  2.     High lumen efficiency up to 120lm/w, high CRI up to 80.
  3.     High power factor up to 0.9; Low THD which is below 15%.
  4.     5 years warranty.
  5.     This panel can be adjustable color from 3000k to 6000k. and can be dimmable.
  6.     Use remote control to adjust the color and dimmable.
  7.     One remote control can control one or more panels.

   cct colour temperature controlled led lighting panel 40W wireless control remote and panel

Parameter for Panel:



Model

Size

Input

Watt

PF

CCT

CRI

Lm/w

AK-PA6060-40W

595x595*9mm

Flicker-free driver

5years warranty

100-240V

50/60Hz

40W

0.9

3000K 4000K

5000k

6000K

80

120

Luminous intensity distribution: 120¡Ã£


Spectral distribution graph: 6000K

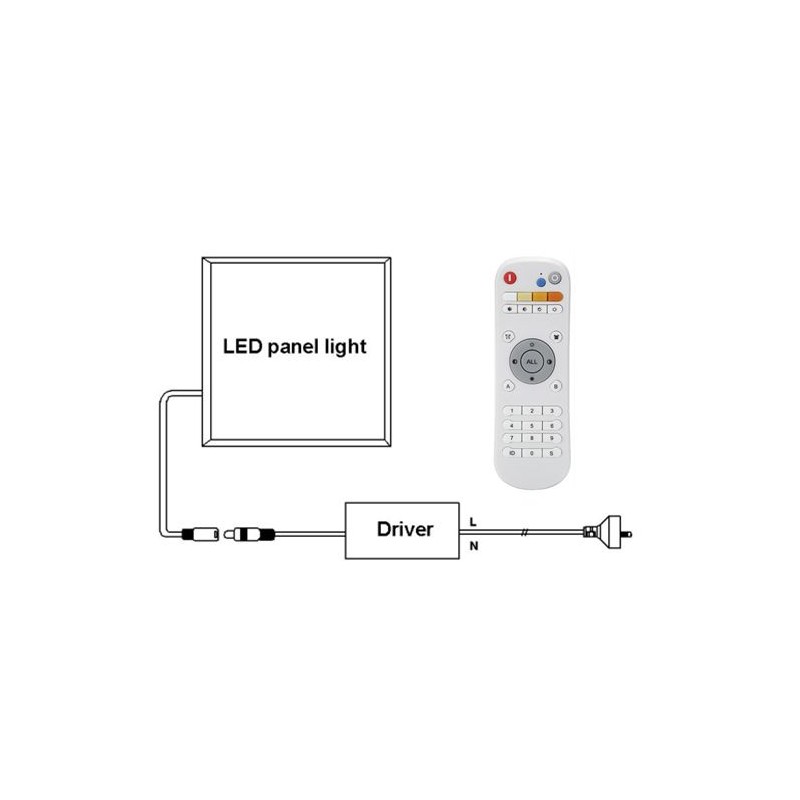

Connection schematic diagram:

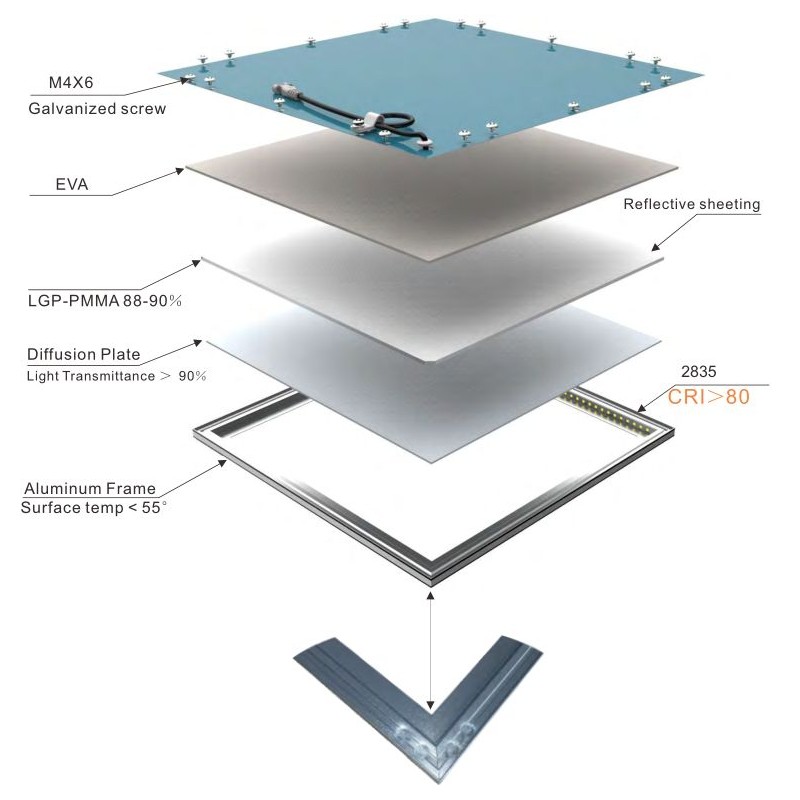

How It's Made:



The frame adopts pneumatic splicing for a more robust and reliable than the screw joint structure

 Installation Instruction:

Built-in:

    cct-led-panel-rf-led-installation-diagracct-led-panel-rf-led-installation-diagracct-led-panel-rf-led-installation-diagra

  1.     Take off the ceiling.
  2.     Connect to the wire.
  3.      Place the panel lights steadily, the installation is complete.



Surface mounted:

  1.     To make the screws onto the ceiling.
  2.     To put the panel into the frame by the arrow direction.
  3.      Then screw the fourth part frame.
  4.     Installation completed.

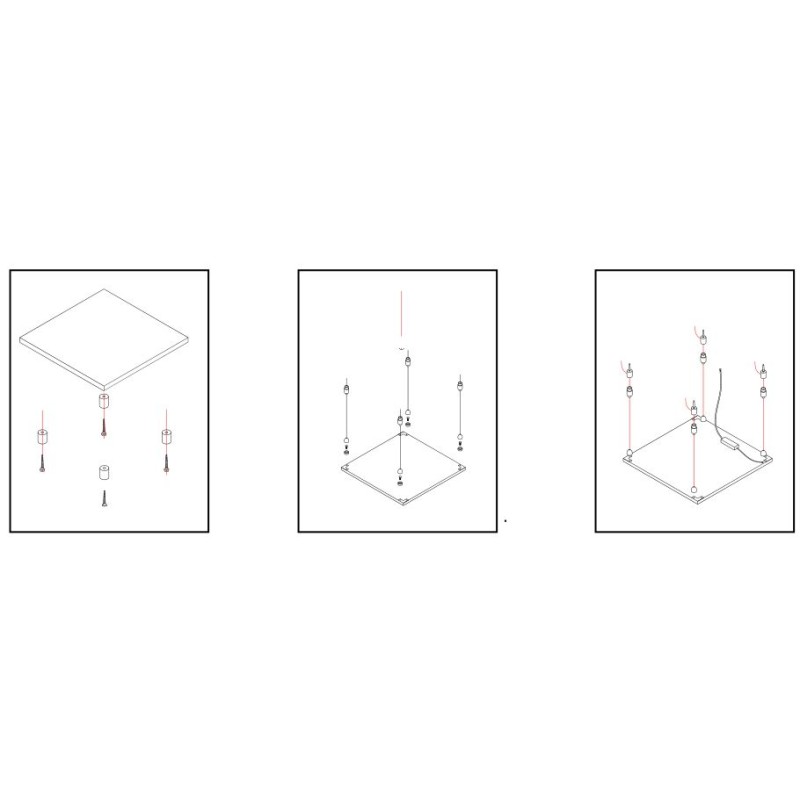

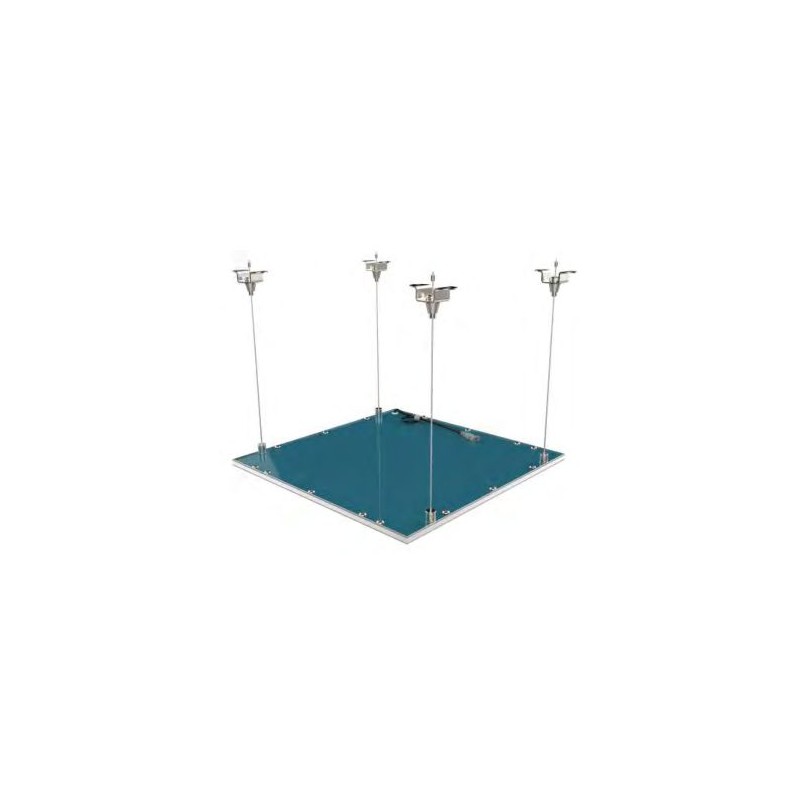

Hanging:

a: Take off the cassette, put steel wire rope into cassette.

b: Fixed cassette on the ceiling.

c: Lock the line devices into the panel.

d: Adjust the length of wire cable, and connect power supply, and then switch on.

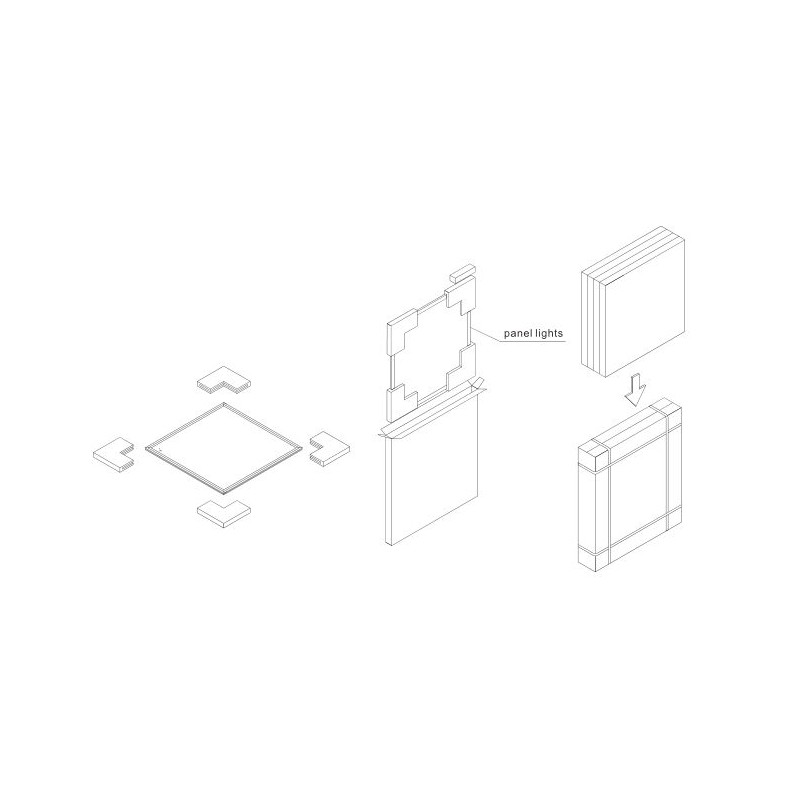

 Package:

Length

Outer Carton

W.G/Box

Quantity

W.G/ Ctn

595x595mm

690x200x650mm

3kg

5pcs/ Ctn

18Kg
