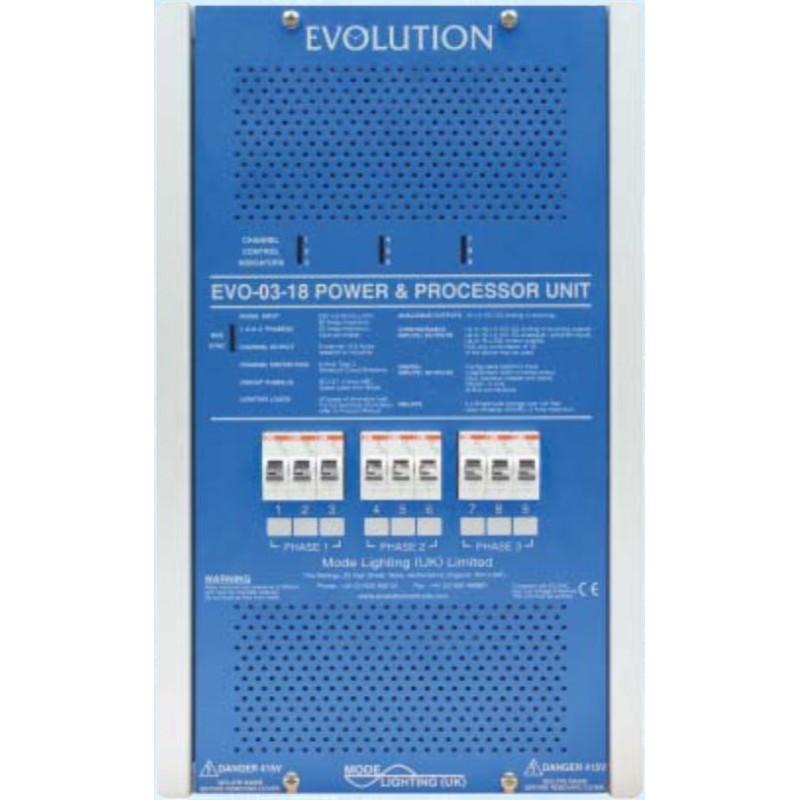

Mode EVO-03-18 Evolution Power & Processor Unit (18 Channels of 3 Amps, Inductive 3 Amps)

Reference: EVO-03-18

Condition: New product

Mode EVO-03-18 Evolution Power & Processor Unit (18 Channels of 3 Amps, Inductive 3 Amps)- EIGHTEEN CHANNELS of 3 amps resistive or inductive loads, user selectable for dimming or switching.

- FULLY CONFIGURABLE control operation.

- MULTI-FUNCTION DSI, DMX, M-BUS, RS232, 0/1-10 Volt and contact operation.

- ASTRONOMICAL TIME CLOCK built in.

More details

Share on Facebook!
Send to a friend

Send to a friend

Mode EVO-03-18 Evolution Power & Processor Unit (18 Channels of 3 Amps, Inductive 3 Amps)

Mode EVO-03-18 Evolution Power & Processor Unit (18 Channels of 3 Amps, Inductive 3 Amps)- EIGHTEEN CHANNELS of 3 amps resistive or inductive loads, user selectable for dimming or switching.

- FULLY CONFIGURABLE control operation.
- MULTI-FUNCTION DSI, DMX, M-BUS, RS232, 0/1-10 Volt and contact operation.

- ASTRONOMICAL TIME CLOCK built in.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Product Category Feature	Lighting Control Systems
Price Unit	Each
Condition	new
Availability	in stock
Brand	Mode
Manufacturer	Mode
Number of Dimmer Pack Channels	18 Channels
Dimmer Type	Leading Edge and 0-10V Optional
Current Per Channel	3 Amps Per Channel
Dimmer Control Type	Wired Control

Mode EVO-03-18 Evolution Power & Processor Unit (18 Channels of 3 Amps, Inductive 3 Amps)Mode EVO-03-18 Evolution Power & Processor Unit (18 Channels of 3 Amps, Inductive 3 Amps)- EIGHTEEN CHANNELS of 3 amps resistive or inductive loads, user selectable for dimming or switching.

- FULLY CONFIGURABLE control operation.

- MULTI-FUNCTION DSI, DMX, M-BUS, RS232, 0/1-10 Volt and contact operation.

- ASTRONOMICAL TIME CLOCK built in.

- INTELLIGENT SELF MONITORING power supply.

- SELF PROGRAM ON INSTALLATION facility for multi-unit applications.

- FACTORY SET DEFAULT operation for quick installation and testing.

- CIRCUIT PROTECTION 8 Amp Type C MCB for each pair of channels.

- EMERGENCY OUTPUTS (2 per phase) fixed live

- MCB protected outputs for maintained emergency supplies.

- SUPPLY INPUT 200-250 Volt 50-60 Hz. Single or Three phase options.

- COMPLIES with EC EMC and Low Voltage Directives (CE).

- MODE products are guaranteed for two years.

Evolution is a versatile and highly configurable architectural control system designed for both lighting and peripheral management. Evolution is uniquely adaptable, making it an ideal choice for use in a vast number of applications including modern smart homes, shopping centres, restaurants, hotels, cruise ships, boardrooms, hospitality suites and offices. System features include RS232, DMX, DSI and 0/1-10v controls. A built-in astronomical clock facilitates events triggered at any time of day, linked with sunrise - sunset calculations or by user definable seasons. Any input may control any output with the ability to provide operation of a sequence of events, for example, control of lighting, blind motors, commands to building management systems, colour changing etc. Unique features such as self-program-on-installation and distributed intelligence make the Evolution simple to install and maintain.

The Evolution power and processor unit builds on the quality and reliability of Mode product designs and offers high specification control and power management in a mechanically, electrically and thermo dynamically designed unit.

All Mode products are guaranteed for a two year period.
