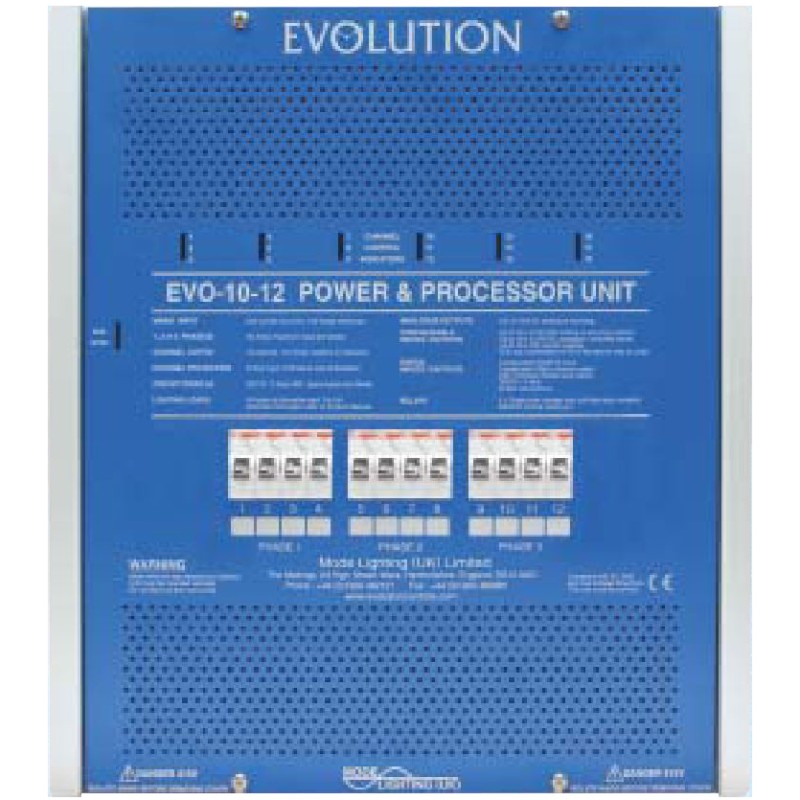

Mode EVO-10-12 Evolution Power & Processor Unit (12 Channels of 10 Amps, Inductive 9 Amps)

Reference: EVO-10-12

Condition: New product

Mode EVO-10-12 Evolution Power & Processor Unit (12 Channels of 10 Amps, Inductive 9 Amps)

Share on Facebook!
Send to a friend

Send to a friend

Mode EVO-10-12 Evolution Power & Processor Unit (12 Channels of 10 Amps, Inductive 9 Amps)

Mode EVO-10-12 Evolution Power & Processor Unit (12 Channels of 10 Amps, Inductive 9 Amps)

- TWELVE CHANNELS of 10 amps resistive or 9 amps inductive loads, user selectable for dimming or switching.
- FULLY CONFIGURABLE control operation.
- MULTI-FUNCTION DSI, DMX, M-BUS, RS232, 0/1-10 Volt and contact operation.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Full Description
Product Specification

Product Category Feature	Lighting Control Systems
Price Unit	Each
Condition	new
Availability	in stock
Brand	Mode
Manufacturer	Mode
Number of Dimmer Pack Channels	12 Channels
Dimmer Type	Leading Edge Dimmer
Current Per Channel	10 Amps Per Channel
Dimmer Control Type	Wired Control

Mode EVO-10-12 Evolution Power & Processor Unit (12 Channels of 10 Amps, Inductive 9 Amps)Mode EVO-10-12 Evolution Power & Processor Unit (12 Channels of 10 Amps, Inductive 9 Amps)

- TWELVE CHANNELS of 10 amps resistive or 9 amps inductive loads, user selectable for dimming or switching.
- FULLY CONFIGURABLE control operation.
- MULTI-FUNCTION DSI, DMX, M-BUS, RS232, 0/1-10 Volt and contact operation.
- ASTRONOMICAL TIME CLOCK built in.
- INTELLIGENT SELF MONITORING power supply.
- SELF PROGRAM ON INSTALLATION facility for multi-unit applications.
- FACTORY SET DEFAULT operation for quick installation and testing.
- CIRCUIT PROTECTION individual 10 Amp Type C MCB for each channel.
- EMERGENCY OUTPUTS (2 per phase) fixed live MCB protected outputs for maintained emergency supplies.
- SUPPLY INPUT 200-250 Volt 50-60 Hz.
- Single or Three phase options.
- COMPLIES with EC EMC and Low Voltage
- Directives (CE).
- MODE products are guaranteed for two years.
